Yamaha RX-V665 - Инструкция (Страница 17)

15
En
Connections
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
This unit has input and output terminals for respective input and output sources. You can reproduce sound and movies
from input sources selected with the front panel display or remote control.
Note
• Make sure that this unit and other components are unplugged from the AC wall outlets.
■ Audio and video player / Set-top box
y
• Input sources in parentheses are recommended to connect to the respective jacks. If a component is compatible with the SCENE function, you can switch
the input source to that component with a single key operation using the SCENE function (see page 22).
• You can change the name of the input source displayed on the front panel display or the OSD on the video monitor as necessary (see page 48).
• See page 50 on how to use ZONE2 OUT jacks.

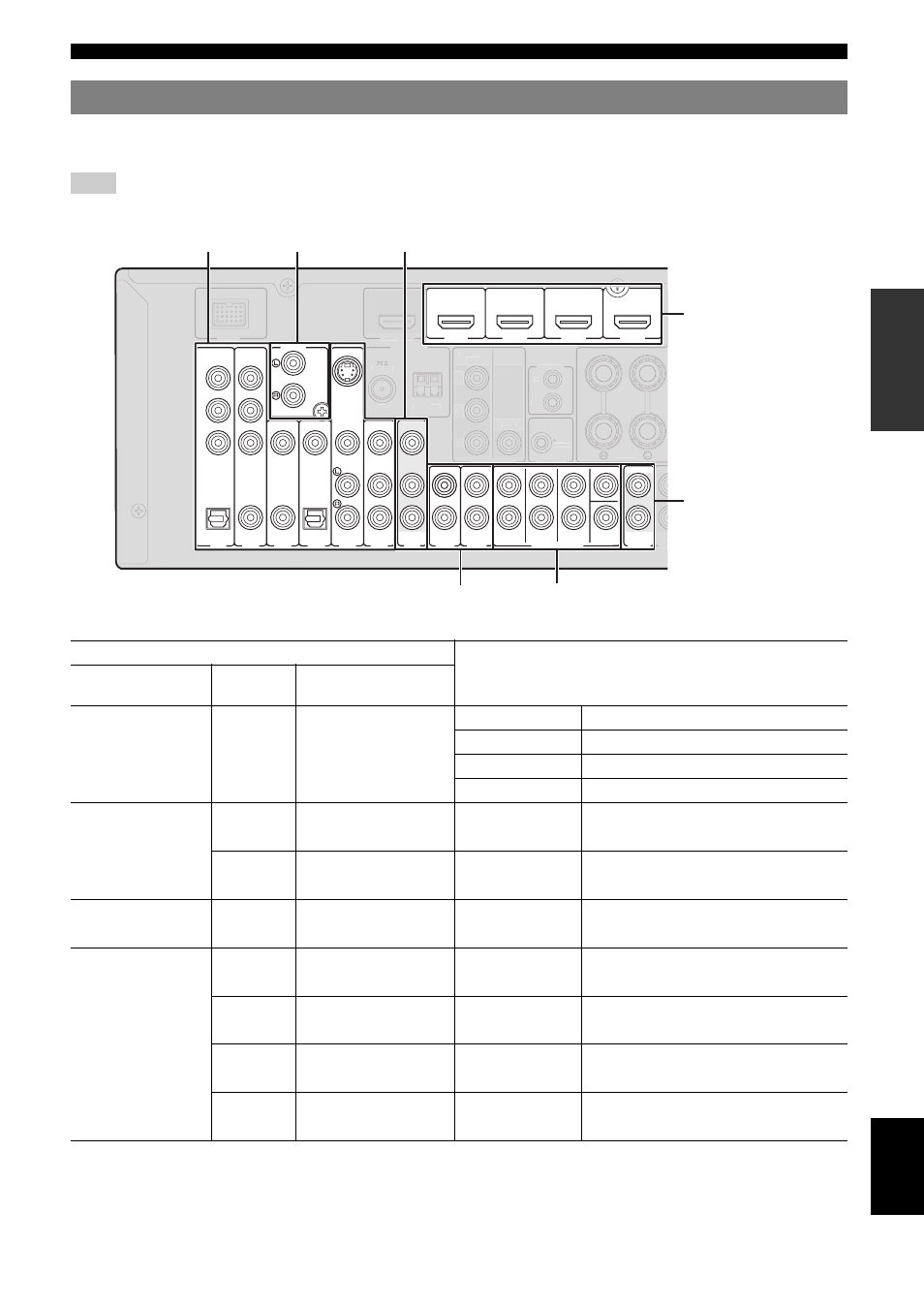

Connecting other components
Output jacks on the connected external component
Input sources/jacks of this unit
External
components
Signals Output jacks
External component
with HDMI output
Audio/Video HDMI output HDMI 1 (BD/DVD) HDMI 1
HDMI 2 HDMI 2
HDMI 3 HDMI 3
HDMI 4 HDMI 4
External component
with component video
output
Audio Optical digital output AV 1 (TV) OPTICAL
Video Component video output COMPONENT VIDEO
Audio Coaxial digital output AV 2 COAXIAL
Video Component video output COMPONENT VIDEO
External component
with S video output
Audio Analog audio output AV 5 AUDIO
Video S video output S VIDEO
External component
with composite video
output
Audio Coaxial digital output AV 3 (CD) COAXIAL
Video Composite output VIDEO
Audio Optical digital output AV 4 OPTICAL
Video Composite output VIDEO
Audio Analog audio output AV 5 AUDIO
Video Composite output VIDEO
Audio Analog audio output AV 6 AUDIO
Video Composite output VIDEO
PHONO
GND S VIDEO
COMPONENT
VIDEO
P R
P B
Y
OPTICAL
( TV )
AV 1 AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5 AV 6
AV
OUT AUDIO1 AUDIO2
FRONT SURROUND SUR.BACK SUBWOOFER
MULTI CH INPUT
AUDIO
OUT
VIDEO
HDMI 1
(BD/DVD)
HDMI 2 HDMI 3 HDMI 4
MONITOR OUT TRIGGER OUT
CENTER
DOCK
ZO
O
HDMI
ANTENNA
UNBAL.
FM GND AM
VIDEO
IN
OUT
MONITOR OUT TRIGGER OUT
12V
0.1A MAX.
FRONT
P R
P B
Y
REMOTE
COMPONENT
VIDEO
OUT
Audio / video input
(AV 1-6) Audio / video output (AV OUT)
Audio input (AUDIO 1-2)
HDMI input
(HDMI 1-4)
Audio output
(AUDIO OUT)
Multi channel audio input (MULTI CH)
Phono input
(PHONO)
