17
En
Connections
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION

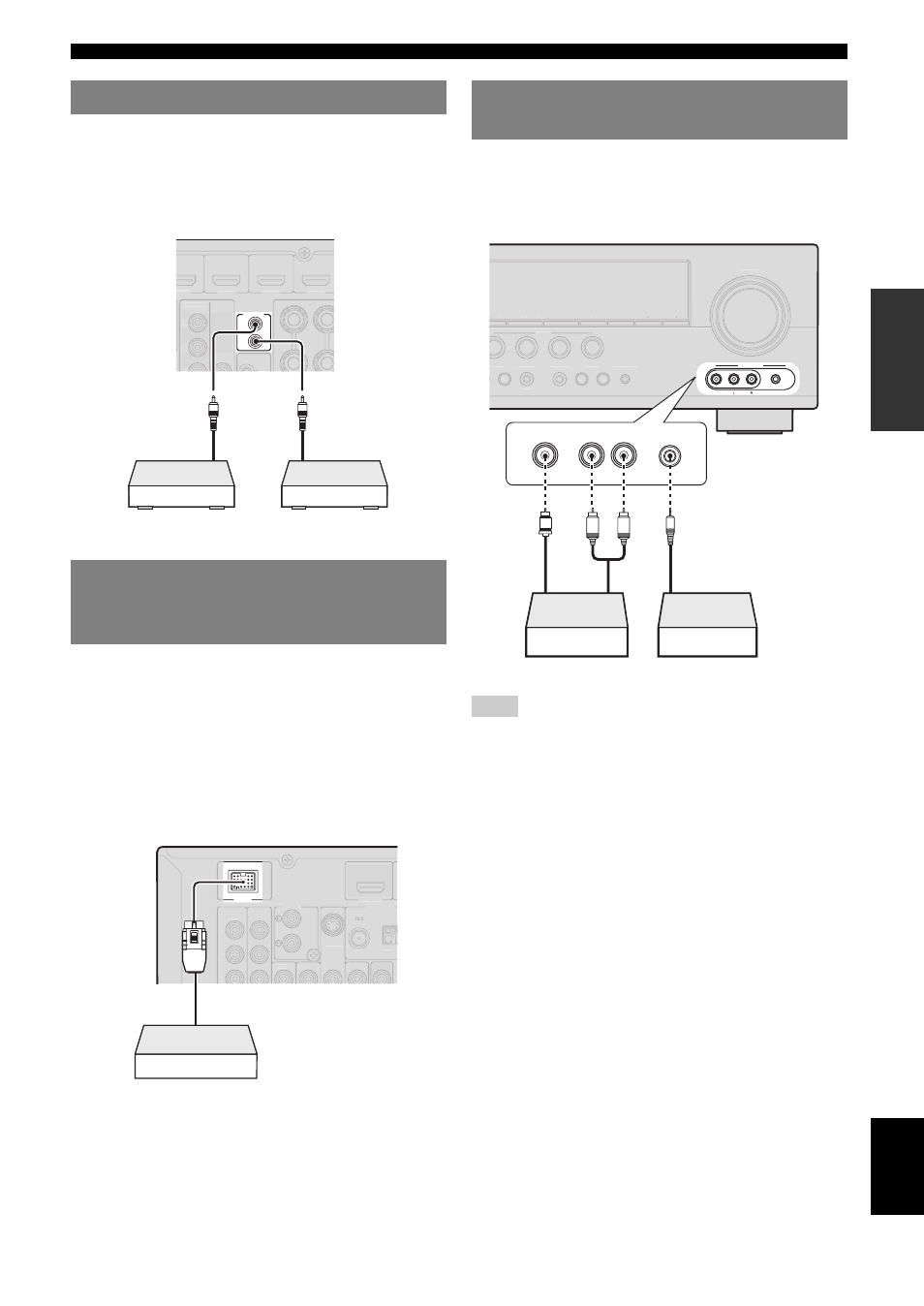

When the components are the Yamaha products and have
the capability of the transmission of the remote control
signals, connect the REMOTE IN and REMOTE OUT
jacks to the remote control input and output jack with the
monaural analog mini cable as follows.
This unit has the DOCK terminal, to which you can
connect a Yamaha iPod universal dock (YDS-11, sold
separately) or a Bluetooth wireless audio receiver (YBA-
10, sold separately). You can play an iPod or a Bluetooth
component with this unit by connecting it to the DOCK
terminal.
Use a dedicated cable for connection between the dock/
receiver and this unit.
Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit. Be sure to
turn down the volume of this unit and other components
before making connections.
Note
• When external components are connected both the PORTABLE jack and
AUDIO jack, sound input from the PORTABLE jack is output.
Using REMOTE IN/OUT jacks
Connecting a Yamaha iPod universal
dock or Bluetooth™ wireless audio
receiver
IN
OUT
REMOTE
HDMI 1
BD/DVD)
HDMI 2 HDMI 3 HDMI 4
VIDEO
12V
P R
P B
Y
COMPONENT
VIDEO
Remote
control out
Remote
control in
Infrared signal
receiver or Yamaha
component
Yamaha component
(CD or DVD player, etc.)
DOCK
PHONO
GND S VIDEO
COMPONENT
VIDEO
P R
P B
Y
VIDEO
HDMI
ANTENNA
UNBAL.
FM GND A
OUT
Yamaha iPod universal
dock/Bluetooth wireless
audio receiver
Using the VIDEO AUX jacks on the
front panel
VIDEO AUDIO PORTABLE
VIDEO AUX
h l TUNING FM AM
OGRAM STRAIGHT PURE DIRECT INPUT OPTIMIZER MIC
EMORY
VOLUME
EFFECT
PRESET l h l l l h h h
h l h
BD/DVD TV CD RADIO
SCENE
R L AUDIO VIDEO
V L R
PORTABLE
Game console/Camcorder Music player
Ana
log audio
outpu
t
Ana
log audio
outpu
t
Vi
deo output
