This unit has the following input and output jacks. Use jacks and cables appropriate for components that you are
connecting.
■ Audio jacks
■ Video jacks
■ Video/audio jacks
y
• We recommend that you use a commercially available 19-pin HDMI
cable no longer than 5 meters (16 feet) with the HDMI logo printed on it.
• When you connect this unit to a component with a DVI jack, an HDMI/
DVI-D cable is required.
• You can check error information on HDMI connections (see page 67).

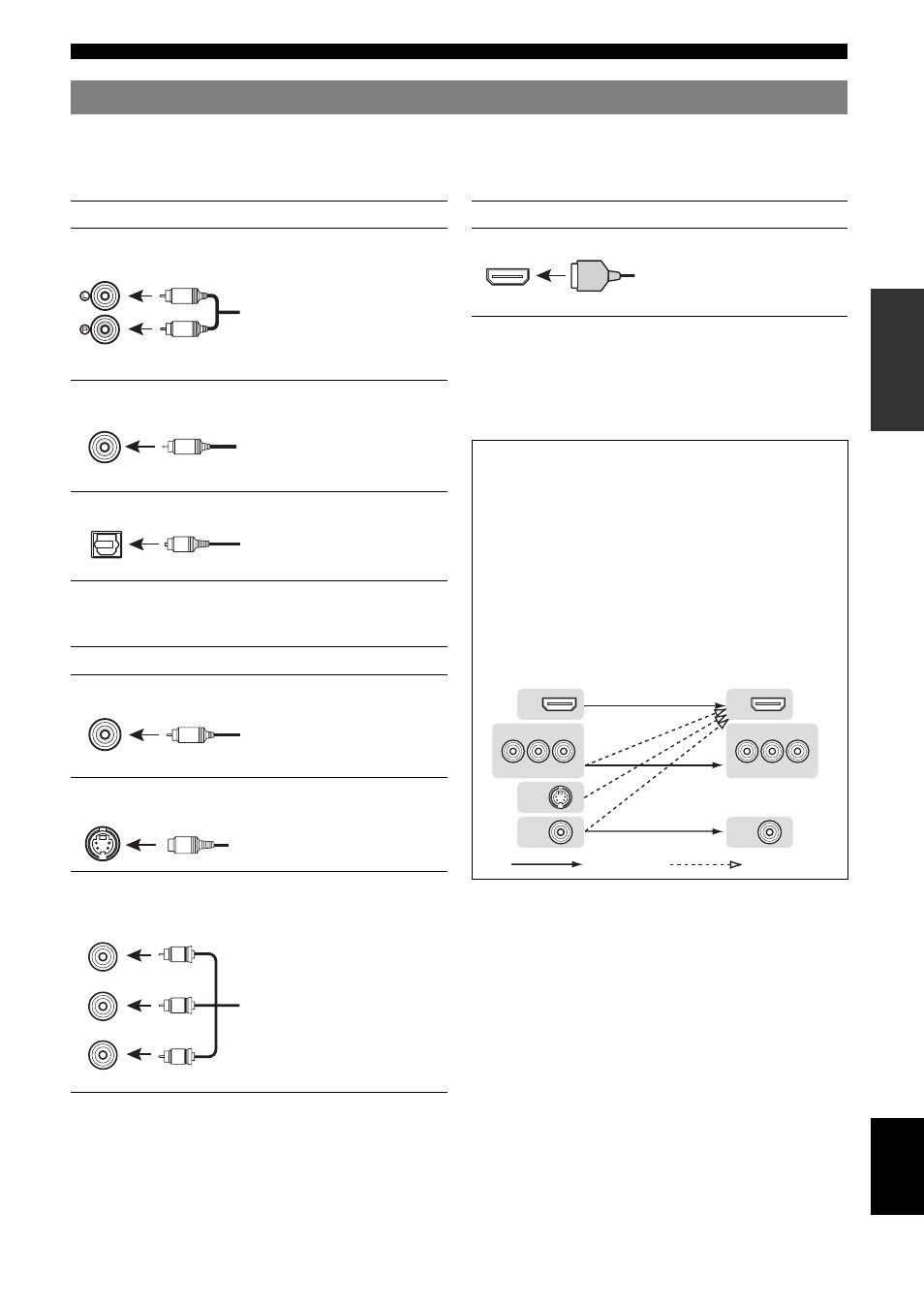

Information on jacks and cable plugs
Jack and cables
Description
AUDIO jacks
To transmit conventional analog
left and right audio signals. Use
stereo pin cables. Connect red
plugs to red jacks (R) and white
plugs to white jacks (L).
COAXIAL jacks
To transmit coaxial digital audio
signals. Use pin cables for digital
audio signals.
OPTICAL jacks
To transmit optical digital audio
signals. Use optical fiber cables for
optical digital audio signals.
Jack and cables
Description
VIDEO jacks
To transmit conventional
composite video signals. Use video
pin cables.
S VIDEO jack
To transmit S-video signals that
include luminance (Y) and
chrominance (C) components. Use
S-video cables.
COMPONENT VIDEO
jacks
To transmit component video
signals that include luminance (Y),
chrominance blue (P
B
) and
chrominance red (P
R
) components.
Use component video cables.
AUDIO
L
R
(white)
(red)
COAXIAL
C
(orange)
OPTICAL
O
VIDEO
V
(yellow)
S VIDEO
S
P
R
P
B
Y
COMPONENT
VIDEO
P
B
Y
P
R
(red)
(blue)
(green)
Jack and cables
Description
HDMI jacks
To transmit digital video and
digital audio signals. Use HDMI
cables.
A video signal input to this unit is output from the
output terminals in MONITOR OUT for the same kind
of signal as the input signal.
For example, if a VCR with a composite output signal
and a DVD player with a COMPONENT VIDEO
output signal are connected, connect both VIDEO jack
and COMPONENT VIDEO jack in MONITOR OUT
to the video monitor.
If an HDMI input compatible monitor is connected, this
unit automatically converts an analog signal that is
input from a video input terminal to a digital video
signal, and then output it from the HDMI OUT jack.
HDMI
HDMI
HDMI
VIDEO
COMPONENT VIDEO
Y
P
B
P
R
HDMI
VIDEO
COMPONENT VIDEO
Y
P
B
P
R
S VIDEO
Input
Output
Repeat
Converted
