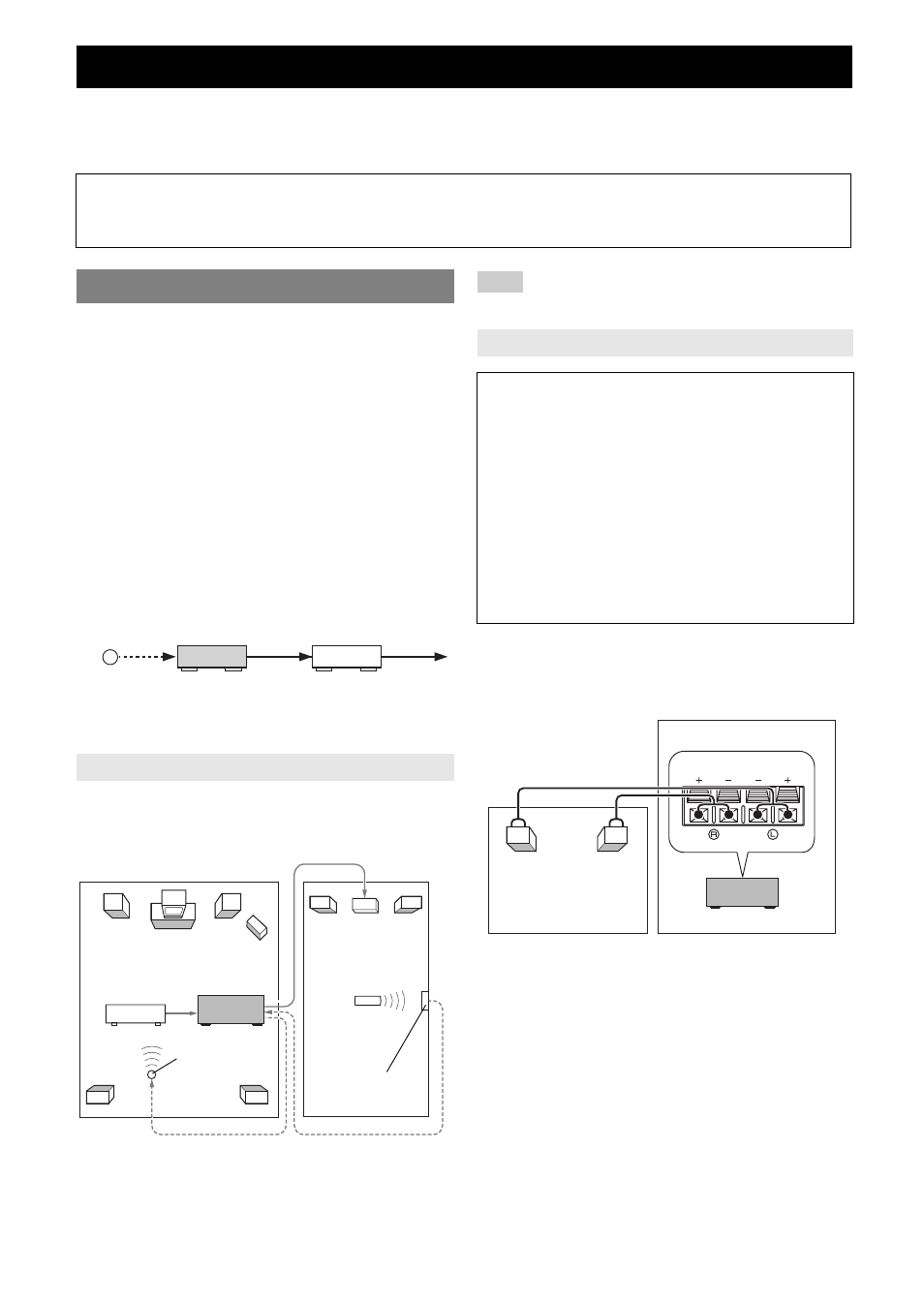

50
En
This unit allows you to configure a multi-zone audio system. The Zone2 feature allows you to set this unit to reproduce
separate input sources in the main zone and the second zone (Zone2). You can control this unit from the second zone
using the supplied remote control.
You need the following additional equipment to use the
multi-zone functions of this unit:
• An infrared signal receiver in the second zone.
• An infrared signal emitter in the main zone. This emitter
transmits infrared signals from the remote control to a
CD player or a DVD player, etc. in the main zone via
the infrared signal receiver in the second zone.
• An amplifier and speakers in the second zone.
y
• Since there are many possible ways to connect and use this unit in a
multi-zone configuration, we recommend that you consult with your
nearest authorized Yamaha dealer or service center about the Zone2
connections that best meet your requirements.
• Some Yamaha models can be directly connected to the REMOTE jacks
of this unit. You may not need use an infrared signal emitter for these
products. Up to 6 Yamaha components can be connected as shown below.
Connect the amplifier/receiver in the second zone and
other components to this unit as follows.
Note
• To avoid unexpected noise, DO NOT USE the Zone2 feature with CDs
encoded in DTS.
Connect the speakers in the second zone to the EXTRA
SP terminals and then set the “Extra SP Assign” to
“Zone2” (see page 44).
y
• You can use the speakers connected to EXTRA SP speaker terminals as
the front speaker system of another zone. Set “Extra SP Assign” to
“Zone2” (see page 44).
• When you use the internal amplifiers for the Zone2 speakers, you can
adjust the volume level and set the initial volume and maximum volume
of the Zone2 speakers (see page 49).
Using multi-zone configuration
Only analog signal can be sent to Zone2. If you want to output the sound from Zone2, connect an external component
to AV5-6 or AUDIO1-2 by analog connection. For example, if you want to output sound from an HDMI DVD player
in Zone2, you must connect the component to this unit by both HDMI and analog connections.
Connecting Zone2
Using the external amplifier
OUT IN
REMOTE
IN
REMOTE
OUT
REMOTE
This unit Yamaha
component
Infrared signal
receiver
To the REMOTE IN jack
Infrared signal
emitter
DVD player (etc.)
Amplifier
Remote control
Second zone
(Zone2)
Main zone
This unit
From the ZONE2 OUT jacks
Infrared signal
receiver
From the REMOTE OUT jack
Using the internal amplifier of this unit
Important safety notice
The EXTRA SP speaker terminals of this unit should
not be connected to a Passive Loudspeaker Selector
Box or more than one loudspeaker per channel.
Connection to a Passive Loudspeaker Selector Box or
multiple speakers per channel could create an
abnormally low impedance load resulting in amplifier
damage. See this owner’s manual for correct usage.
Compliance with minimum speaker impedance
information for all channels must be maintained at all
times. This information is found on the back panel of
your unit.
EXTRA SP ZONE2/PRESENCE
Second zone
(Zone2)
This unit
Main zone
