m /jm
2) «>*(№№) (^20)
1
)i§35):jit3iiEis*gMi8ig^iiw [DC IN]
i m ^ m x )
•
[CAMERA/OFF/
VCR]r^11^K[OFF]
50/eoHz) ’
The 2 Types of Power Supply
1) AC Adaptor O (supplied) to supply power from an AC
mains socket
2) Battery (supplied) (-> 20)

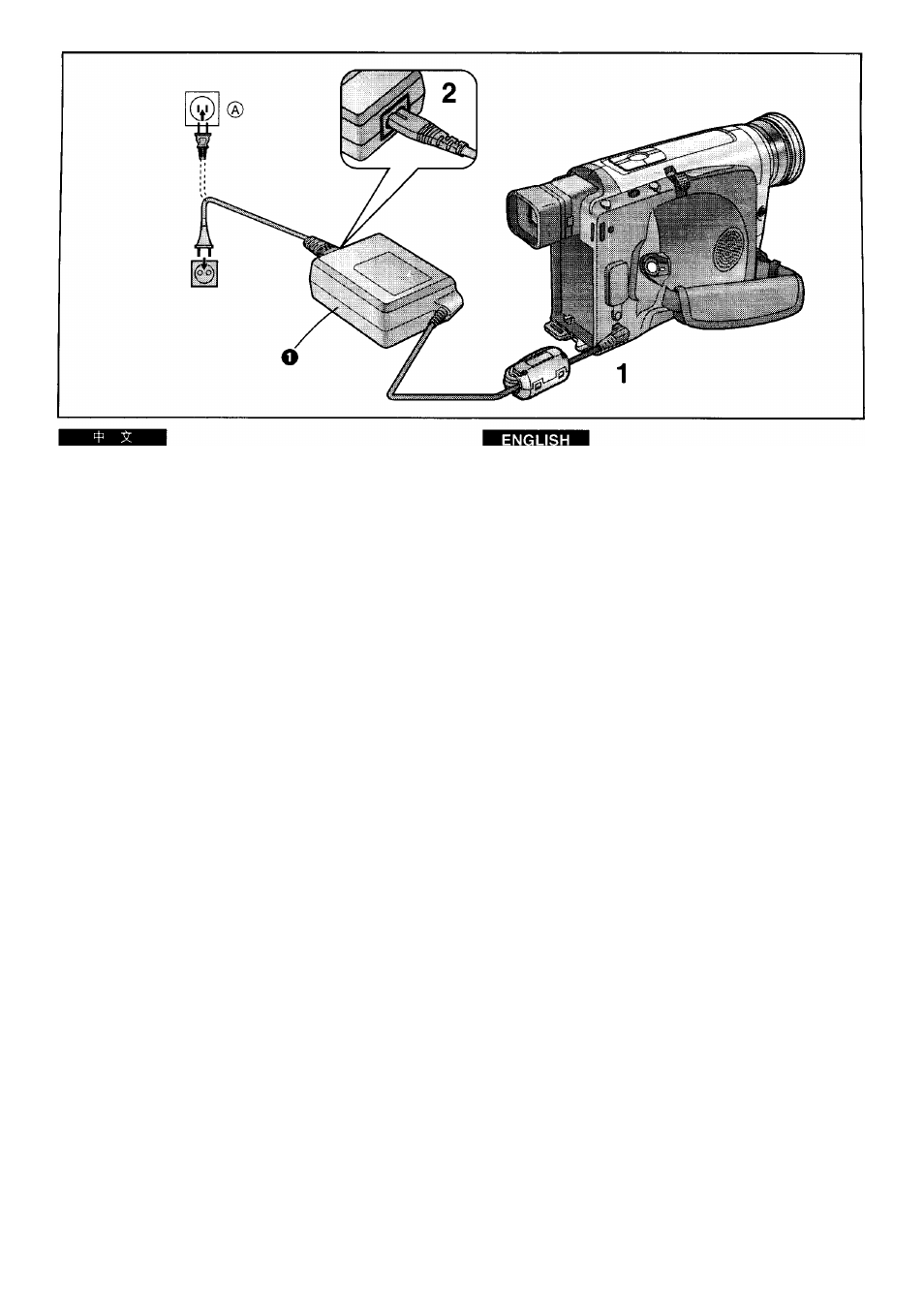

Supplying Power from an AC Mains Socket
1
Connect the AC Adaptor to the
[DC IN] Socket on the Movie Camera.
2
Connect the AC Mains Lead to the AC Adaptor
and to an AC mains socket.
•The AC Mains Lead’s outlet plug cannot be pushed fully
into the AC Adaptor socket.
A gap will remain as shown above.
® The People's Republic of China
•Before connecting the AC Adaptor to the Movie Camera, be
sure to set the [CAMERA/OFFA/CR] Switch to [OFF].
•The AC Adaptor features automatic universal voltage
adjustment (AC 110-240 V, 50/60 Hz), therefore, there is no
need for any manual voltage adjustment for use in other
countries.
18
