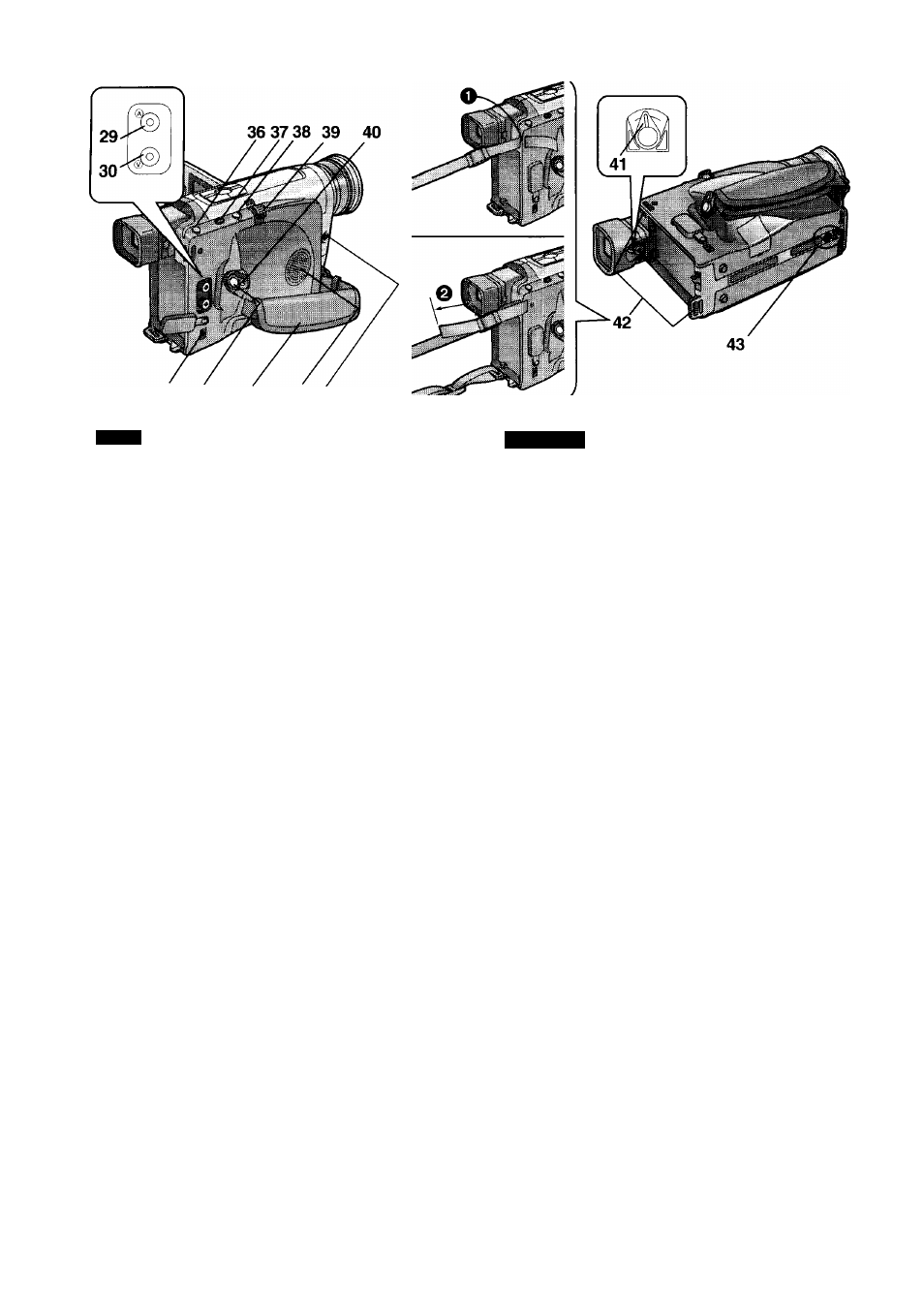

29 Audio Output Socket [®] (-» 68, 140)
30 Video Output Socket [®] (-► 68,140)
31 DC Input Socket [DC IN] (-» 18)
32 Recording Start/Stop Button (-f 50)
33 Grip Belt (-» 44)
34 Speaker 58)
35 Personal Computer Interface Terminal [TO PC] (-> 140)
36 Cassette Eject Button [A EJECT] (-» 40)
37 Date/Time/Title Button [DATE/TITLE]
(-»48,124,126)
38 Recording Start/Stop Button [REC] (-» 50, 52)
Snapshot Recording Button [SNAP] (-» 70)
39 Zoom Lever [WH'] (-► 56, 80)
Volume Adjustment Lever [—VOL+] {•¥ 58)
40 Off/On Mode Selector Switch [CAMERA/OFF/VCR]
(-» 44, 50, 58,68)
41 Eyepiece Corrector Lever (-» 44)
42 Shoulder Strap Holders
Pull one end of the Shoulder Strap through the Shoulder
Strap Holder
O-
Fold the end of the Shoulder Strap back, pull it through the
Shoulder Strap Length Adjuster.
Pull it out more than 2 cm © from the Shoulder Strap Length
Adjuster so that it cannot slip off.
43 Tripod Receptacle
