To prevent damage
WARNING
! Use speakers over 50 W (output value)
and between 4
W to 8 W (impedance value).
Do not use 1
W to 3 W speakers for this
unit.
! The black lead is earth. Please earth this
lead separately from the earth of high-cur-
rent products such as power amps. Do not
earth more than one product together
with the earth from another product. For
example, you must separately earth any
amp unit away from the earth of this navi-
gation system. Connecting earths to-
gether can cause a fire and/or damage the
products if their earths became detached.
! When replacing the fuse, be sure to only
use a fuse of the rating prescribed on this
product.
! When disconnecting a connector, pull the
connector itself. Do not pull the lead, as
you may pull it out of the connector.

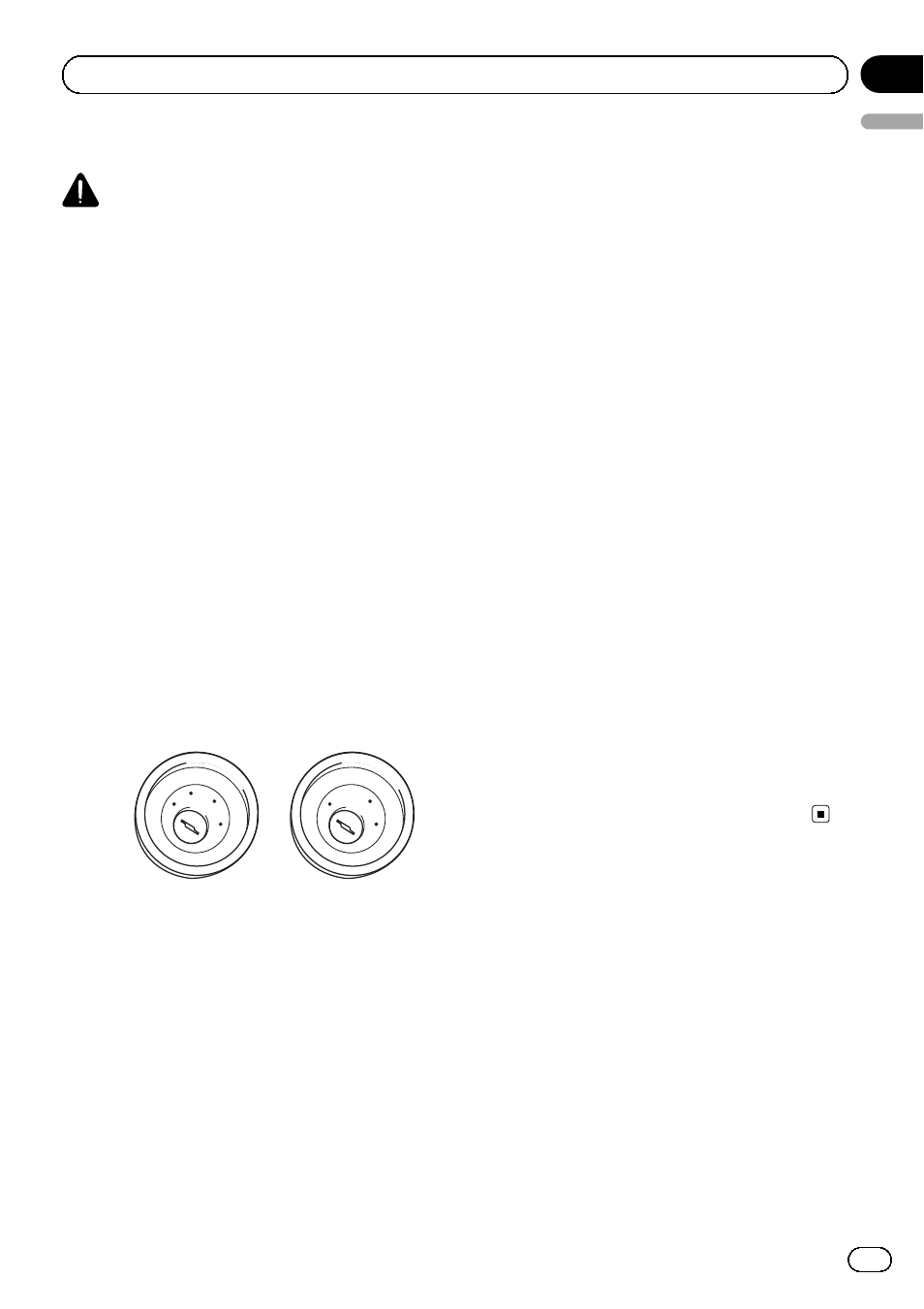

! This product cannot be installed in a vehi-
cle without ACC (accessory) position on
the ignition switch.
ACC ON
S
T
A
R
T
O
FF
ON
S
T
A
R
T
O
FF
ACC position No ACC position
! To avoid short-circuiting, cover the discon-
nected lead with insulating tape. It is espe-
cially important to insulate all unused
speaker leads, which if left uncovered may
cause a short circuit.
! Attach the connectors of the same colour
to the corresponding coloured port, i.e.,
blue connector to the blue port, black to
black, etc.
! Refer to the owner’s manual for details on
connecting the power amp and other units,
then make connections accordingly.
! Since a unique BPTL circuit is employed,
do not directly earth the
* side of the
speaker lead or connect the
* side of an-
other side of the speaker lead together. Be
sure to connect the
* side of the speaker
lead to the
* side of the speaker lead on
this navigation system.
! If the RCA pin jack on this product will not
be used, do not remove the caps attached
to the end of the connector.
Notice for the blue/white lead
! When the ignition switch is turned on (ACC
ON), a control signal is output through the
blue/white lead. Connect to an external
power amp
’s system remote control term-
inal, the auto-aerial relay control terminal,
or the aerial booster power control terminal
(max. 300 mA 12 V DC). The control signal
is output through the blue/white lead, even
if the audio source is switched off.
! Be sure not to use this lead as the power
supply lead for the external power amps.
Such connection could cause excessive
current drain and malfunction.
! Be sure not to use this lead as the power
supply lead for the auto-aerial or aerial
booster. Such connection could cause ex-
cessive current drain and malfunction.
Engb
5
English
Section
02 Connecting the system
