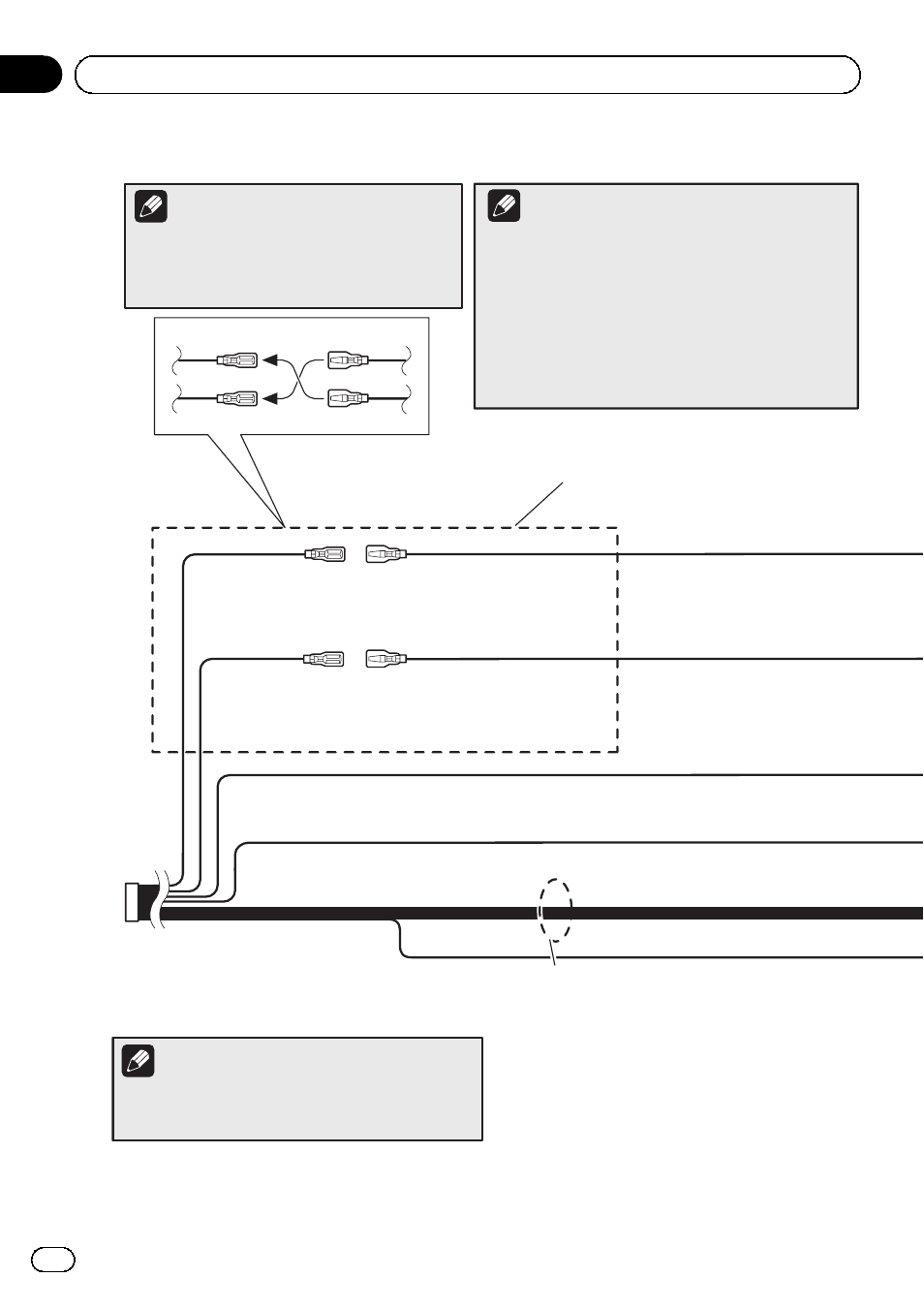

Connecting the power cord (1)

ISO connector

*1

*3

*2

*4

Speaker leads

White:

Front left

White/black: Front left

Grey:

Front right

Grey/black:

Front right

Green:

Rear left

 or Subwoofer  (*5)

Green/black: Rear left

 or Subwoofer  (*5)

Violet:

Rear right

 or Subwoofer  (*5)

Violet/black: Rear right

 or Subwoofer  (*5)

Depending on the types of vehicles, the
function of *2 and *4 may be different. In this
case, be sure to connect *1 to *4 and *3 to *2
as shown in the figure.

Connect leads of the
same colour to each other.

Yellow (*2)
Back-up
(or accessory)

Red (*4)
Accessory
(or back-up)

Yellow (*1)
To terminal supplied with
power regardless of ignition
switch position.

Red (*3)
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.

Orange/white
To lighting switch terminal.

Black (earth)
To vehicle (metal) body.

Note

Notes

· When a subwoofer (*5) is connected to this

navigation system instead of a rear speaker, change
the rear output setting in the initial setting. (Refer to
Operation Manual.) The subwoofer output of this
navigation system is monaural.

· When using a subwoofer of 70 W (2

Ω), be sure to

connect with violet and violet/black leads of this
navigation system. Do not connect anything with
green and green/black leads.

In some vehicles, the ISO connector may be divided
into two. In this case, be sure to connect to both
connectors.

Note

Engb
