When connecting a rear
view camera
When this product is used with a rear view
camera, it is possible to automatically switch
from the video to rear view image when the
gearstick is moved to REVERSE (R).
Rear
View mode also allows you to check what is
behind you while driving.
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR
IMAGE REAR VIEW CAMERA. OTHER USE MAY
RESULT IN INJURY OR DAMAGE.
CAUTION
! The screen image may appear reversed.
! The rear view camera is used as an aid to
keep an eye on trailers, or backing into a tight
parking spot. Do not use this function for en-
tertainment purposes.
! Objects in rear view may appear closer or
more distant than in reality.
! Please note that the image area shown by the
rear view camera may differ slightly when full-
screen images are displayed when backing
and when checking the rear of the vehicle
while moving forward.

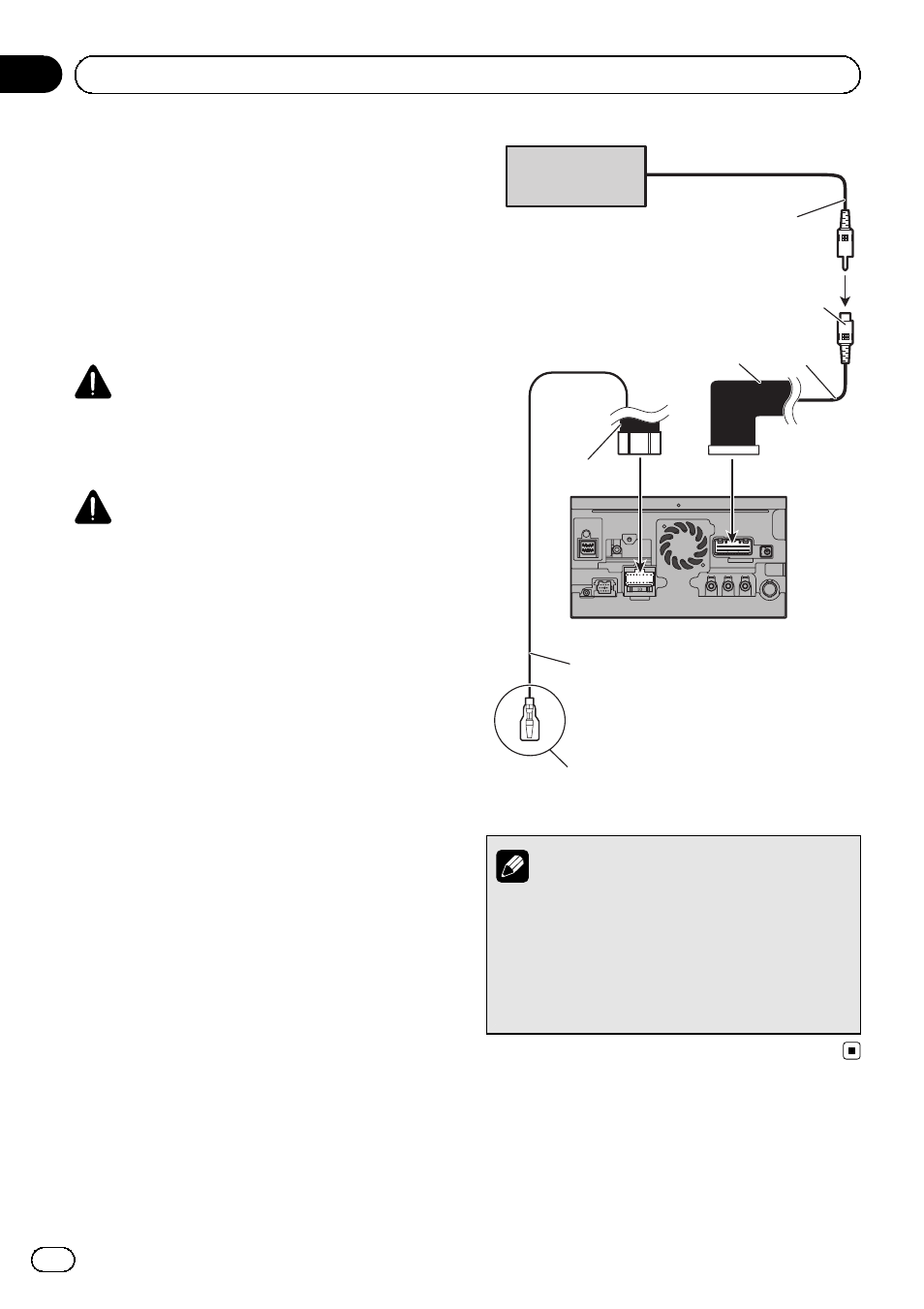

The navigation unit
20 cm
(e.g. ND-BC4)
(sold separately)
Rear view camera
To video output
RCA cable
Brown
(REAR VIEW CAMERA IN)
RCA connector
Power cord
(REVERSE GEAR SIGNAL INPUT)
Violet/white
For more details about the wiring, refer to Connecting
the power cord (2) on page 12.
Notes
! This mode is available when the rear view
camera setting is set to
“On”. (For details,
refer to Operation Manual.)
! Connect the navigation system to the rear
view camera only. Do not connect to any
other equipment.
Engb
16
Section
02 Connecting the system
