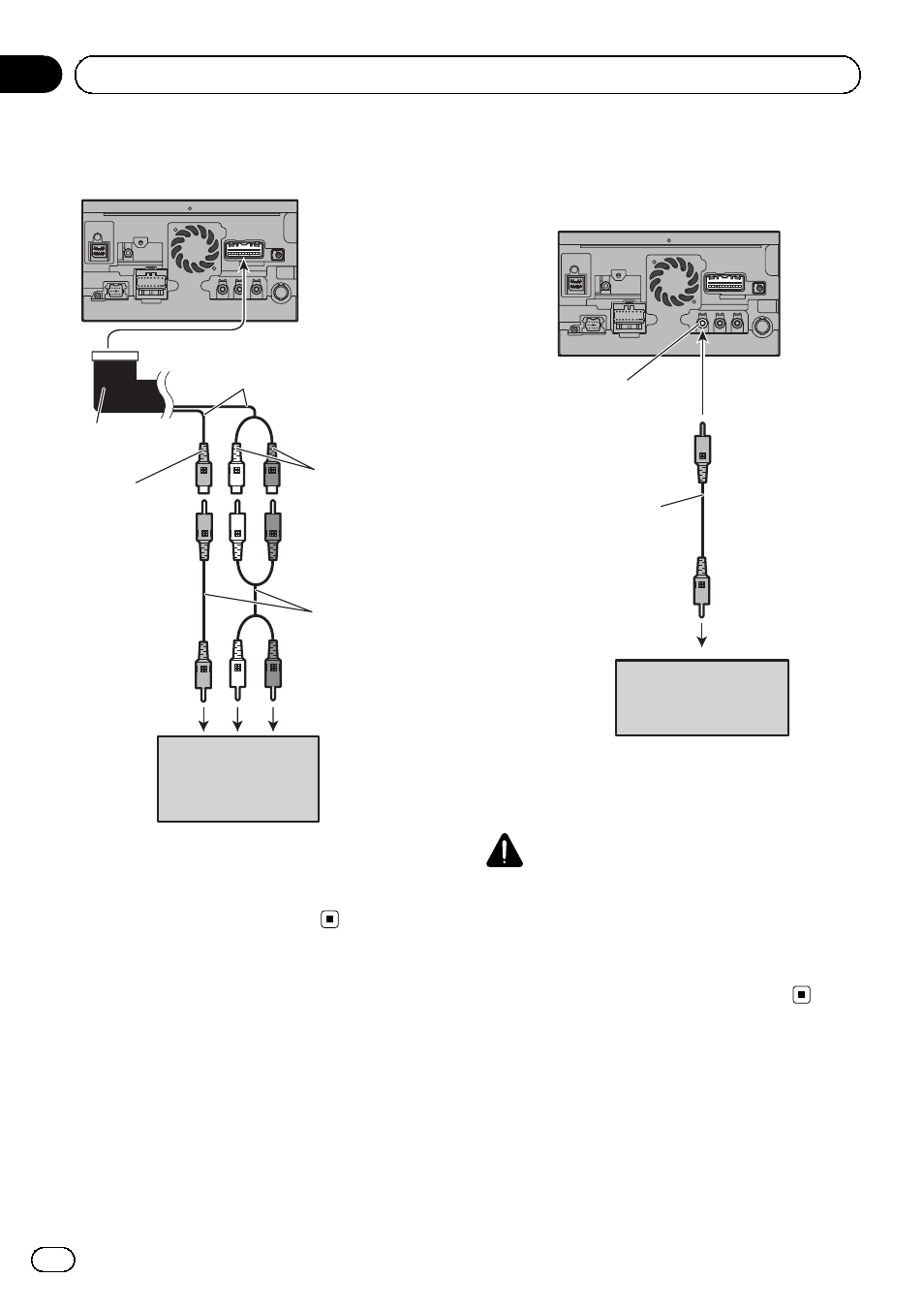

Using an AV input (AV2)
To audio outputs
Yellow
(VIDEO INPUT)
RCA connector
Red, white
(AUDIO INPUT)
RCA cables
(sold separately)
To video output
The navigation unit
External video
component
(sold separately)
20 cm
! You must set “AV2 Input” in “AV System
Settings
” to “Video” when connecting the
external video component. (For details,
refer to Operation Manual.)
When connecting the rear
display
The navigation unit
Rear display with
RCA input jacks
Yellow
(VOUT)
RCA cable
(sold separately)
To video input
When using a rear display
connected to rear video output
WARNING
NEVER install the rear display in a location
that enables the driver to watch the video
source while driving.
This navigation system
’s rear video output is for
connection of a display to enable passengers in
the rear seats to watch the video source.
Engb
18
Section
02
Connecting the system
