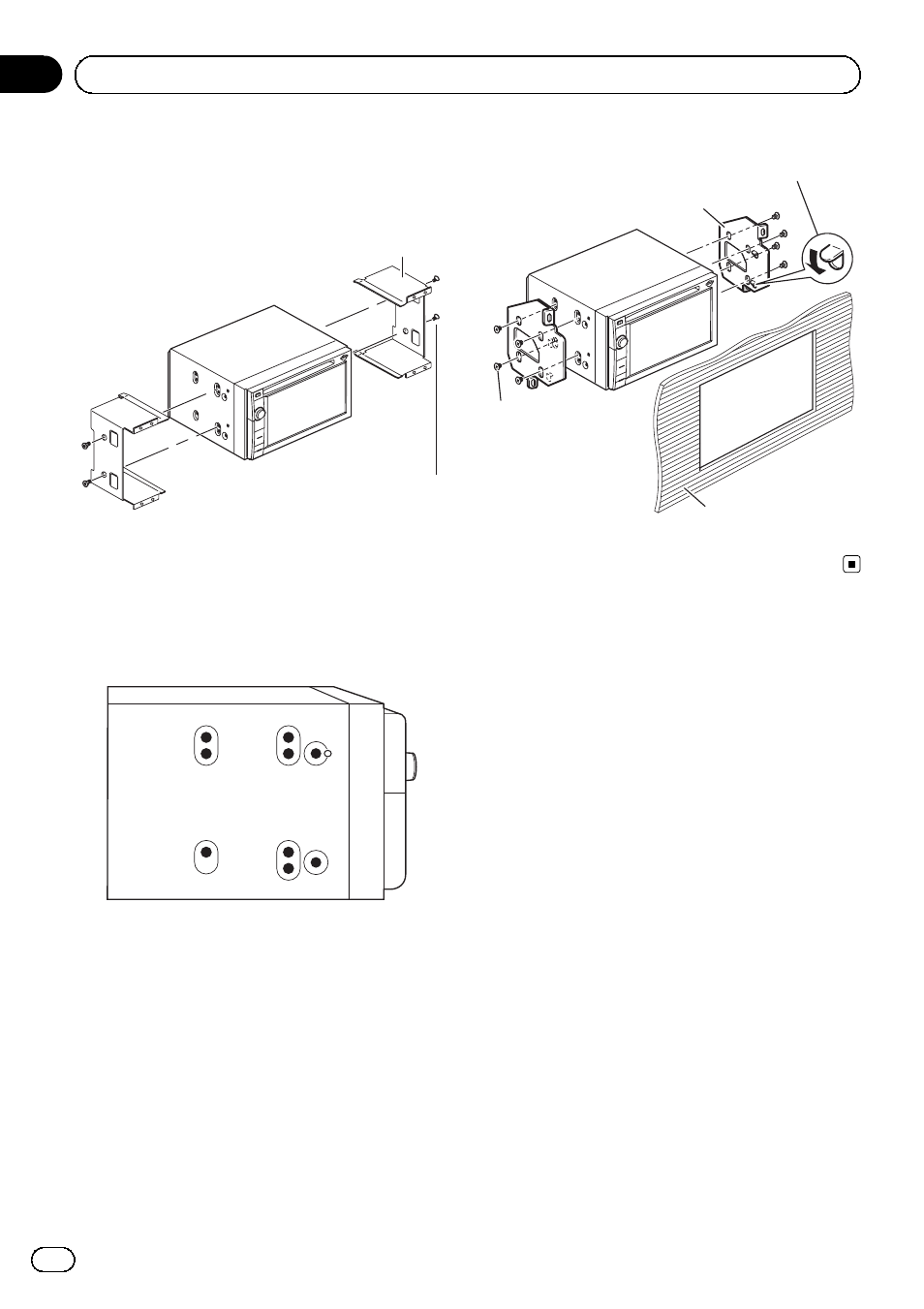

Installation using the screw holes
on the side of the navigation unit
1
Remove the side brackets.
Side bracket
Screw for fixing the side bracket
(5 mm
9 mm)
2
Fastening the navigation unit to the
factory radio-mounting bracket.
Position the navigation unit so that its screw
holes are aligned with the screw holes of the
bracket, and tighten the screws at three or
four locations on each side.
If the pawl interferes with installation,
you may bend it down out of the way.
Dashboard or console
Binding screw or
flush surface screw
Be sure to use the
screws supplied
with this navigation
system.
Factory radio-mounting bracket
Engb
24
Section
03
Installation
