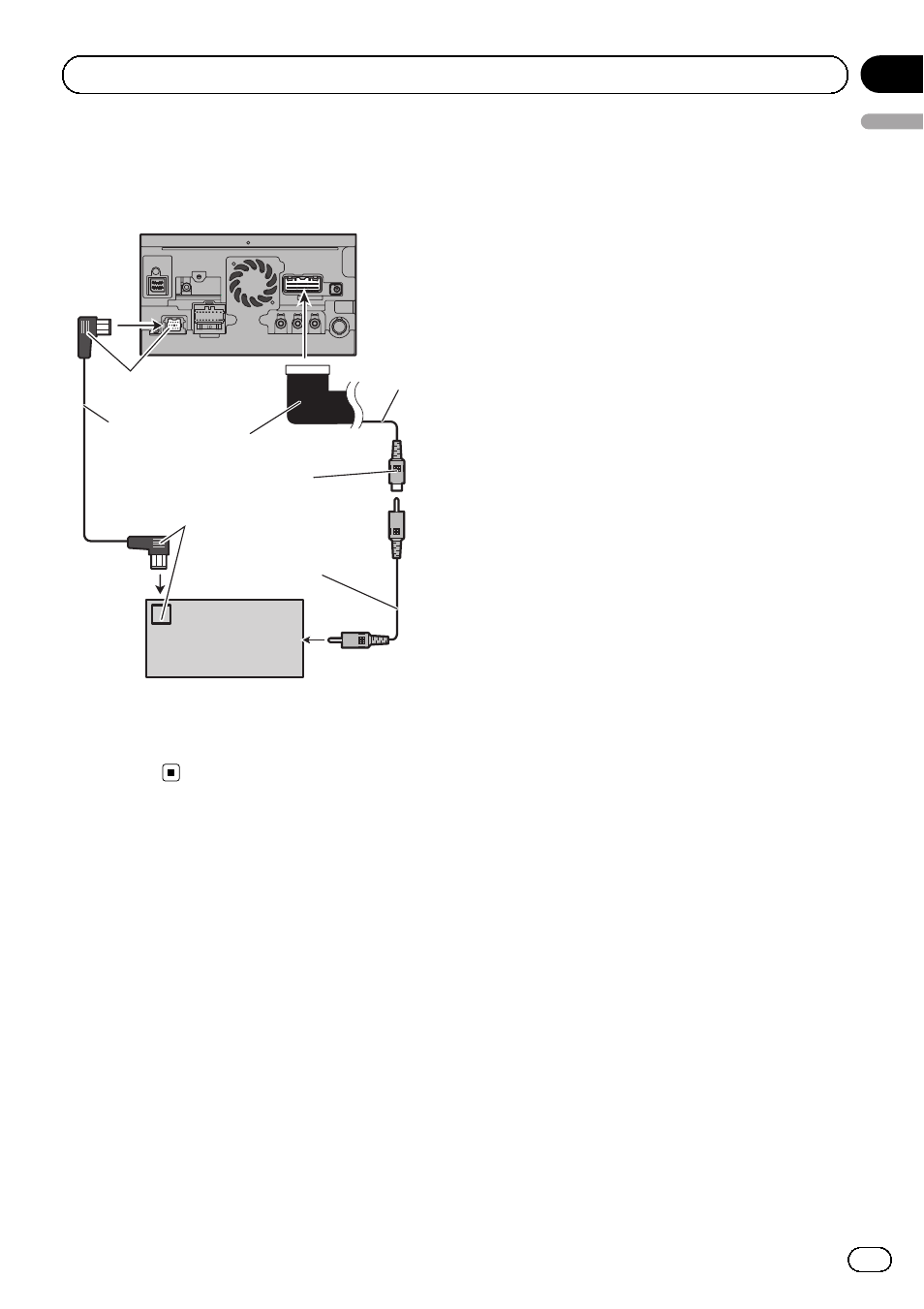

When connecting the external
unit featuring video source
The navigation unit
Blue
Pioneer external unit
(sold separately)
Yellow
(VIDEO INPUT)
To video output
Black
RCA connector
IP-BUS cable
(sold separately)
RCA cable
(sold separately)
20 cm
To IP-BUS
output
! You must set “AV2 Input” in “AV System
Settings
” to “EXT” when connecting the ex-
ternal unit. (For details, refer to Operation
Manual.)
Engb
19
English
Section
02
Connecting the system
