 Mounting the camera
[Convertible camera AW-E350/E650/E655/E750/E860 ]
When mounting the camera, take sufficient care to ensure that the camera will not come off or fall down.
 Mount the lens onto the convertible camera.
(Before mounting a large lens, consult with your dealer.)
 Mount the convertible camera after aligning it with the guide pins.
Use a tool to tighten up the mounting screws so that they are securely tightened.
<Recommended lenses>
Camera Lens
AW-E50
AW-LZ16MD55P
AW-LZ10MD6
AW-E650
AW-E655 AW-LZ16MD7P
AW-LZ16AF7G
AW-E750
AW-E860
AW-LZ17MD9AG
 Be absolutely sure to use a screwdriver or other tool to tighten the two camera mounting screws
so that the camera is secured firmly.
 After the camera has been mounted, check that there is no play in the way it was mounted.
Installation

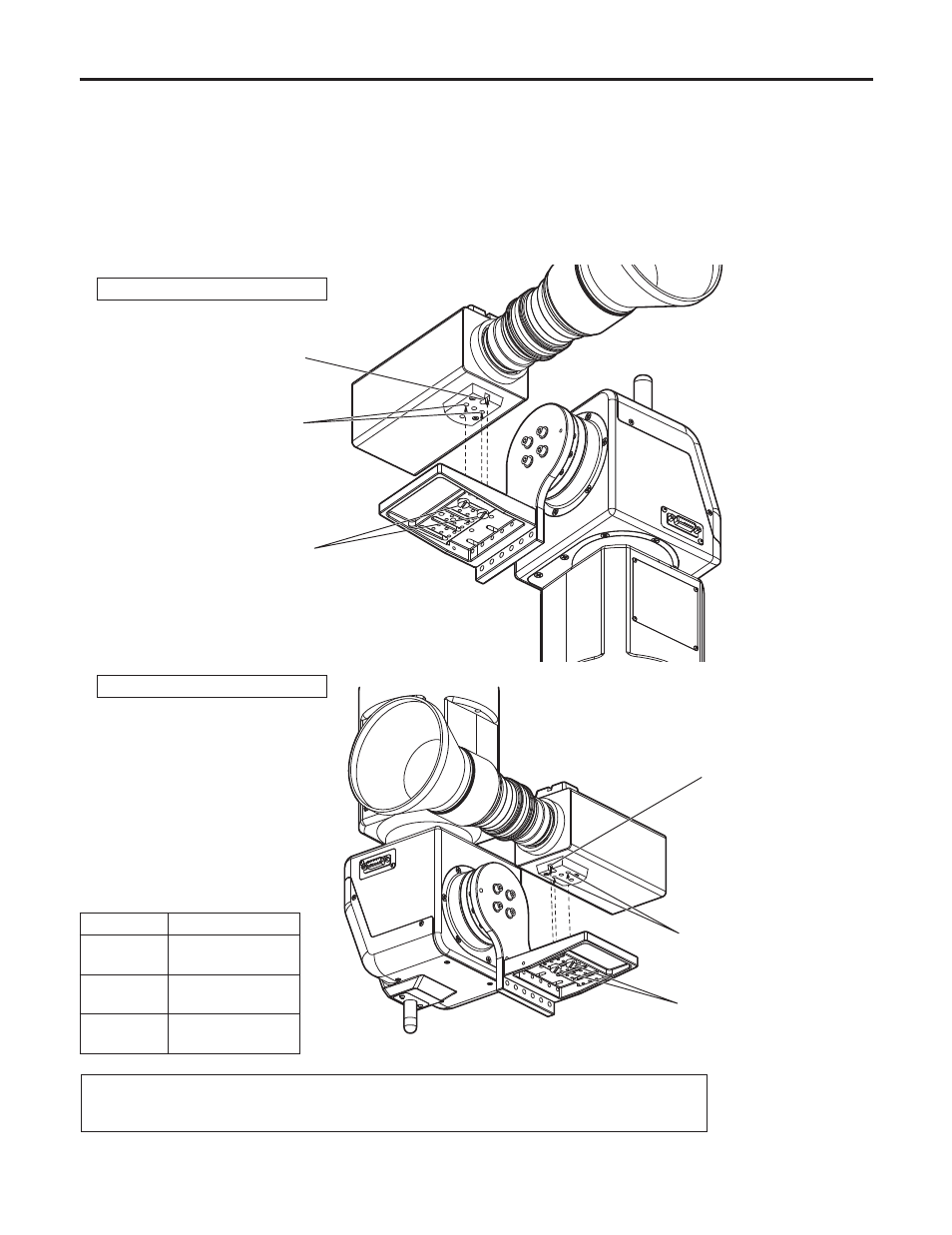

For a stand-alone installation
Set the guide pin.
Mount the camera with the
mounting screws.
Mounting screws
For installation on the ceiling
Set the guide pin.
Mount the camera with
the mounting screws.
Mounting screws
