 Concerning the balance of the installed unit
The weight balance may be impaired when the pan-tilt head is used in combination with a camera and long lens.
Follow steps  to  below to check the balance, and then mount the camera. If, after this, the balance is still impaired and
operations cannot be performed smoothly, it means that the balance must be adjusted. Consult your dealer.
Installation
How to obtain the balance
 Check the centre of gravity position with the camera and lens set up on the pan-tilt head.
 The less the deviation between the centre of gravity position and the head’s centre of rotation, the more the balance is
attained. Check these positions when mounting the pan-tilt head.
 If the proper balance cannot be attained in steps  and , re-attach the camera mounting base and rotary arm to shift the
position of the entire camera so that the centre of gravity position is brought closer to the head’s centre of rotation.
When doing this, bear in mind the following points.
(1) Depending on the specifications of the lens and its installation direction, the protruding parts of the lens or grip area may
come into contact with the rotary arm or other parts, in which case do not re-attach the camera mounting base and rotary
arm.
() If the protrusion of the connectors from the camera makes contact with the mounting surface of the pan-tilt head, insert a
spacer as described on the next page between the pan-tilt head and mounting surface or set the limiters.
() Be absolutely sure to secure the camera mounting base and rotary arm firmly using the three screws.

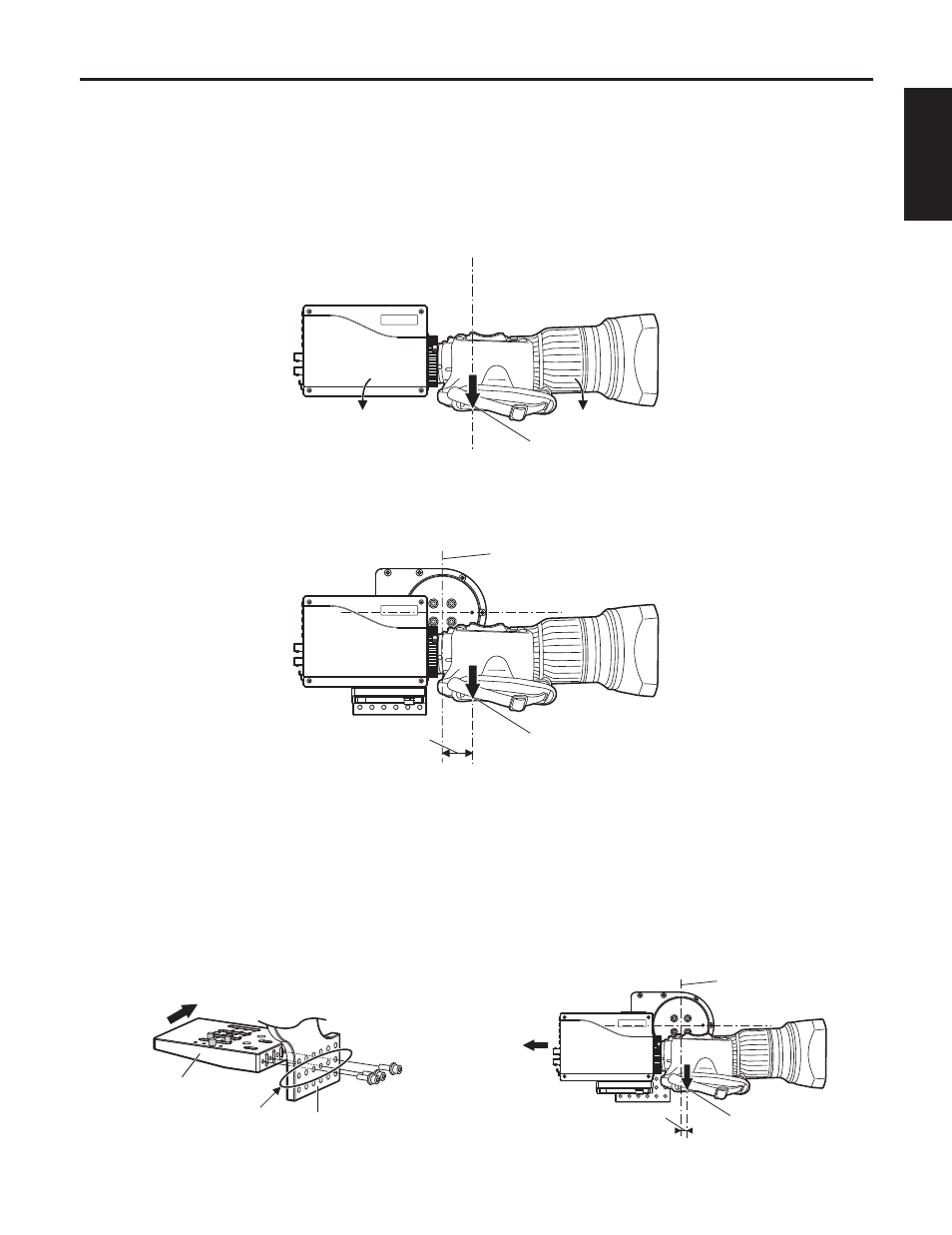

Position where the balance between left and
right is attained (centre of gravity)
Head’s centre of rotation
Centre of gravity position with camera and
lens set up
Deviation between centre of gravity position
and the head’s centre of rotation
Re-attach the camera
mounting base to a
position further back.
Camera mounting base
Rotary arm
Head’s centre of rotation
Centre of gravity position
with camera and lens set up
Minimize the deviation between
the centre of gravity position
and the head’s centre of
rotation here.
