Installation
 Procedure for changing the settings of the CPU circuit board switches
Follow the steps below to change the settings of the CPU circuit board switches.

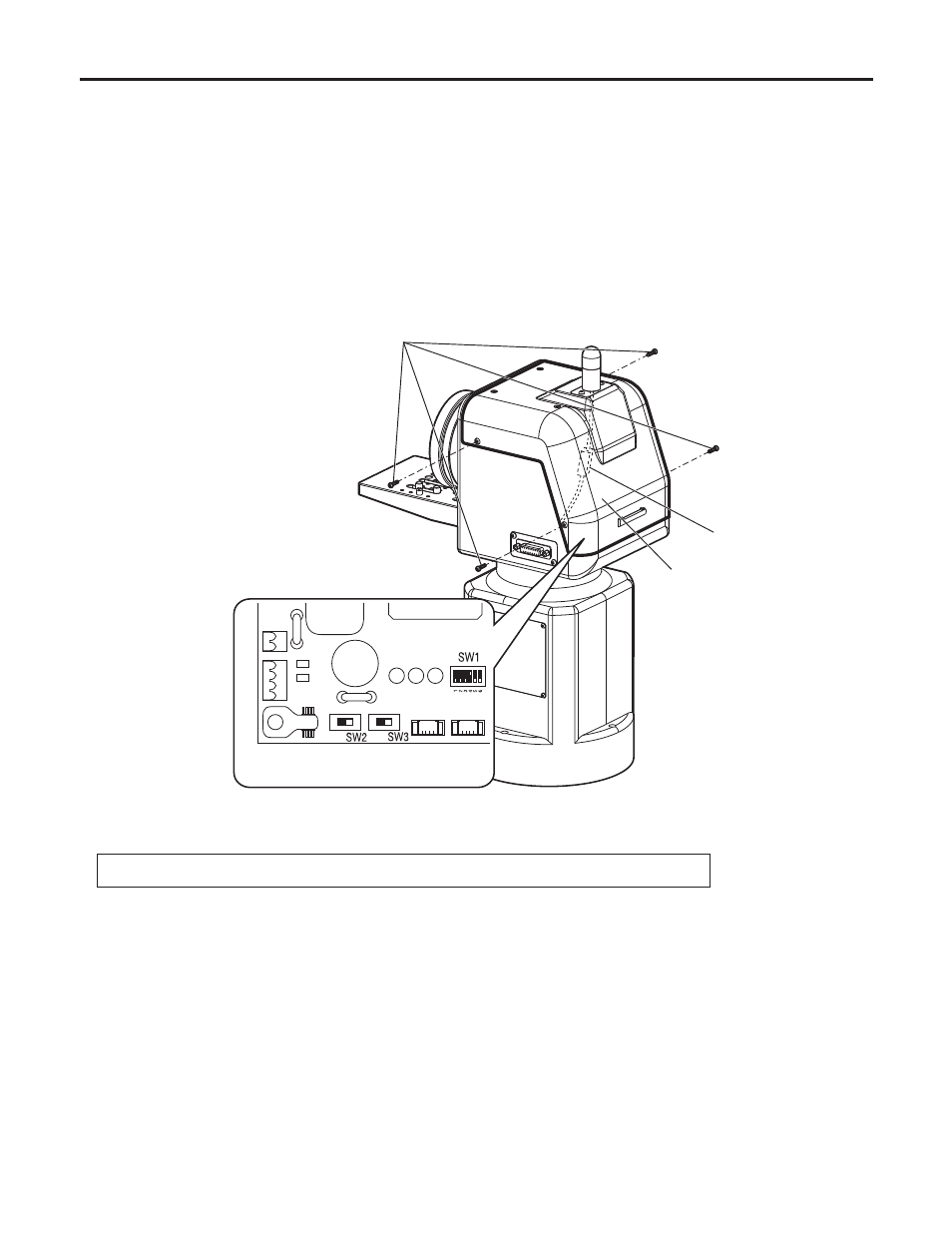

 Remove the four screws, and gently remove the housing case.
 Disconnect the tally cable connector.
 Set the switches on the CPU circuit board.
After you have performed the settings, connect the tally cable connector, and then return the housing case to its original
position, and attach it using the screws. (Take care to ensure that the wiring is not pinched.)
Note  Be absolutely sure to turn off the power before changing the position of this switch.
Tally cable connector
Magnification of the CPU circuit board
Housing case
Four screws
