8 (E)
ENGLISH

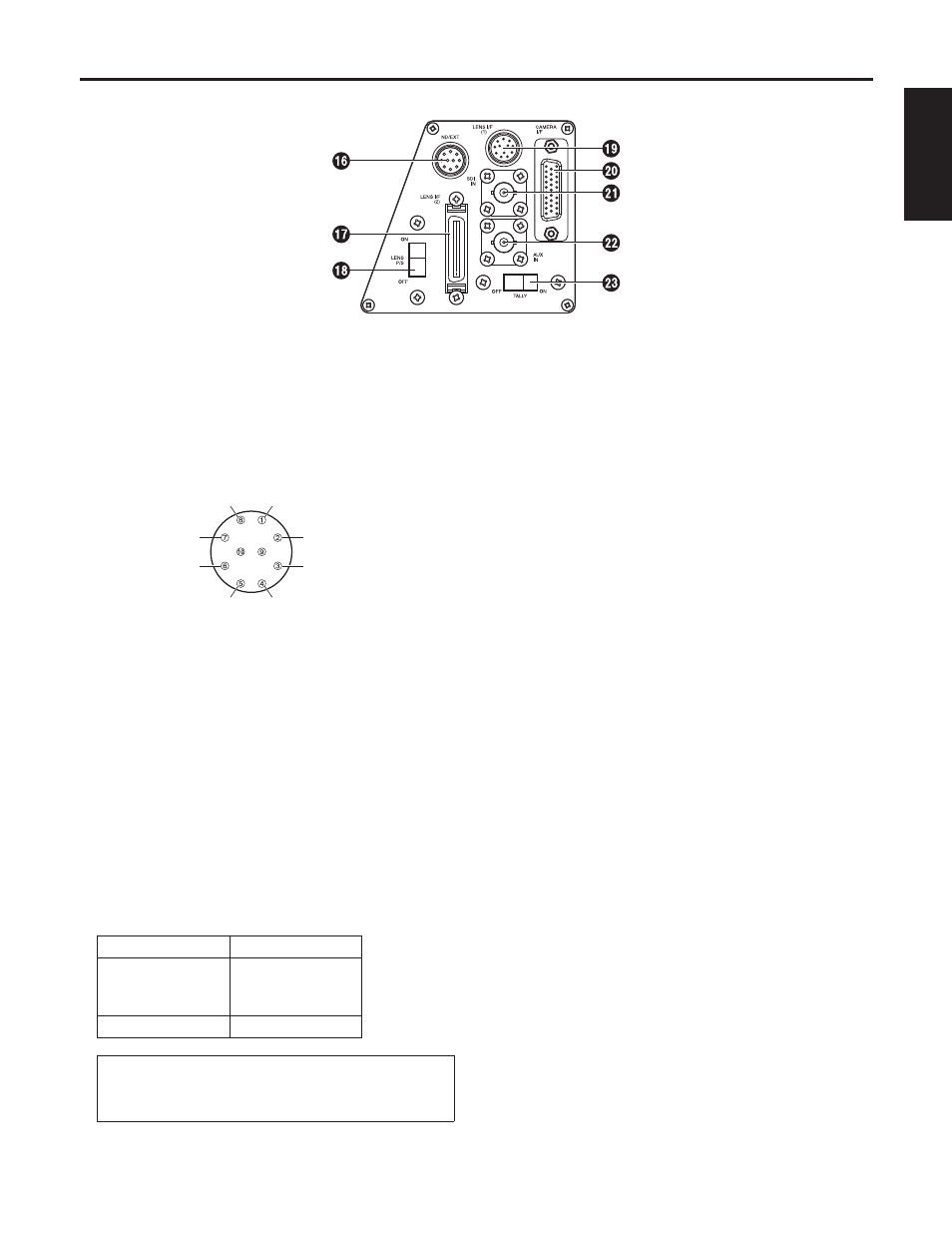

Parts and their function
Rotary head connector panel
 ND/EXT connector [ND/EXT]
This is for the control of the ND filter and lens extender of
the motorized lens unit.
Connect this connector when using a motorized lens
unit with ND filter and lens extender functions. The cable
described in “Cable specifications” on page 5 is required
in order to connect this connector.
CVCC (12 V) CanonEXT ()
CGND
EXT Return
CanonEXT ()
ND Signal
EXT Signal ND Return
(Pin layout as seen from cable end)
The current rating of the CVCC and CGND pins is
500 mA (max). Any devices whose maximum current
consumption exceeds 500 mA cannot beused.
 LENS I/F (2) connector [LENS I/F (2)]
This is used when an IAS, WAS or VAS lens made by
Canon or an RD lens made by Fujinon is to be used.
The optional connecting cable is required to connect the
lens with the connector.
The current rating of LENS I/F () connector is 500 mA
(max).
The lens whose maximum current consumption exceeds
500 mA cannot be used. Concerning the maximum
current consumption of the lens, contact the lens
manufacturer.
Lens Cable
Canon
Digital
Analogue AW-CA4DLZG
AW-CA4ALZG
Fujinon AW-CA4FLZG
Note  Refer to the instructions for using the
connecting cable to ensure that it is
connected properly.
 LENS P/S ON/OFF switch [LENS P/S]
When this is set to ON, power is supplied to the lens from
the LENS I/F (1) connector. When it is set to OFF, power
is no longer supplied to the lens from the LENS I/F (1)
connector.
Set this switch to OFF when power is to be supplied from
a source outside the unit without using the AW-PH405’s
dedicated camera cable.
 LENS I/F (1) connector [LENS I/F (1)]
This is used to control the zooming and focusing of the
motorized lens unit.
Use the motorized lens unit’s remote (zoom/focus) control
cable to make the connection.
 CAMERA I/F connector [CAMERA I/F]
This is used for the control of the convertible camera.
Use the camera cable supplied with the AW-PH405 to
connect the connector with the REMOTE connector on
the camera.
Depending on the functions of the optional card, a special
camera cable (sold separately) is required.
 SDI IN connector [SDI IN]
Use a coaxial cable to connect this to the SDI OUT
connector on the AW-PB504 SDI card or other card
installed in the convertible camera.
 AUX IN connector [AUX IN]
This connector is connected using a BNC coaxial cable
to the SDI OUT connector on the AW-PB504 SDI card
or other card installed in the convertible camera or to the
VBS connector on the AK-HDC1500G down converter
board or other board installed in the AK-HC1500G
multi-purpose camera.
 TALLY OFF/ON switch [TALLY]
When this is set to ON, the tally lamp is lit by the selected
signals. When it is set to OFF, the () tally lamp will not
light even if the selected signals are supplied.
