4 (E)
ENGLISH
Connections
For the AK-HC1500G

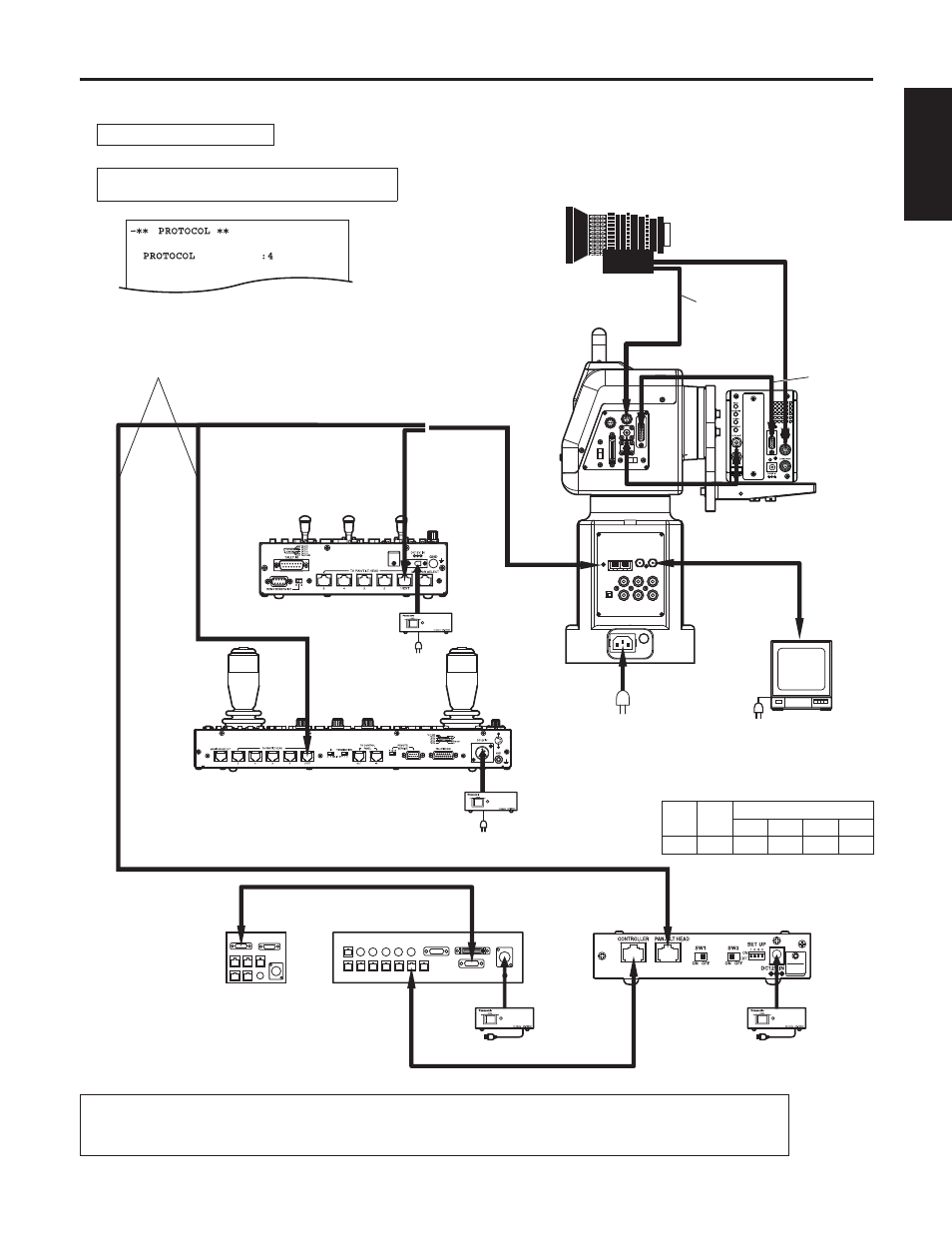

 Use the connecting cables below to connect the pan-tilt head and camera.
AW-CA15H9G
 Refer to the operating instructions for using the connecting cable to ensure that it is connected properly.
Motorized zoom lens Iris control cable
Monitor
Camera cable
AW-CA15H29G
Zoom/focus
control cable
AW-PH405
Indoor Pan-tilt Head
Pan-tilt head/camera control signals
AW-RP655
Multi-function controller
AW-PS505A
AC adapter
AW-RP555
Multi Hybrid Control Panel
AW-PS505A
AC adapter
10BASE-T
straight cable
HD SDI video signal
AC power cable
supplied with
AW-PH405
To the
LENS I/F (1)
connector
AW-PS505A
AC adapter
AW-PS505A
AC adapter
AW-CB400
Remote operation
panel
AW-IF400
Protocol converter
AW-RP400
Pan-tilt control panel
Note  Set the menu items to protocol 4.
• AW-IF400
Switch settings
SW1 SW
SET UP
1   4
ON ON OFF OFF OFF OFF
