5 (E)

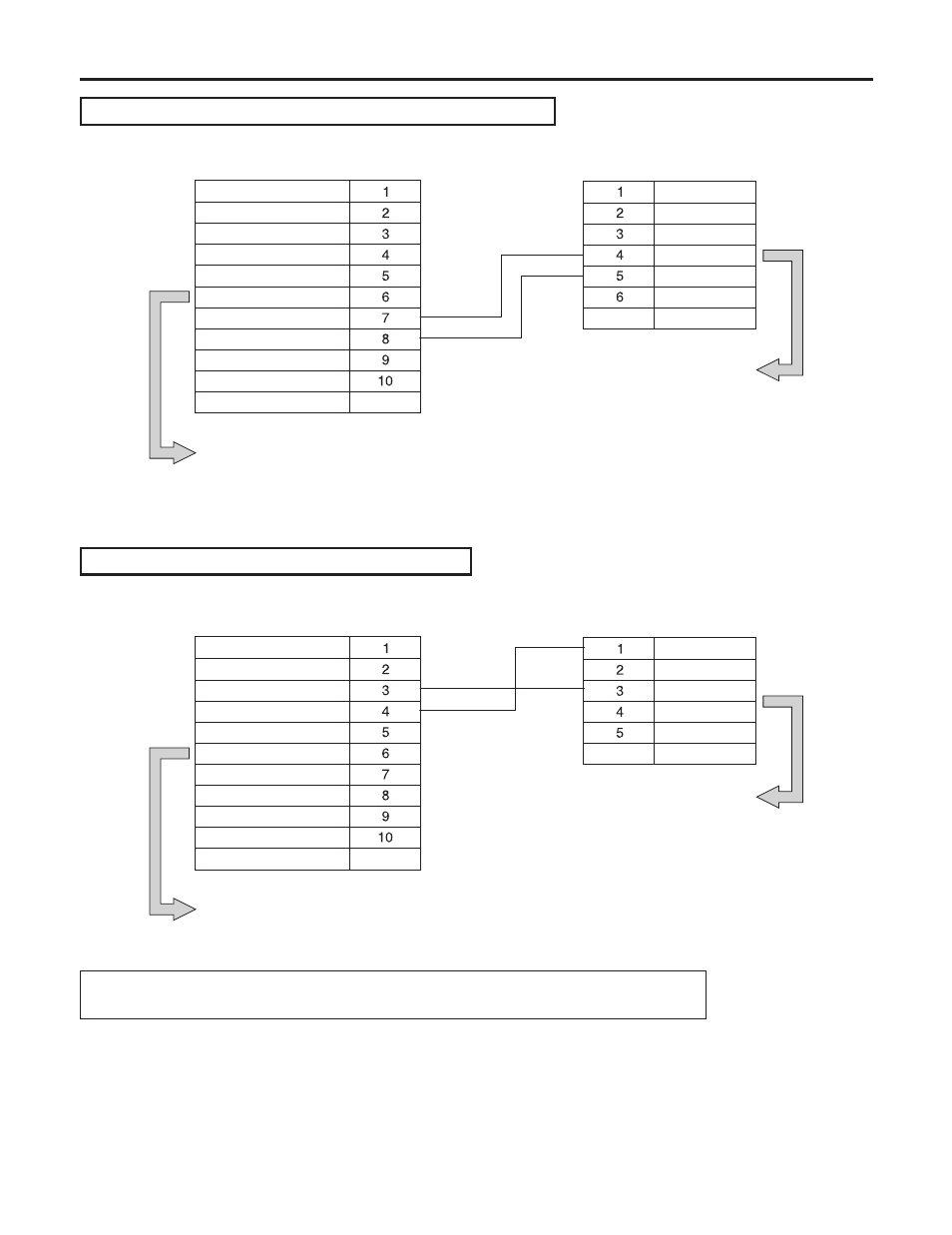

Cable specifications
When connecting a Fujinon extender change unit
SHELL
CVCC (12 V)
CGND
EXT Return
EXT Signal
ND Return
ND Signal
CanonEXT ()
CanonEXT ()
GND
GND
Connector: HR10A-10P-10P (73)
made by Hirose Electric
SHELL
Connect this connector to the ND/EXT
connector on the pan-tilt head
Connect this connector
to the EXT connector on
the lens
When connecting a Canon lens with motorized extender unit
 For details on how to connect the extender change unit to the lens, consult the information
provided by the manufacturer of the lens.
Connector: HR10A-7P-6S (73)
made by Hirose Electric
Connector: HR10A-7P-5P (73)
made by Hirose Electric
SHELL
Connector: HR10A-10P-10P (73)
made by Hirose Electric
CVCC (12 V)
CGND
EXT Return
EXT Signal
ND Return
ND Signal
CanonEXT ()
CanonEXT ()
GND
GND
SHELL
Connect this connector to the ND/EXT
connector on the pan-tilt head
Connect this connector
to the 5-pin connector on
the extender change unit
