11 (E)
Installation

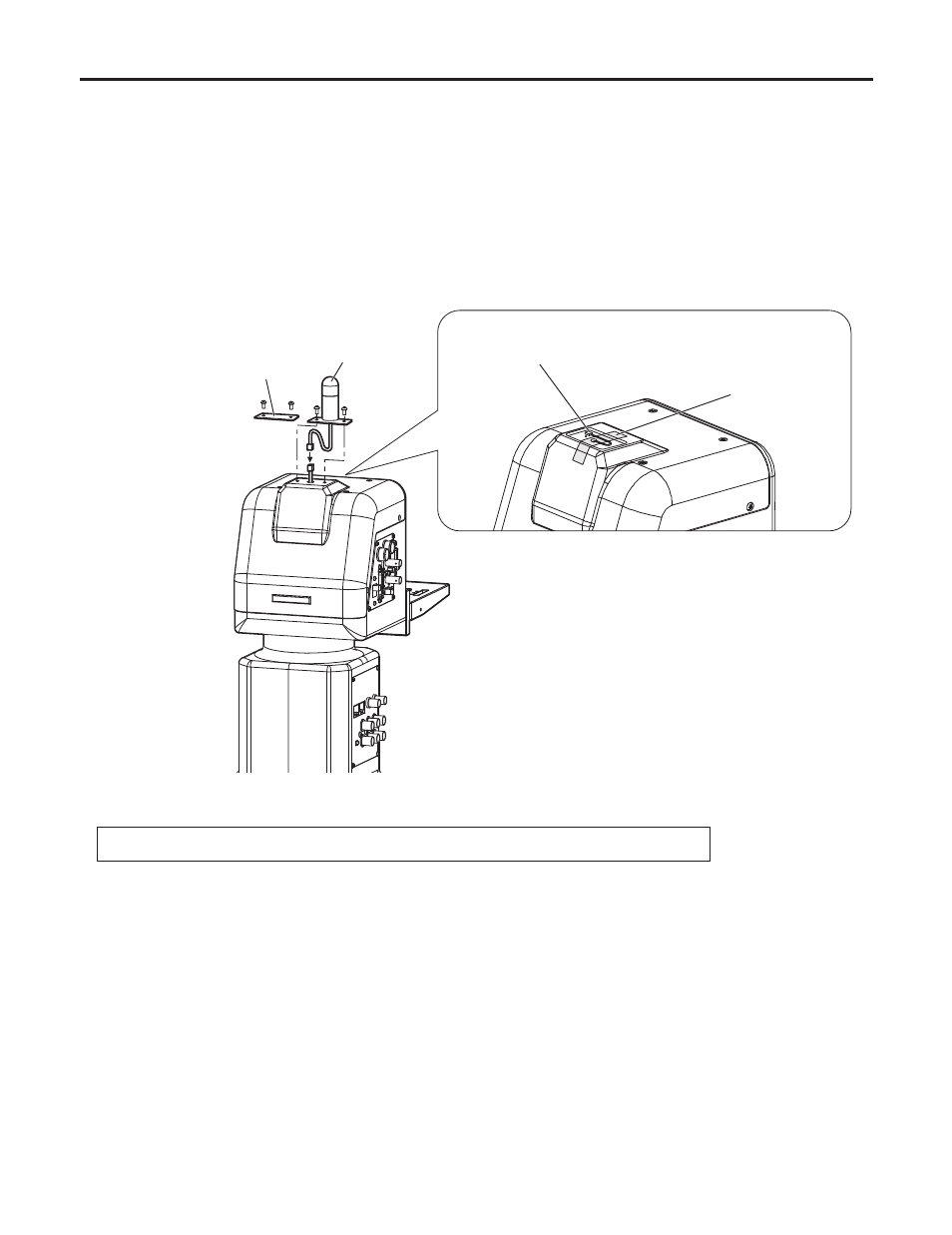

 Mounting the tally lamp
Connect the cable connector which is taped to the top of the pan-tilt head to the tally cable connector.
Mount the tally lamp on the top of the pan-tilt head using the two screws provided.
Mount the lamp while paying attention to the wire.
The cable for the tally cable connector is about 50 mm long.
When connecting the cable to the connector, do not pull it out beyond this length.
If the tally lamp is not going to be used, insert the cable which is stuck to the top of the pan-tilt head inside the pan-tilt head,
and attach the blank panel for the tally lamp using the two screws provided.
Note  Tighten up the screws securely to ensure that they will not come loose during use.
Tally lamp
Blank panel
Tally cable connector
Taped
