Connections
 Turn off the power of all the equipment before proceeding with the connections.
 Connect the AC power cable supplied with the AW-PH405 for the AW-PH405 indoor pan-tilt head.
 Use 10BASE-T straight cables to connect the RP connectors on the pan-tilt heads with the CONTROL OUT TO PAN/TILT
HEAD (1 to 5) connectors on the AW-RP655 multi-function controller and AW-RP555 multi hybrid control panel. The maximum
extension distance is 1000 meters when using UTP category 5 cables or their equivalent.
 Use the camera cables supplied with the pan-tilt head to connect the AW-PH405 to the convertible camera.
 Connect the iris control cable of the motorized zoom lens to the IRIS connector on the camera, and connect the zoom/focus
cable to the LENS I/F (1) connector on the pan-tilt head.

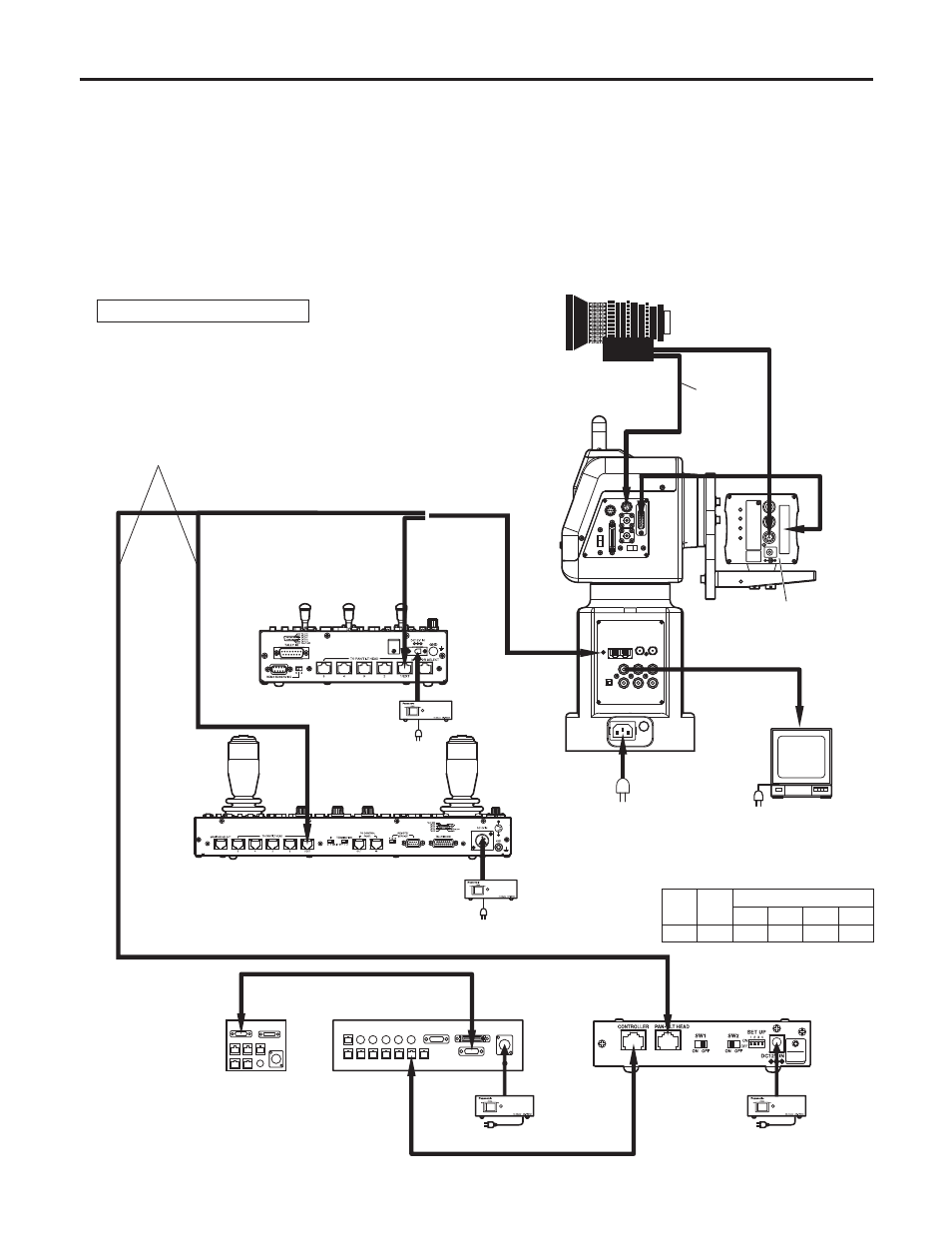

Motorized zoom lens Iris control cable
Convertible camera
Monitor
Camera cable
supplied with
AW-PH405
Zoom/focus
control cable
AW-PH405
Indoor Pan-tilt Head
Pan-tilt head/camera control signals
AW-RP655
Multi-function controller
AW-PS505A
AC adapter
AW-RP555
Multi Hybrid Control Panel
AW-PS505A
AC adapter
10BASE-T
straight cable
BNC cable video signal
For a convertible camera
AC power cable
supplied with
AW-PH405
To the
LENS I/F (1)
connector
AW-PS505A
AC adapter
AW-PS505A
AC adapter
• AW-IF400
Switch settings
SW1 SW
SET UP
1   4
ON ON OFF OFF OFF OFF
AW-CB400
Remote operation
panel
AW-IF400
Protocol converter
AW-RP400
Pan-tilt control panel
