Installation
 Bearing in mind the length of the lens, set the movement range of the pan-tilt head using the limiters in such a way that the
hood at the edge of the lens will not come into contact with the surface on which the pan-tilt head is installed when the pan-tilt
head is tilted.

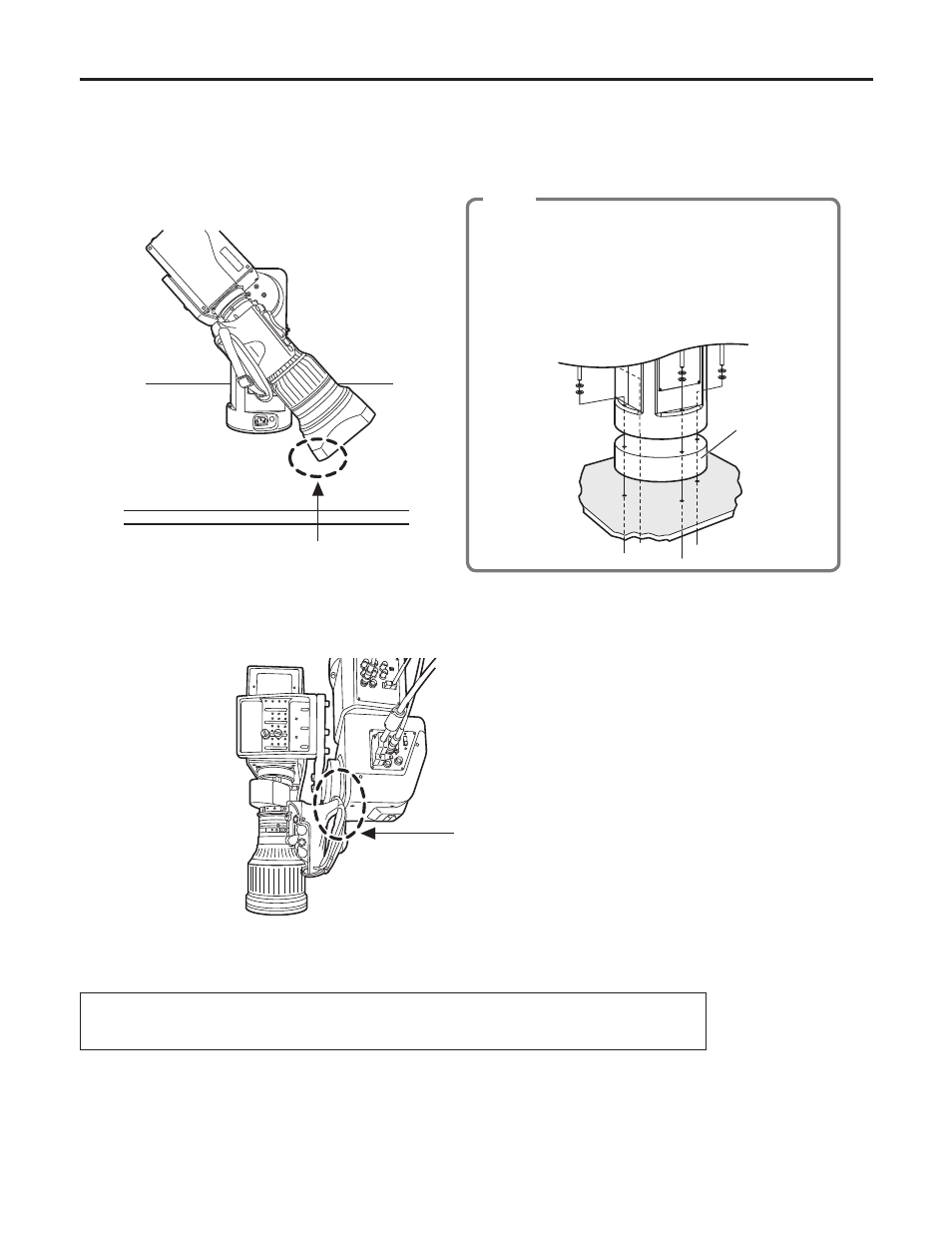

Lens must not come into contact with
mounting surface.
 To point the lens any further straight down in a
stand-alone installation, insert a spacer between
the pan-tilt head and mounting surface to raise the
pan-tilt head position.
Make sure that the spacer has a strong enough
construction. Also ensure that the mounting bolts
used are long enough.
Note
Spacer
 When the pan-tilt head is installed on the ceiling, contact with the pan-tilt head body may be made by the protrusion of the
drive unit when tilting operations are performed. For this reason, set the limiters before proceeding with the installation work.
Protrusion of drive unit
must not come into contact
with pan-tilt head body.
 Do not tie the connected lens cable and camera cable together as a bundle. During operation, excessive strain may be placed
on cables which have been bundled together. Instead, be absolutely sure to tie them separately.
 Be absolutely sure to use a screwdriver or other tool to tighten the two camera mounting screws
so that the camera is secured firmly.
 After the camera has been mounted, check that there is no play in the way it was mounted.
Precautions for mounting the camera
