Quick start guide
5
En
English
INTR
ODUCTION

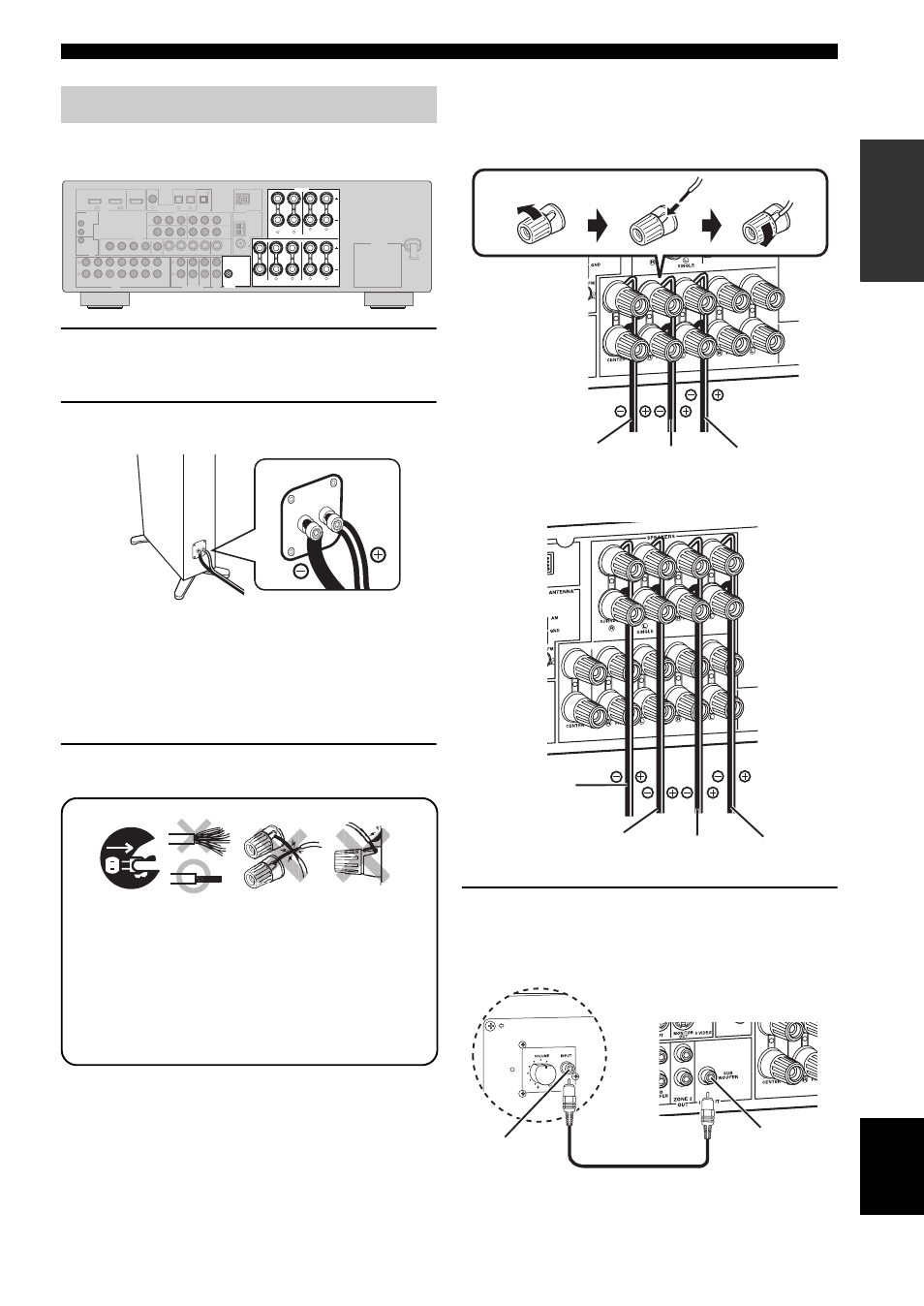

Place your speakers in the room and connect them to this
unit.
1
Place your speakers and subwoofer in the
room.
2
Connect speaker cables to each speaker.
Cables are colored or shaped differently, perhaps with
a stripe, groove or ridge. Connect the striped
(grooved, etc.) cable to the “+” (red) terminals of
your speaker. Connect the plain cable to the “–”
(black) terminals.
3
Connect each speaker cable to the
corresponding speaker terminal of this unit.
1 Make sure that this unit and the subwoofer are
unplugged from the AC wall outlets.
2 Twist the exposed wires of the speaker cables
together to prevent short circuits.
3 Do not let the bare speaker wires touch each other.
4 Do not let the bare speaker wires touch any metal
part of this unit.
Be sure to connect the left channel (L), right channel
(R), “+” (red) and “–” (black) properly.
Front and center speakers
Surround and surround back speakers
4
Connect the subwoofer cable to the input
jack of the subwoofer and the SUBWOOFER
OUTPUT jack of this unit.
Step 1: Set up your speakers
L R SURROUND
L R FRONT B L R FRONT A CENTER
L R
SURROUND BACK/BI-AMP
SINGLE
SWITCHED
MONITOR OUT
L
R
DTV/CBL DVR DVD MD/ CD-R OUT (REC) IN (PLAY) OUT IN
DTV/CBL DVR DVD OUT
OUT
+12V
15mA MAX.
IN
IN
MONITOR OUT DTV/CBL DVR DVD OUT S VIDEO IN
CD
L
R
SUB WOOFER
SUB WOOFER
SURROUND
CENTER
MULTI CH INPUT AUDIO
VIDEO
OUTPUT ZONE 2 OUT
FRONT(6CH) SB(8CH)
1 2 3 DTV/CBL DTV/CBL MD/CD-R OUT
DTV/CBL
DVR
DVD DVD
OPTICAL 4
MD/CD-R
COAXIAL
DVD P R P B Y P R P B Y
MONITOR OUT
AM
GND
FM
75 UNBAL.
COMPONENT VIDEO ANTENNA
SPEAKERS
HDMI REMOTE
TRIGGER
OUT
DIGITAL INPUT DIGITAL
OUTPUT
VIDEO
DOCK IN1 IN2
AC OUTLETS
L R SURROUND
L R FRONT B L R FRONT A CENTER
L R
SURROUND BACK/BI-AMP
SINGLE
SUB WOOFER
OUTPUT
SPEAKERS
1 2 3 4
To the front
right speaker
To the front
left speaker
Loosen Insert Tighten
To the center
speaker
To the surround
back right
speaker
To the surround
back left speaker To the surround
left speaker To the surround
right speaker
SUBWOOFER
OUTPUT jack
Subwoofer cable
Input jack
AV receiver
Subwoofer
