21
En
Connections
English
PRE
P
ARA
T
ION

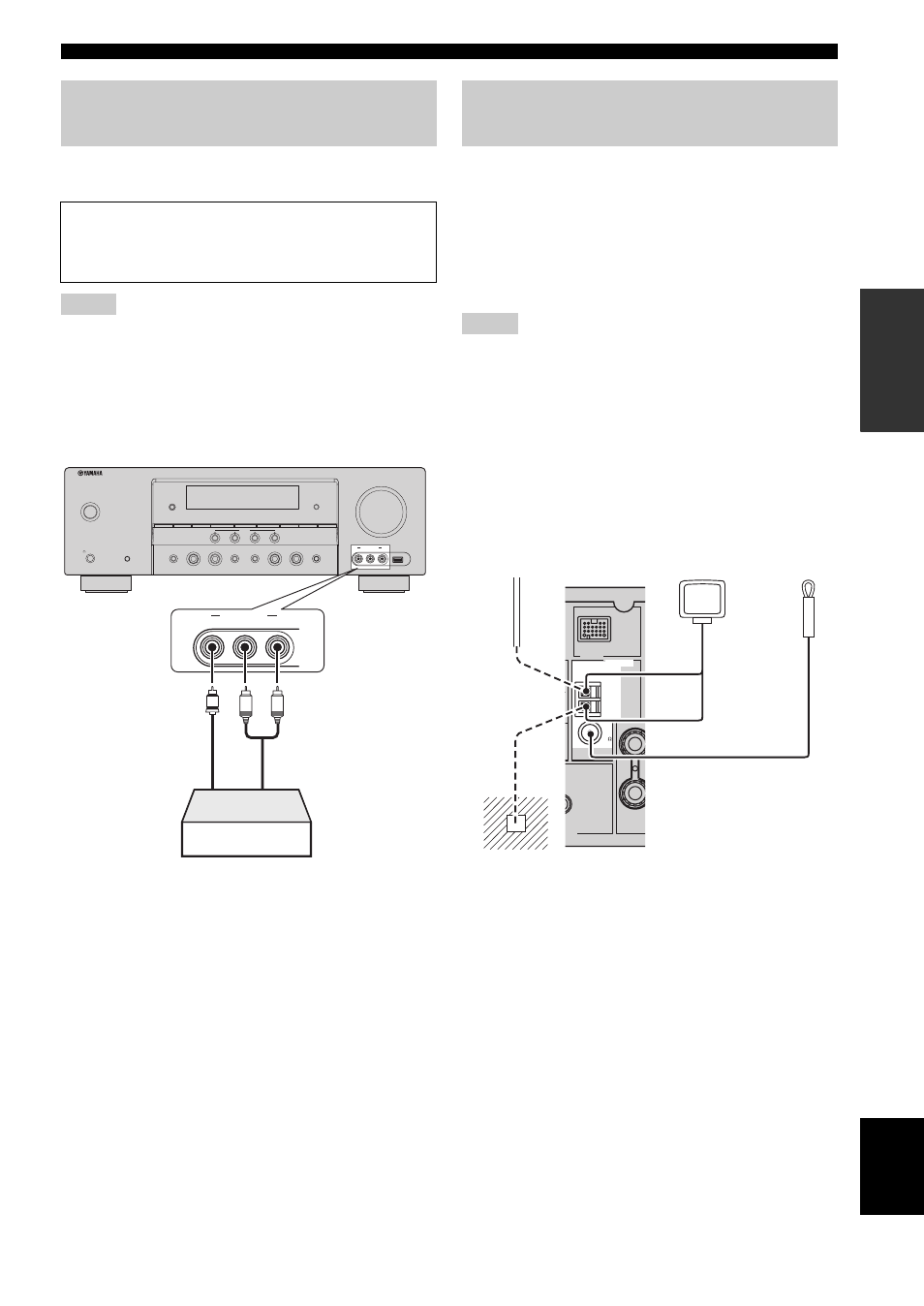

Use the VIDEO AUX jacks on the front panel to connect a
game console or a video camera to this unit.
• To reproduce the source signals input at these jacks, select
“V-AUX” as the input source.
• When audio signals are input at the AUDIO jacks and the
DOCK terminal on the rear panel, the priority order of the input
signal is as follows:
1. DOCK
2. AUDIO
Both FM and AM indoor antennas are supplied with this
unit. Connect each antenna correctly to the designated
terminals. In general, these antennas should provide
sufficient signal strength.
y
See page 22 for connection information of the supplied AM loop
antenna.
• The AM loop antenna should be placed away from this unit.
• The AM loop antenna should always be connected, even if an
outdoor AM antenna is connected to this unit.
• A properly installed outdoor antenna provides clearer reception
than an indoor one. If you experience poor reception quality,
install an outdoor antenna. Consult the nearest authorized
Yamaha dealer or service center about outdoor antennas.
Using the VIDEO AUX jacks on the
front panel
Caution
Be sure to turn down the volume of this unit and other
components before making connections.
Notes
SPEAKERS PHONES
SILENT CINEMA
ON/OFF
A/B/OFF
l PRESET/TUNING/CH h A/B/C/D/E BAND ZONE 2
ON/OFF EDIT PRESET/TUNING MEMORY ZONE CONTROL TUNING AUTO/MAN'L
OPTIMIZER MIC
AUDIO SELECT DIRECT STRAIGHT
EFFECT
TONE CONTROL l INPUT h l PROGRAM h
VOLUME
SCENE
1 2 3 4
MAIN ZONE
SYSTEM OFF
VIDEO L AUDIO R VIDEO AUX USB
VIDEO L AUDIO R
VIDEO AUX
V L R
Game console or
video camera
Video
output
Audio
output
Connecting the FM and AM
antennas
Notes
CENTER
O
SUB
WOOFER
PUT
AM
GND
FM
75
UNBAL.
ANTENNA
DOCK
AM
GND
FM
75
UNBAL.
ANTENNA
Indoor FM
antenna
(supplied)
Ground (GND terminal)
For maximum safety and minimum interference, connect the
antenna
GND terminal to a good earth ground. A good earth
ground is a metal stake driven into moist earth.
AM loop
antenna
(supplied)
Outdoor AM antenna
Use a 5 to 10 m (16 to 33
ft) vinyl-covered wire
extended outdoors from a
window.
