Connections
This unit is equipped with the DOCK terminal on the rear
panel that allows you to connect a Yamaha iPod universal
dock (such as YDS-10, sold separately) or Bluetooth
adapter (such as YBA-10, sold separately). Connect a
Yamaha iPod universal dock or Bluetooth adapter to the
DOCK terminal on the rear panel of this unit using its
dedicated cable.
When the components are the Yamaha products and have
the capability of the transmission of the remote control
signals, connect the REMOTE IN jack and REMOTE
OUT jack to the remote control input and output jack with
the monaural analog mini cable as follows.
y
• If the components have the capability of the SCENE control
signals, this unit can automatically activate the corresponding
components and start the playback when you use one of the
SCENE buttons. Refer to the owner’s manuals for details about
the capability of the SCENE control signals of the components.
• If the component connected to the REMOTE OUT jack is not
the Yamaha product, set “SCENE IR” in the advanced setup
menu to “OFF” (see page 77).

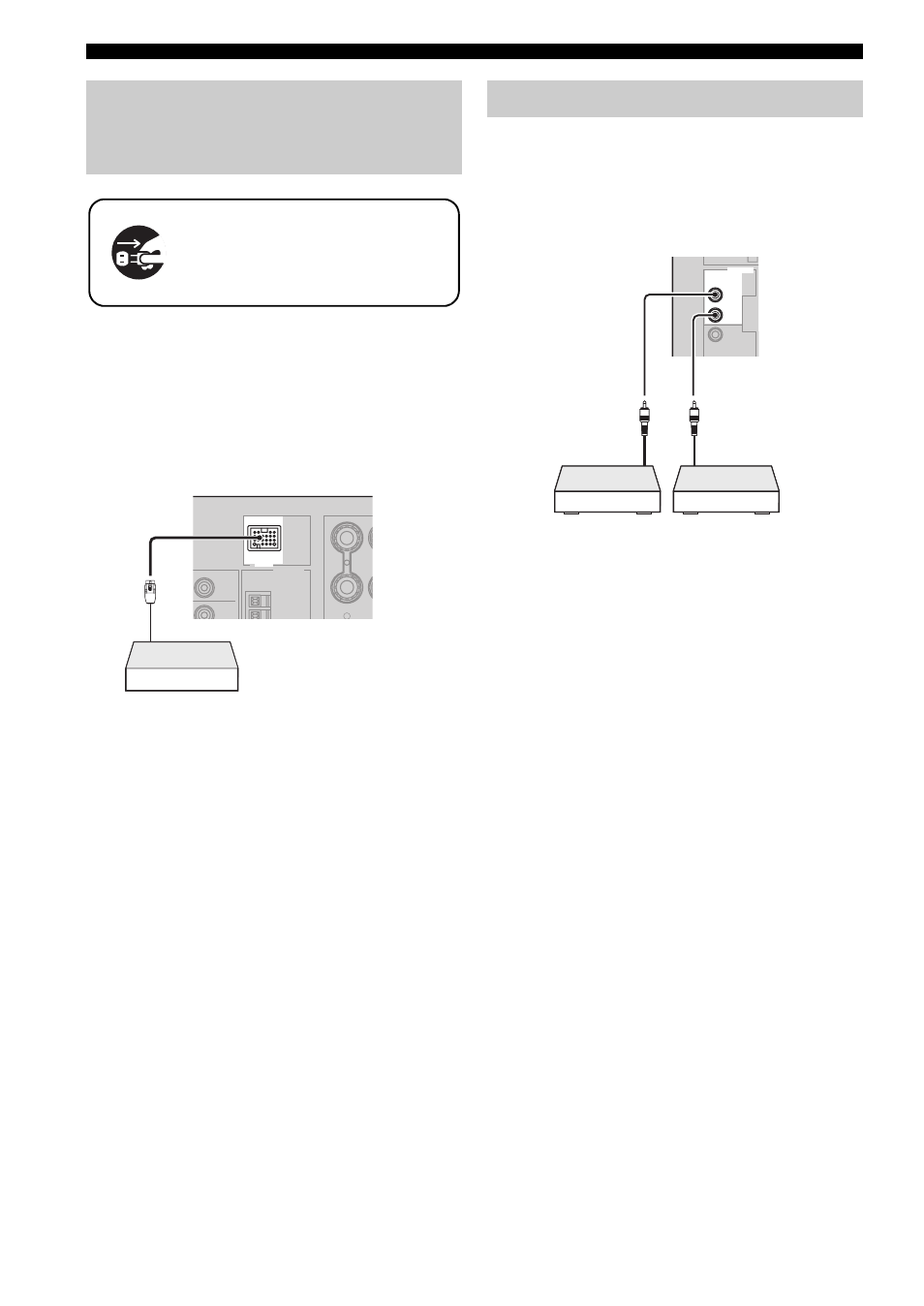

Connecting a Yamaha iPod™
universal dock or Bluetooth™
adapter
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
R
SURROUND BAC
DTV/CBL
DVR
Y
AM
GND
ANTENNA
DOCK DOCK
Yamaha iPod universal dock
or Bluetooth adapter
Using REMOTE IN/OUT jacks
OUT
+12V
15mA MAX.
IN
DVD
REMOTE
IN1
OUT
IN
REMOTE
Yamaha
component
(CD or DVD
player, etc.)
Remote
control in Remote
control out
Infrared signal
receiver or
Yamaha
component
