24
En
Connections
1 HDMI indicator
Lights up when the signal of the selected input source is
input at the HDMI IN jacks (see page 14).
2 DOCK indicator
• Lights up when you station your iPod in a Yamaha
iPod universal dock (such as YDS-10, sold separately)
connected to the DOCK terminal of this unit (see
page 20) and V-AUX is selected as the input source.
• Flashes while the connected Yamaha Bluetooth adapter
(such as YBA-10, sold separately) and the Bluetooth
component is in the paring (see page 55) or the
Bluetooth adapter is searching the Bluetooth
component (see page 55).
• Lights up while the connected Yamaha Bluetooth
adapter is connected to the Bluetooth component (see
page 20).
3 ENHANCER indicator
Lights up when the Compressed Music Enhancer mode is
selected (see page 40).
4 Input source indicators
The corresponding cursor lights up to show the currently
selected input source.
5 YPAO indicator
Lights up when you run “AUTO SETUP” and when the
speaker settings set in “AUTO SETUP” are used without
any modifications (see page 26).
6 Tuner indicators
Lights up when this unit is in the FM or AM tuning mode
(see pages 45 to 47).
7 96/24 indicator
Lights up when a DTS 96/24 signal is input to this unit.
8 MUTE indicator and VOLUME level indicator
• The MUTE indicator flashes while the MUTE function
is on (see page 37).
• Indicates the current volume level.
9 PCM indicator
Lights up when this unit is reproducing PCM (Pulse Code
Modulation) digital audio signals.
0 Decoder indicators
The respective indicator lights up when any of the
decoders of this unit function.
A Headphone indicator
Lights up when headphones are connected (see page 37).
B SP A B indicators
Light up according to the set of front speakers activated
(see page 35).
SP A: The FRONT A speakers are activated.
SP B: The FRONT B speakers are activated.
C ZONE2 indicator
Lights up when Zone 2 is turned on (see page 75).

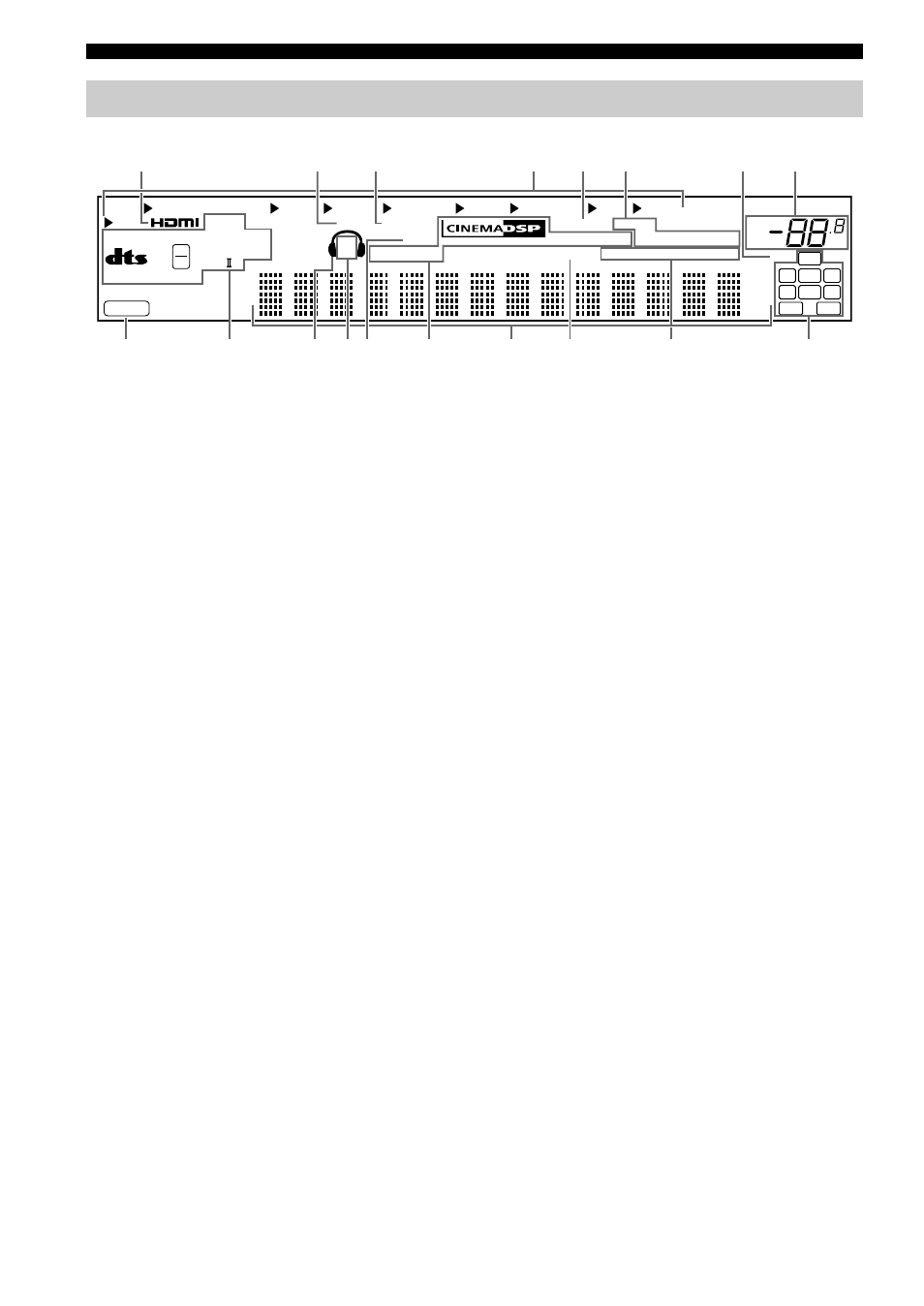

Front panel display
MUTE
ms
dB
ft
VOL.
dB
PCM
96/24
VIRTUAL AUTO
YPAO MEMORY
TUNED STEREO
EON CT RT PTY PS HOLD PTY SLEEP
USB
MULTI CH DVR V-AUX DTV/CBL DVD CD MD/CD-R TUNER
MATRIX DISCRETE
ES
DOCK ENHANCER
SILENT CINEMA
ZONE 2 SP
A B 96
24
q PL x
LFE
L L C R
SL SB SR
SBR SBL
q EX
q DIGITAL PLUS
G H F E C B D A 0 9
1 2 3 4 5 6 7 8
