In models with " covered terminal block"
If a cable without a plug is provided together with your
oven
Take care to connect as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
GreenA'ellow cable = E (Earth )
If your oven is supplied without supply cord use schema-l to choose supply
cord and use schema-ll for installation of cord.
The cable length should be max 2m long for isolation safety.
Open the terminal block cover (1).

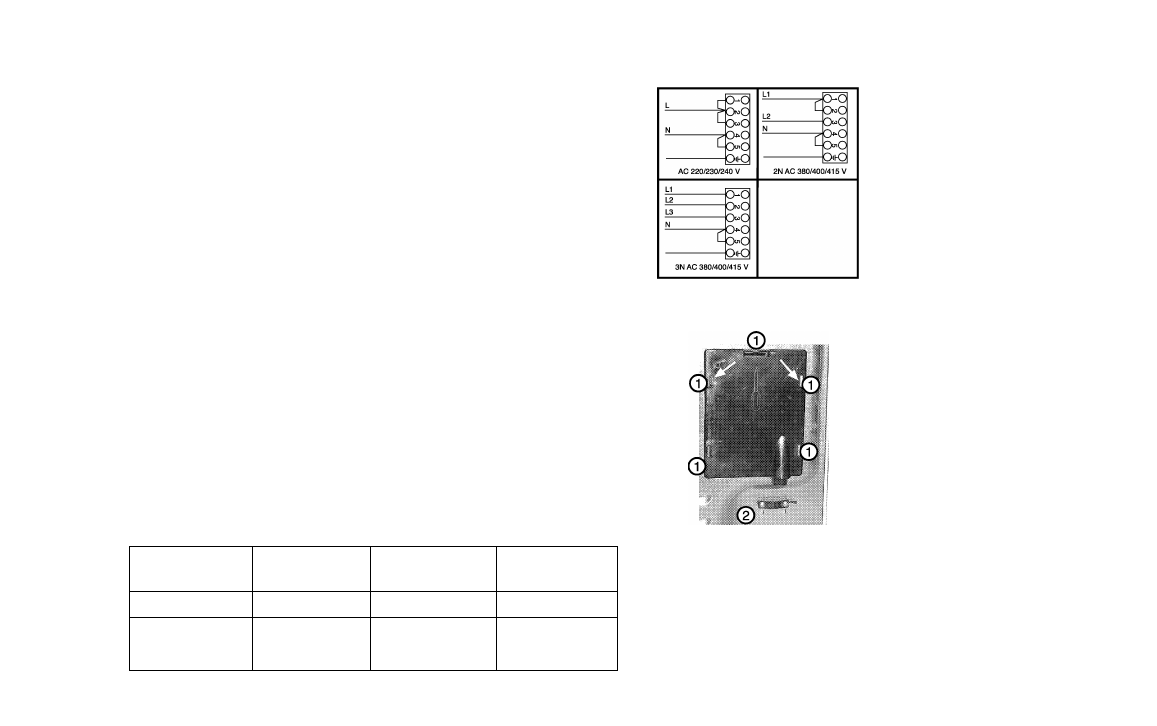

Connect the supply cable according to wiring diagram on the rear cover.
Assembly the terminal block cover to its place.
The mains cable must pass through the cable clamp (2).
Fix the supply cable to main body with two screw via cable tightener (2).
Your oven is suitable for single and three phase connection.
«•"The mains cable should be routed away from the appliance and in particular
ventilation slots, the vent outlet and should not be obstructed when pushed in to
position between the appliance and the wall and/or cabinet.
Schema I
Connection Type Monophase Three phase
with Neutral
Two phase
with Neutral
Voltage 220/230/240 V 380/400/415 V 380/400/415 V
Supply cord type
(max 2m long) 3x2,5 mm2
H05 V V-F
5x2,5 mm2
H05 V V-F
4x2,5 mm2
H05 V V-F
