Part 2: Important Installation and preparation of your oven
Before your appliance is connected to the mains
electricity supply, check to ensure that the voltage
and the frequency shown in the data plate
corresponds with your power supply. The data
plate is situated back cover of the oven, or it is
situated in the front of the storage compartment
and can be seen by opening the storage
compartment cover or pulling the drawer.
Warning!
This appliance must be earthed
Our company shall not held responsible for any
damage caused by the utilisation of the oven
without ground socket.
Before applying to Authorized service, have the
electrical wiring of your home ready for connection.
If the appliances is connected by a plug, that the
plug is easily accessible after installation (but not
above the hob)
«•‘This product must only be installed by a qualified
electrician eg. local electricity company to a suitable
double pole control unit with a minimum contact
clearance of 3 mm in all poles which should be
adjacent to (but not above) the cooker in
accordance with lEE regulation. Failure to observe
this instruction may result in operational problems
and invalidation of the product warranty. If the
appliance is connected by a plug, that the plug is
easily accessible after installation (but not above
the hob).
The cable length should be 2 mt max for
isolation safety.
In mix models: a cable supplied with a plug with your oven
(H05 VV-F 3G1.5 mm2)
In models with "small type- terminal block"
* If a cable without a plug is provided together
with your oven
Take care to connect as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
Green/Yellow cable = E (Earth )

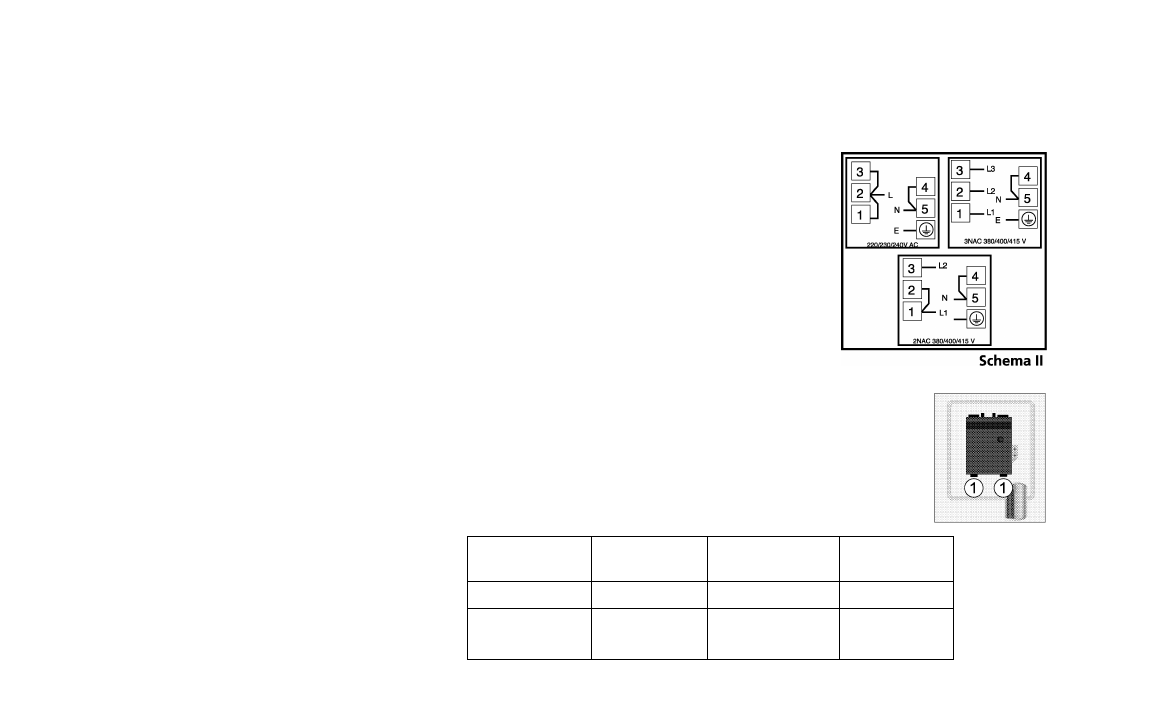

If your oven is supplied without supply cord use schema-
I to choose supply cord and use schema-ll for installation
of cord.
The cable length should be max 2m long for isolation safety.
«•“ Open the terminal block cover.
Connect the supply cable according to wiring diagram on the rear cover.
«•^ Fix the supply cable to main body with integrated screw via cable tightener.
«•^ Assembly the terminal block cover to its place.
Your oven is suitable for single and three phase connection.
«•^ The mains cable must pass through the cable clamp.
^•‘The mains cable should be routed away from the appliance and in particular
ventilation slots, the vent outlet and should not be obstructed when pushed
in to position between the appliance and the wall and/or cabinet.
Connection Type
Monophase
Three phase
with Neutral
Two phase
with Neutral
Voltage
220/230/240 V
380/400/415 V
380/400/415 V
Supply cord type
(max 2m long)
3x2,5 mm2
H05 V V-F
5x2,5 mm2
H05 V V-F
4x2,5 mm2
H05 V V-F
