Copying with the Heip of an Editing
Controiier
If you connect the Movie Camera to an Editing Controller
equipped with 5-pin Edit Socket, this Movie Camera’s
playback functions can be controlled from the Editing
Controller.
(The Output Terminal Box is necessary.)
When Connecting the Editing Controller VW-
EC500EO (optional)
•A VCR equipped with 5-pin Edit Socket is necessary.
•When you connect the VW-EC500E to the Movie
Camera, an adjustment on the VW-EC500E is
necessary. For the operation of the Editing Controller,
refer to its operating instructions.
When Editing with Time Code
Press the [DISPLAY] Button on the Remote Controller to
make the Time Code appear.
•When the Time Code is displayed, the Time Code
Signal is output from the Edit Socket.
•When the Counter Indication is displayed, the Linear
Tape Counter Signal is output.

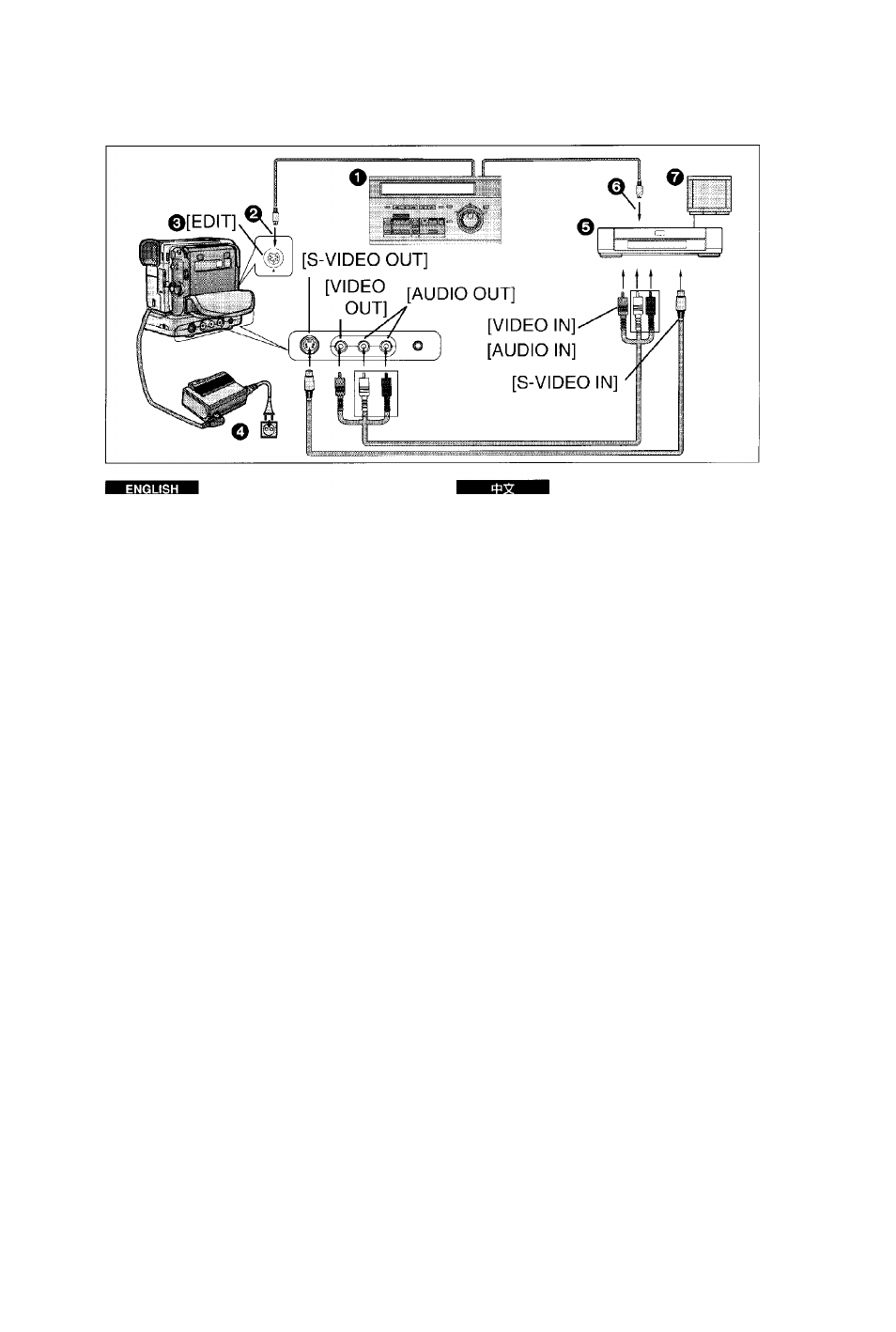

iSiilSIlJiiiJ^VW-ECSOOEO ^
hR"[DISPLAY]
©ifeWi.
Q^mmR.
Jk^,) M °
0 To Edit Socket
0 Edit Socket
O Connect the AC Adaptor.
© VCR (optional)
© To Edit Socket
o TV (optional)
