ENGLISH
■ Supplying Power with the Battery
The Battery was only minimally charged before shipping.
Therefore, fully charge it before you use it for the first
time.

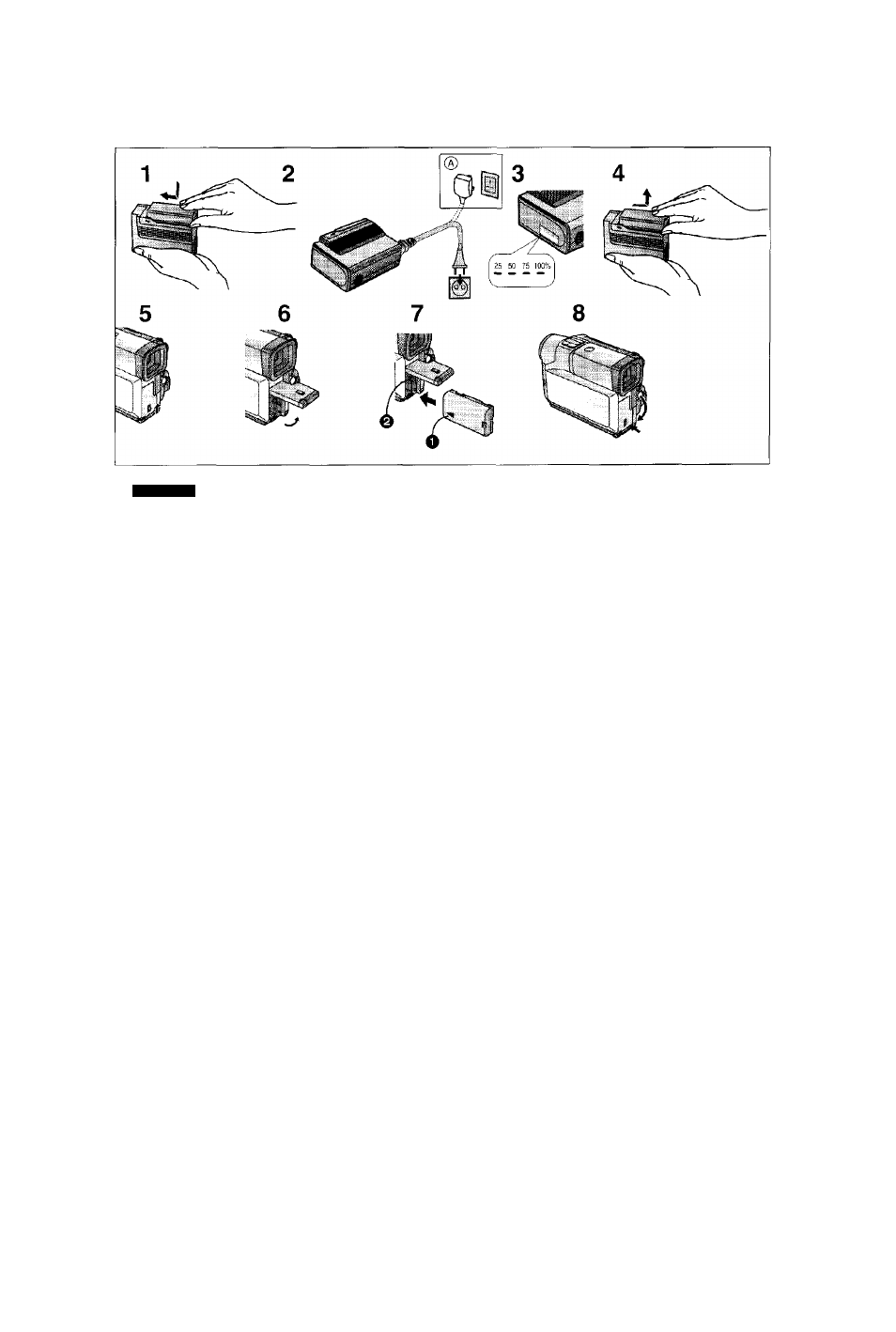

1
Place the Battery on the AC Adaptor as
shown above and slide it horizontally
until it stops.
2
Connect the AC Mains Cable to the AC
Adaptor and an AC mains socket.
(A): Hong Kong only
3 When all four Charge Lamps on the AC
Adaptor are lit, charging is finished.
4
Remove the Battery by sliding it in the
opposite direction of Step 1 above.
•Also disconnect the AC Mains Cable.
5
Slide the
[A
BATTERY] Lever.
6 Open the Battery Compartment Cover.
7
Insert the Battery with
O
pointing
inside.
8 Close the Battery Compartment Cover
so that it locks with a click.
Removing the Battery
Open the Battery Compartment Cover and push the
Battery Eject Lever Q.
♦ Hold your hand over the Battery Compartment Cover to
prevent the Battery from dropping.
♦ Before removing the Battery, set the [POWER
ON/OFF] Switch to [OFF].
Caution
Be sure to insert the Battery with the [A] mark pointing
into the Movie Camera. If you insert it with the mark
pointing outside, it could damage the Movie Camera.
1 in±il№^ ’ ■
ii®± “
01 ’ ■>
5
if»
[A
BATTERY] (litfe)ffi
"
7 iiASife ’ fiOISrt “
♦ ^y.Ltim>feZr’Fl^^[POWERON/OFF]rif.li^>Ti[OFF]°
18-
