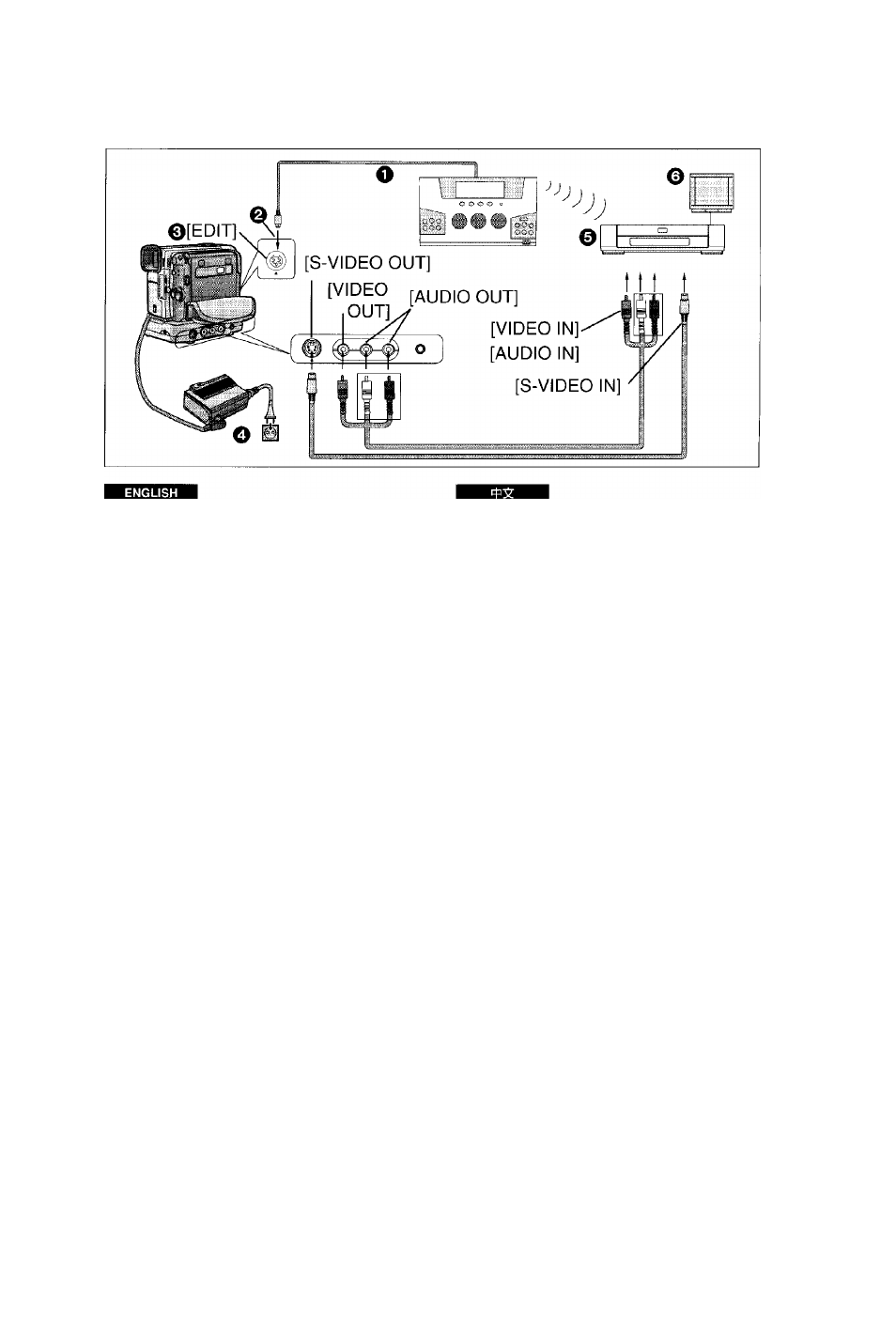

When Connecting the Editing Controlier
VW-EC1E (optional)
• When you use the Editing Controller VW-EC1E 0< it is
not necessary to connect it to the Edit Socket on the
VCR, as the VCR’s operation is performed via remote
controller, Therefore, editing is also possible onto
VCRs not equipped with an Edit Socket.
• For the operation of the Edit Controller, refer to its
operating instructions.
When Connecting the Editing Controller VW-EC310E to
this Movie Camera, such events as described below may
occur:
• The editing precision may be bad.
• Editing cannot be performed correctly.
Therefore, we recommend that you use the VW-EC500E
or the VW-EC1E as Editing Controller with this Movie
Camera.
0 To Edit Socket
0 Edit Socket
0 Connect the AC Adaptor.
0 VCR (optional)
o TV (optional)
^T^ljarf :
b C b o o E T c v w -
&hmmi
-108-
