ENGLISH
Using the Movie Camera with a
Computer
The Personal Computer Connection Kit VW-DTA1E
(optional) for Digital Video Cameras makes it possible to
connect the Movie Camera to a computer and transmit
still video images to it. (The Output Terminal Box is also
necessary.)
Computer System
DV STUDIO can be
computer which can
Compatible machines:
Graphic card:
Installed memory:
Free hard disk space:
Disk drive:
Serial port:
Other requirements
Requirements
installed in a PC/AT personal
run Microsoft- Windows® 95.
Personal computer with
80486DX4 or higher CPU
(Pentium™ or higher
recommended)
True Color (approx. 16.7 million
colours) recommended
(operanon also possible even
with 256 colours)
16 MB or more (32MB or more
recommended)
At least 10MB
CD-ROM drive
RS-232C (D-sub 9pin)
Mouse

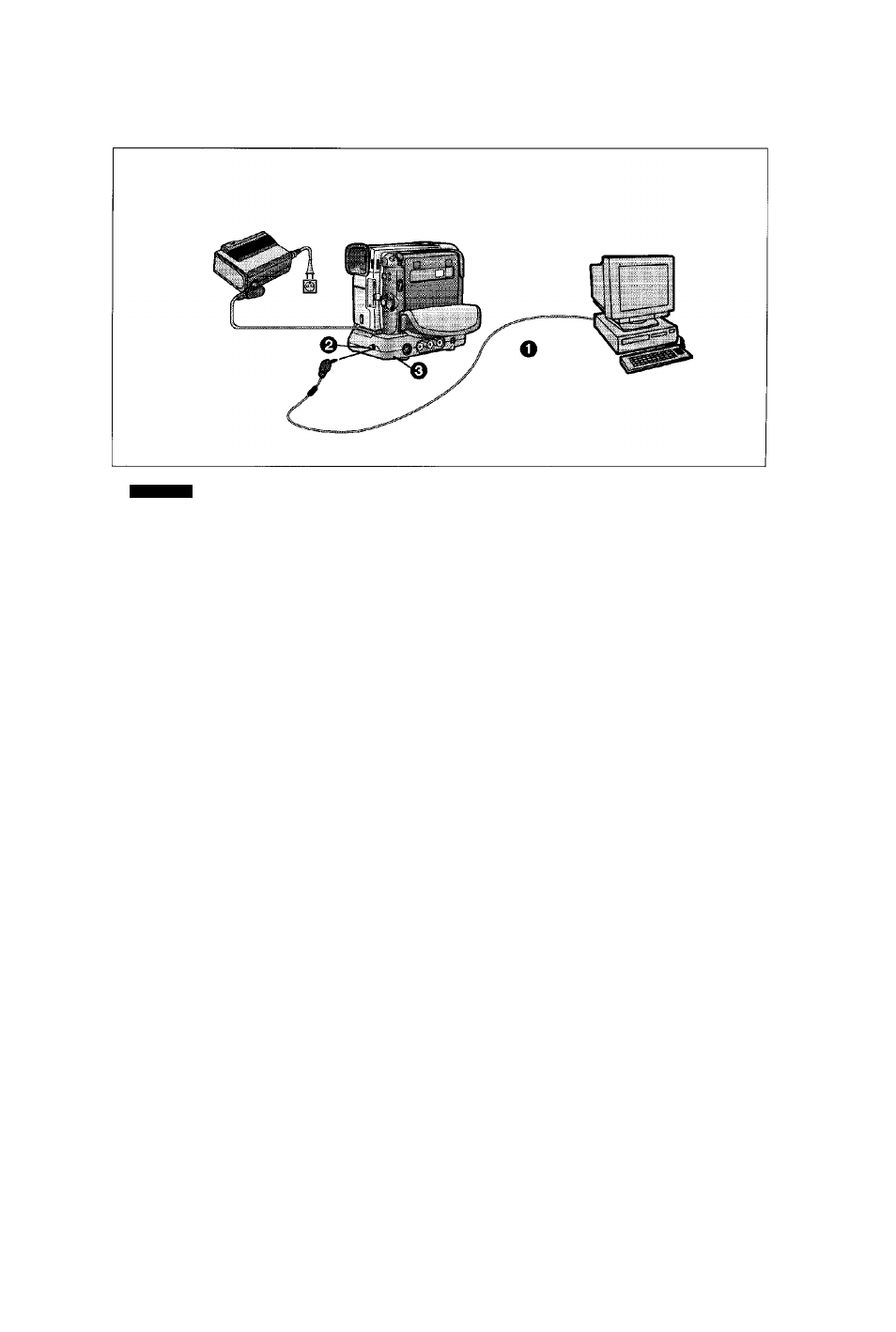

To connect the Movie Camera to the computer, use the
special interface Adaptor О contained in the Personal
Computer Connection Kit.
• Pictures that you intend to import into computer
application should be recorded in the SP Mode.
• When recording, take care that the Time Code is
uninterrupted from the beginning of the tape.
• Windows® 95 is a trademark of Microsoft Corporation
U.S.A.
• All other company and product names in the operating
instructions are trademarks of their respective
corporations.
0 Digital Still Picture Terminal
0 Output Terminal Box
тттшштт^^тш
тШии) ■
DV STUDIO (Ш"
^□®95ЫТРС/ЛТ{|]Л|;^ШША ^
^(t80486D X
Ш (A M P c n 1 1 u m' A ^ tA .!
И А А : ШМ.ШР, { A i 6 . 7 f T ^ A )
( T
1 6 M U A A A ( й ;^32М в АА а h)
^:T tomb
CD НОМ|мй^^
RS-232C (D-sub 9A)
if
• A f f l i T A t A A A A A ' h А п i U Я АffilP,Ж Д tiJSО
-116-
