ENGLISH
Playing Back on a TV
(With the Output Terminal Box Attached)

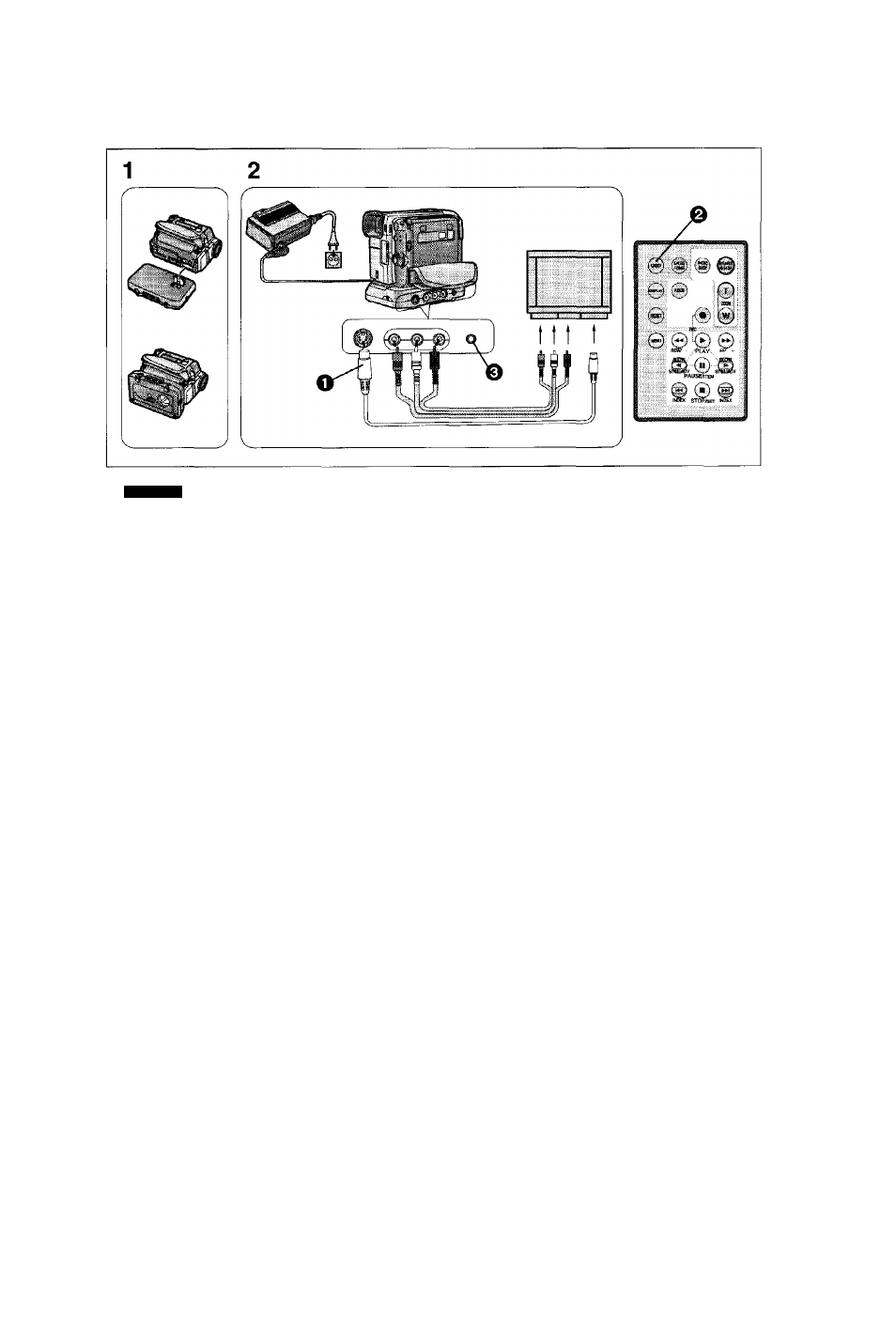

Attaching the Output Terminal Box to the Movie Camera
makes it possible to playback recorded scenes on a TV.
1
Attach the Output Terminal Box.
(-M
02
)
2
Connect to the Video and Audio input
Sockets on the TV.
Use the AV Cable to connect to the TV. If your TV is
equipped with an S-Video Socket, also connect the
S-Video Cable O-
♦ Before connecting, turn off both the Movie Camera and
the TV.
♦ If a cassette recorded with copyright protection signal
is played back, the screen becomes black. However,
scenes recorded with this Movie Camera do not
contain a copyright protection signal.
Making the Indications Appear on the TV
Screen
Press the [OSD] Button © on the Remote Controller.
The On-Screen Indications also appear on the TV
screen.
^шшт±тшт
Tiffin
1
“ (->
102
)
tìTLBi ’
r^losul
пА О °
йй$|:п+Ашй-Тн г_Н<:|РНОМЕ|ЙЙ'
Playing Back the Sound via Headphones
Using the [PHONE] Socket © on the Output Terminal
Box lets you play back the sound on the headphones.
•52-
