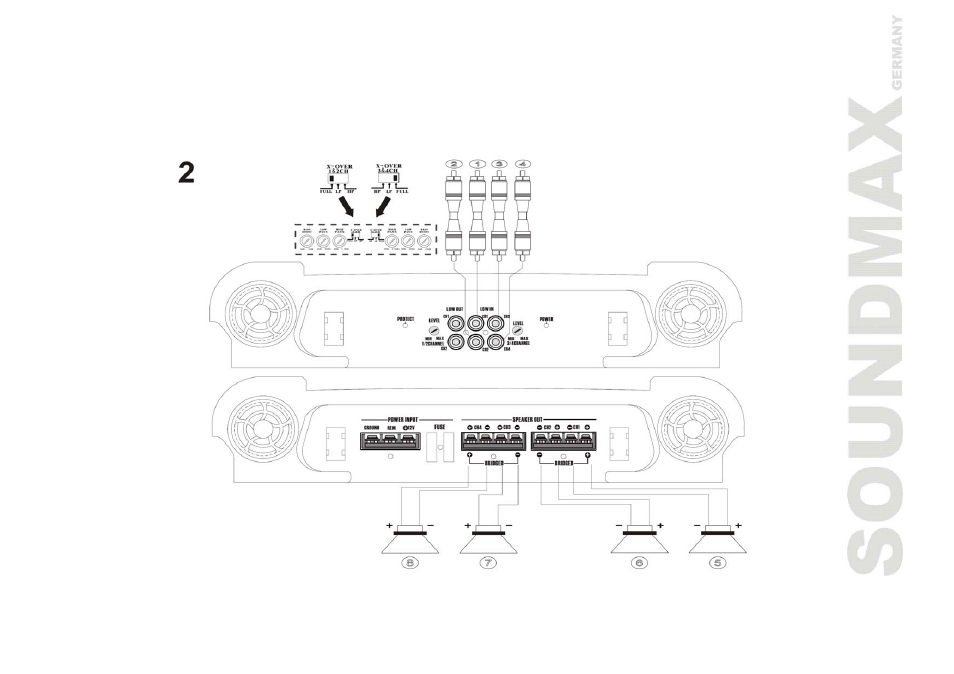

Fig.2 4-channel mode
Connect and set the amplifier as shown in Fig. 2, when the stereo has four outputs and the unit
is used to drive four loudspeakers.
(1) To the car radio, front left output (5) Front left loudspeaker
(2) To the car radio, front right output (6) Front right loudspeaker
(3) To the car radio, rear left output (7) Rear left loudspeaker
(4) To the car radio, rear right output (8) Rear right loudspeaker
Fig. 2
