Installation
MOUNTING:
1. After reading precaution, decide where you are going to install the unit. Also, see Fig.1.
2. Once the location has been determined, remove the plastic decorative panels from left and right sides of
amplifier then place the amplifier in position. Using a felt tip pen or pencil mark the four holes to be drilled for
mounting. NEVER use the amplifier as a template for drilling. It is very easy to damage the amplifier surface in
manner.
3. Remove amplifier with a getting back the plastic panels. Drill four 3.5 mm. Diameter holes into mounting
surface on steel panel. If you want mounting the MDF or wood panel, drill four 3.0m/m diameter holes into
mounting surface.
4. Mount the amplifier using the supplied 4 self-threading screws.

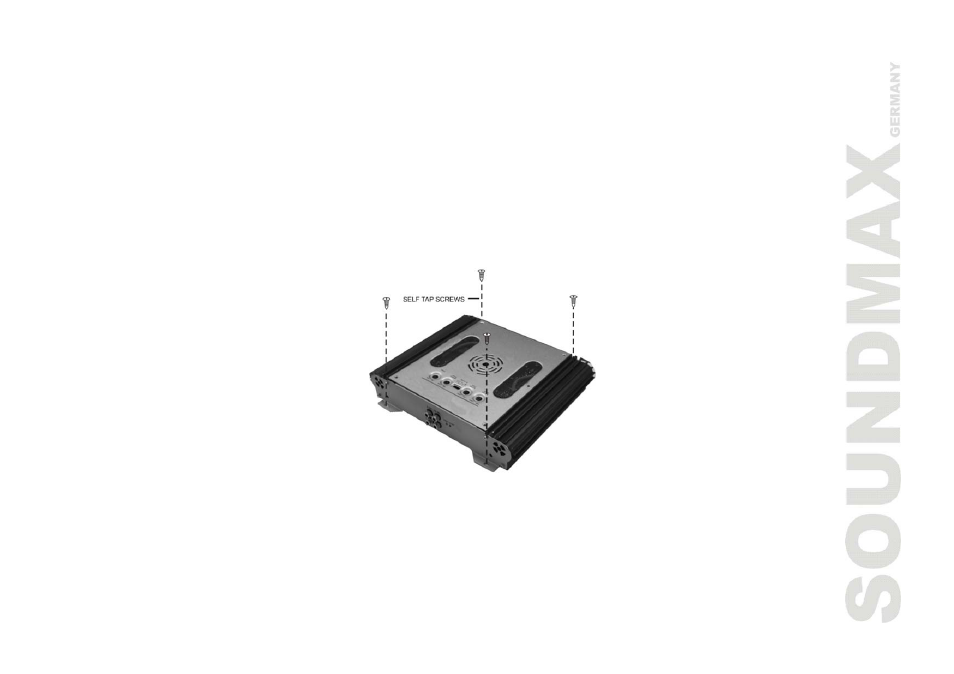

INSTALLATION DIAGRAM
Fig.1
