SOUNDMAX SM-SA604 10
Fig. 3/4 3- channel mode
In the 3-channel mode, use high pass filter to regulate channels 1/2 and use low pass filter to regulate
channels 3/4. Chapter Operation elements and in / outputs describes how to set the filters.
FIG. 3

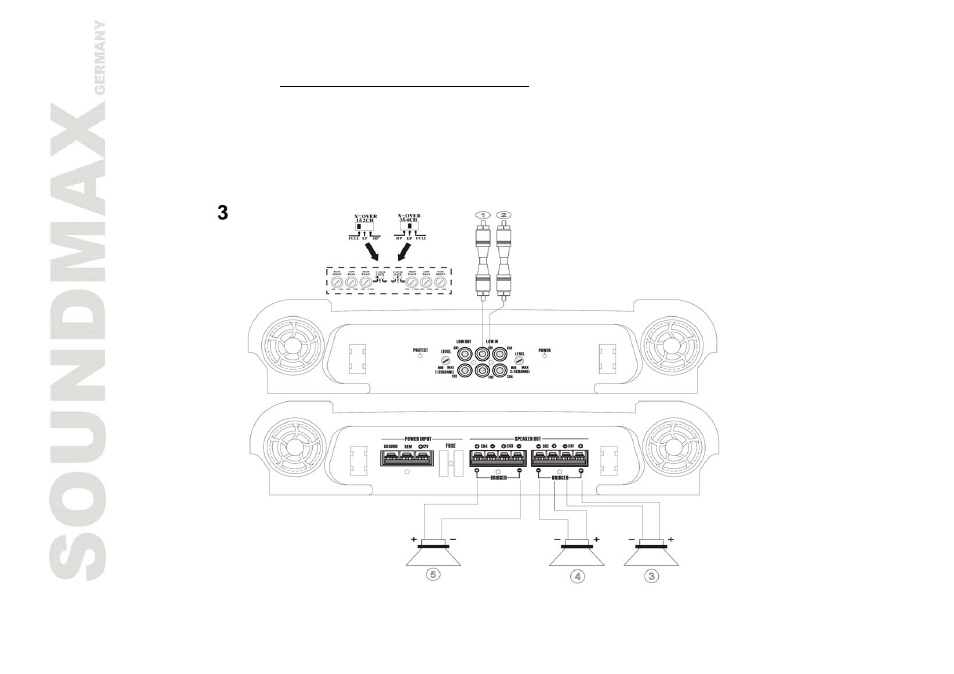

Connect and set the amplifier as shown in Fig. 3 if the stereo has two outputs and the unit is used
to drive two stereo satellite loudspeakers and a subwoofer
(1) To the car radio, left output (4) Right satellite loudspeaker
(2) To the car radio, right output (5) Subwoofer
(3) Left satellite loudspeaker
Fig. 3
