SOUNDMAX
SM-SA604
13

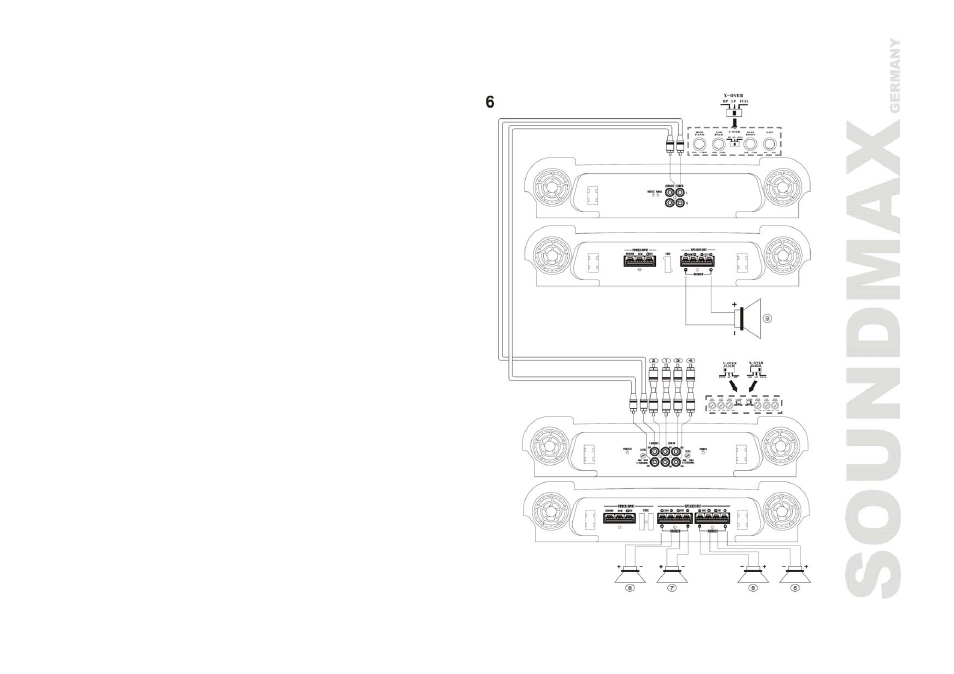

Fig. 6 Use the amplifier to drive four satellite
loudspeakers and a subwoofer with using an
additional 2-channel amplifier
(1) To the car radio, front left output
(2) To the car radio, front right output
(3) To the car radio, rear left output
(4) To the car radio, rear right output
(5) Front left loudspeaker
(6) Front right loudspeaker
(7) Rear left loudspeaker
(8) Rear right loudspeaker
(9) Subwoofer
Fig. 6
