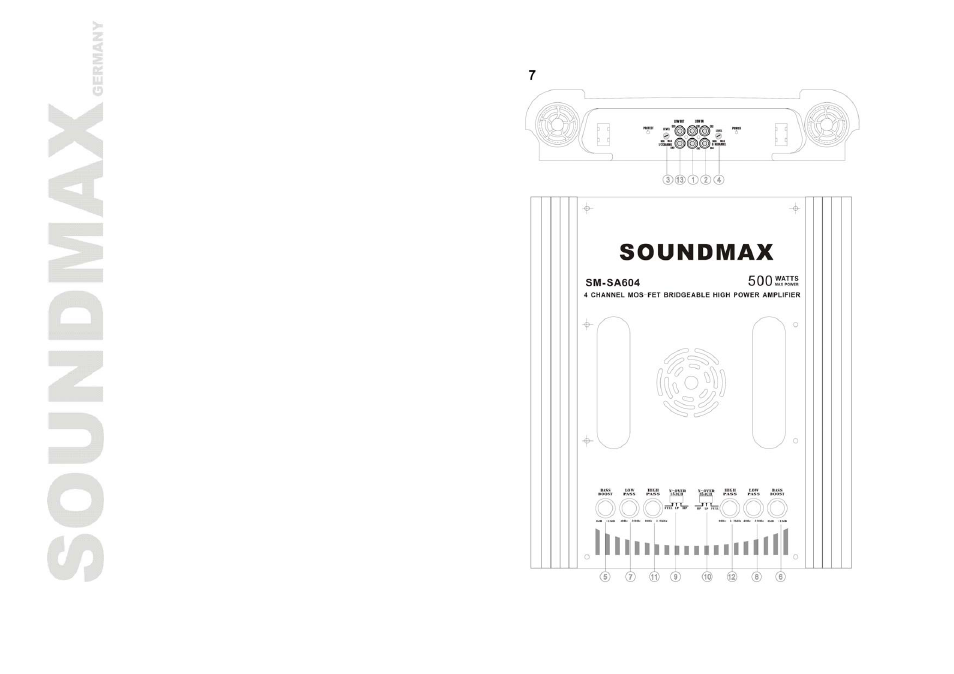

Fig.7 Operating elements and in/outputs
(1) Low-level inputs (channel 1 /2, front)
(2) Low-level inputs (channel 3 /4, rear)
(3) Input-level control channel 1 /2
(4) Input-level control channel 3 /4
(5) Bass-boost control (channel 1 /2, front)
(6) Bass-boost control (channel 3 /4, rear)
(7) Cross-over control for the low pass (channel 1 /2)
(8) Cross-over control for the low pass (channel 3 /4)
(9) HPF (high pass filter)/LPF (low pass filter)/OFF
option switch for channel 1 /2
(10) HPF (high pass filter)/LPF (low pass filter)/OFF
option switch for channel 3 /4
(11) Cross-over frequency for control for the high pass
(channel 1 /2)
(12) Cross-over frequency for control for the high pass
(channel 3 /4)
(13) Low level outputs (channel 1 /2)
Fig. 7
