FIG. 4

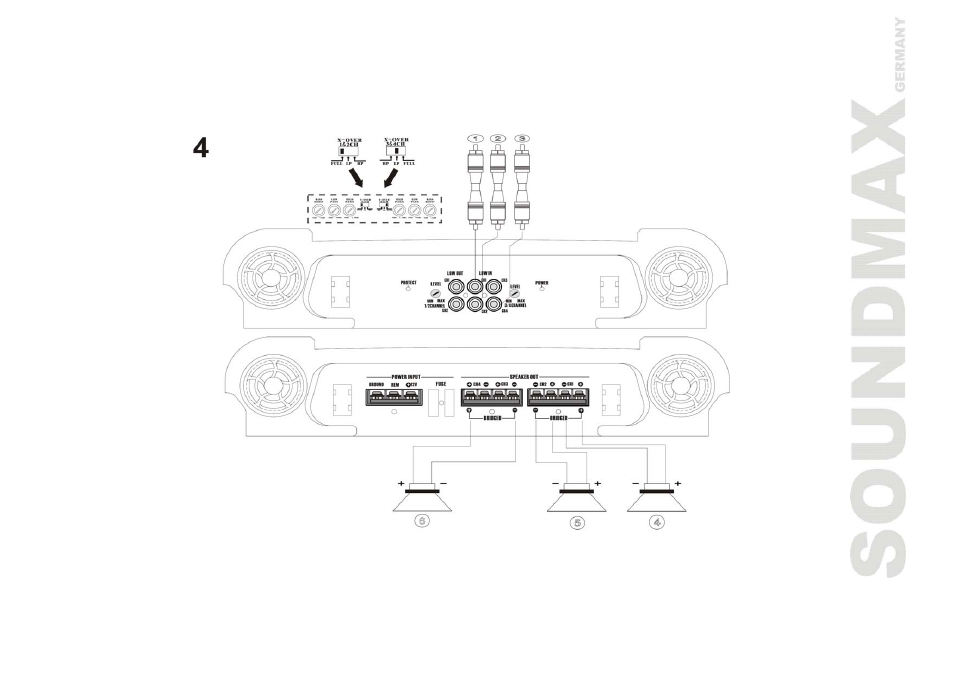

Connect and set the amplifier as shown in Fig. 4 if the system has two stereo outputs and one car
radio output and is used to drive two stereo satellite loudspeakers and a subwoofer.
(1) To the car radio, left output (4) Left satellite loudspeaker
(2) To the car radio, right output (5) Right satellite loudspeaker
(3) To the car radio, subwoofer output (6) Subwoofer
Fig. 4
