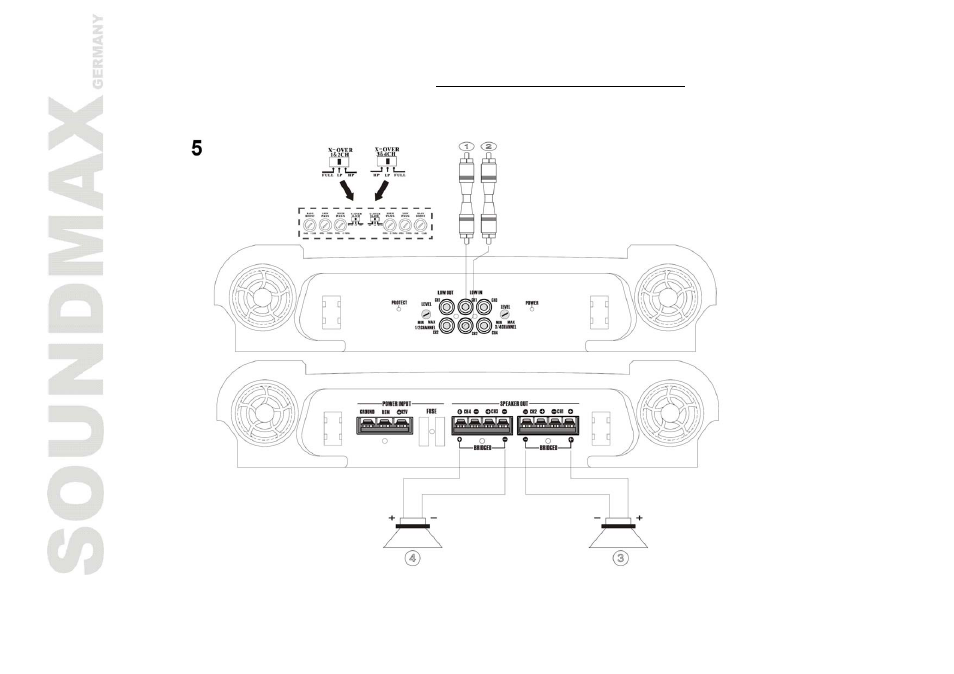

Fig. 5 2- channel mode
If the amplifier needs high power output to drive two subwoofers, connect and set it as shown in Fig. 5.
The usage of the low-pass filter is described in Operation elements and in / outputs chapter
(1) To the car radio, left output (3) Subwoofer
(2) To the car radio, right output (4) Subwoofer
