mmtmm
1
’mmmmmmm^m
w°
miwm
)
VIDEO OUT ^ VIDEO IN {^^lt)
AUDOOUT ^ AUDIOiNi^^i)
2
mmmmm/^$nmAm^ipmmm^m^mm
mmm°
3 ^
[VCR/CAMERA]
M
’
5l}f
[VCR]
°
• [VCR]t^A'MOA№ “
4
« ( - > 6 8 )
5^RFfiis^(vw-RF7E -
^
Watching Playback on a TV Set
By connecting the Movie Camera to a TV, you can watch
playback of the recorded scenes on the TV screen.
Before connecting, turn off both the Movie Camera and
the TV for safety’s sake.
1

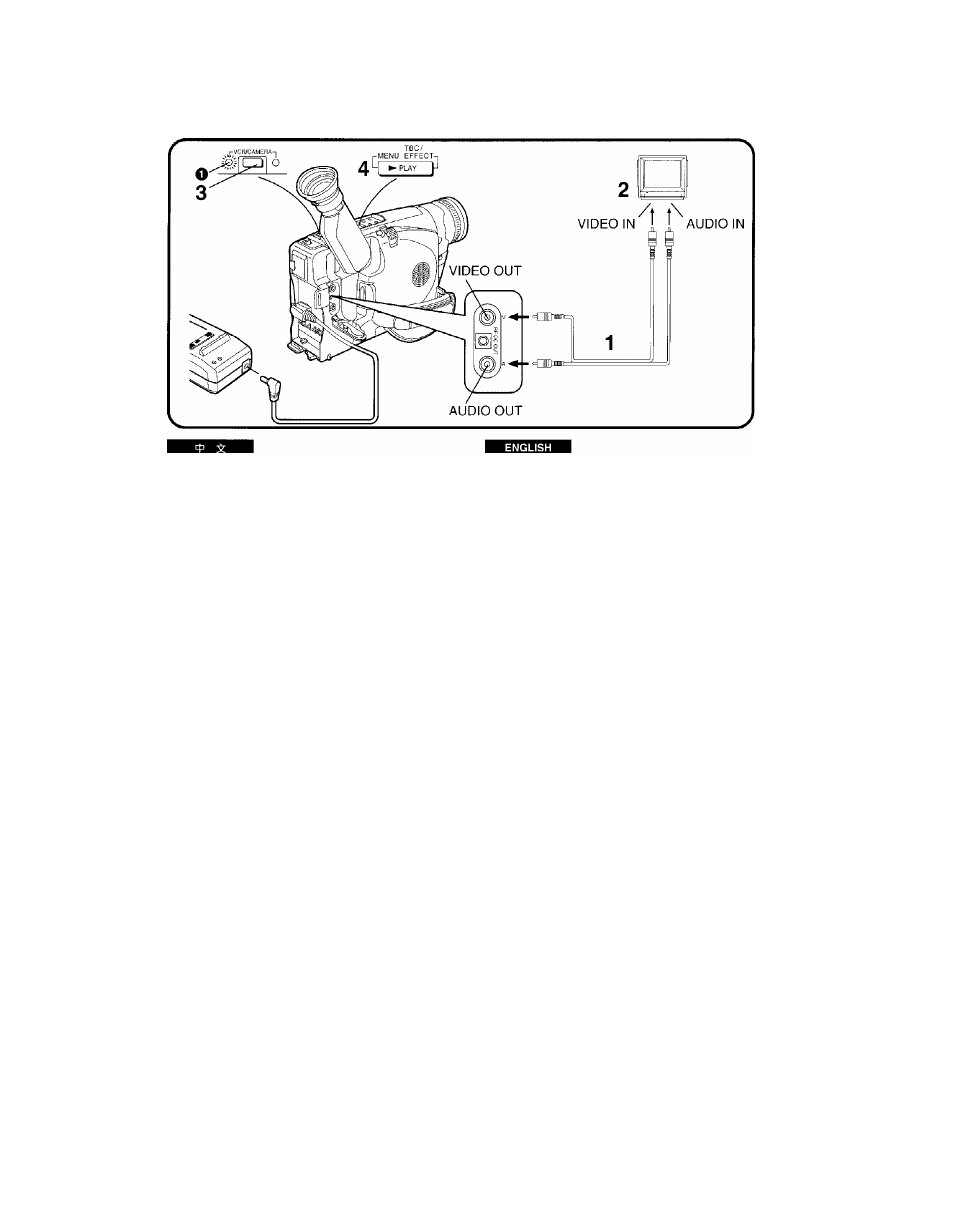

Use the AV Cable (supplied) to connect the
Movie Camera with the TV.
Movie Camera
TV (AV Input Sockets)
VIDEO OUT
VIDEO IN
AUDIO OUT --------------- > AUDIO IN
2
Select the channel on the TV which
corresponds to the video/audio input
sockets used for connecting.
(Refer to the operating instructions of your TV).
3
4
Press the [VCR/CAMERA] Button to select
the VCR Mode.
•The [VCR] Lamp O lighfS'
Start playback on the Movie Camera. (-> 68)
If your TV is not equipped with AV Input Sockets, the RF
Adaptor (VW-RF7E; optional) is necessary.
Consult your dealer.
74
