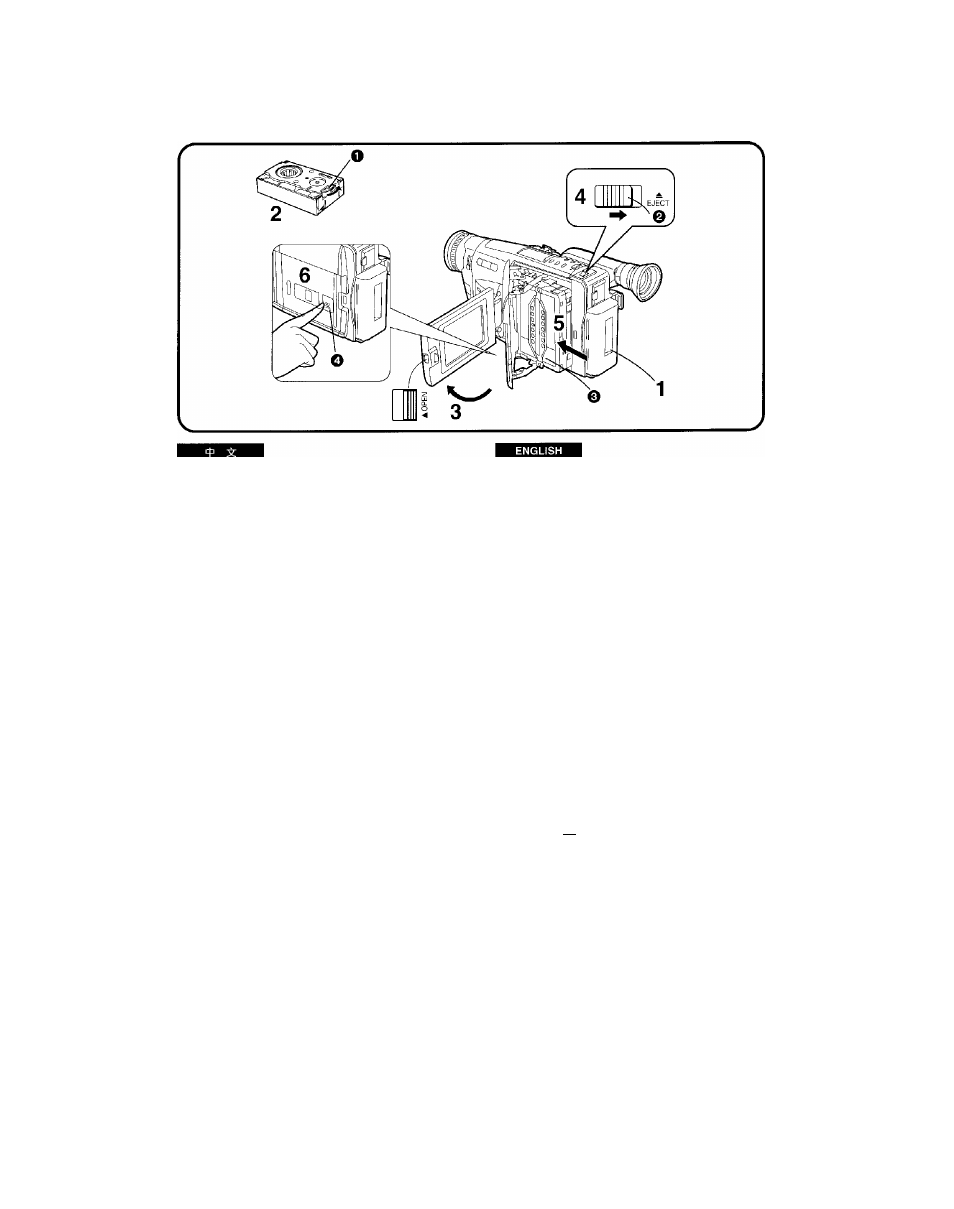

Inserting the Cassette
1
Connect the AC Adaptor or attach a
charged Battery. (-> 18, 24)
2
Turn the cog wheel
Q
tighten the tape.
3
Slide the [AOPEN] Lever to the left and
simultaneously open the LCD Monitor in the
direction of the arrow approximately 90°.
• Be sure to keep the LCD Monitor in its vertical
position, so that Cassette Compartment Cover,
when it opens, does not hit the LCD Monitor.
4
Slide the
[A
EJECT] Lever Q in the
direction of the arrow.
5
Insert the cassette with the cassette
window 0 facing outward and push it all
the way in.
6
Close the Cassette Compartment by
pressing the [LOCK] Button Q.
• It is not possible to take out the cassette during
recording.
• Do not insert and take out the cassette repeatedly. This
could cause the tape to become loose or damaged.
• If a cassette with broken out erasure prevention tab is
inserted, the [fg^] Indication flashes.
Ejecting the Cassette
Slide the EJECT] Lever Q In the direction of the
arrow and pull out the cassette.
Close the Cassette Compartment by pressing the [LOCK]
Button ©.
