1 B.A.S.S. (Bass Action Selector System) button
When this button is pressed in to the MUSIC position,
the bass sound in audio software is well reproduced.
By pressing the button again so that it pops out at the
MOVIE position, the bass sound in video software is
well reproduced.
2 HIGH CUT control
Adjusts the high frequency cut off point.
Frequencies higher than the frequency selected by this
control are all cut off (and no output).
* One graduation of this control represents 10 Hz.
3 STANDBY/ON button
Press this button to turn on the power when the
POWER switch is set in the ON position. (The power
indicator lights up in green.)
Press again to set the subwoofer in the standby mode.
(The power indicator goes off.)
4 Power indicator
Lights up in green while the subwoofer is on.
Lights up in red while the subwoofer is set in the
standby mode by the operation of the automatic power-
switching function.
Goes off when the subwoofer is set in the standby
mode.
5 VOLUME control
Adjusts the volume level. Turn the control clockwise to
increase the volume, and counterclockwise to decrease
the volume.
6 VOLTAGE SELECTOR switch
(Asia and General models only)
If the preset setting of the switch is incorrect, set the
switch to the proper voltage (110/120/220/230-240V)
of your area.
Consult your dealer if you are unsure of the correct
setting.

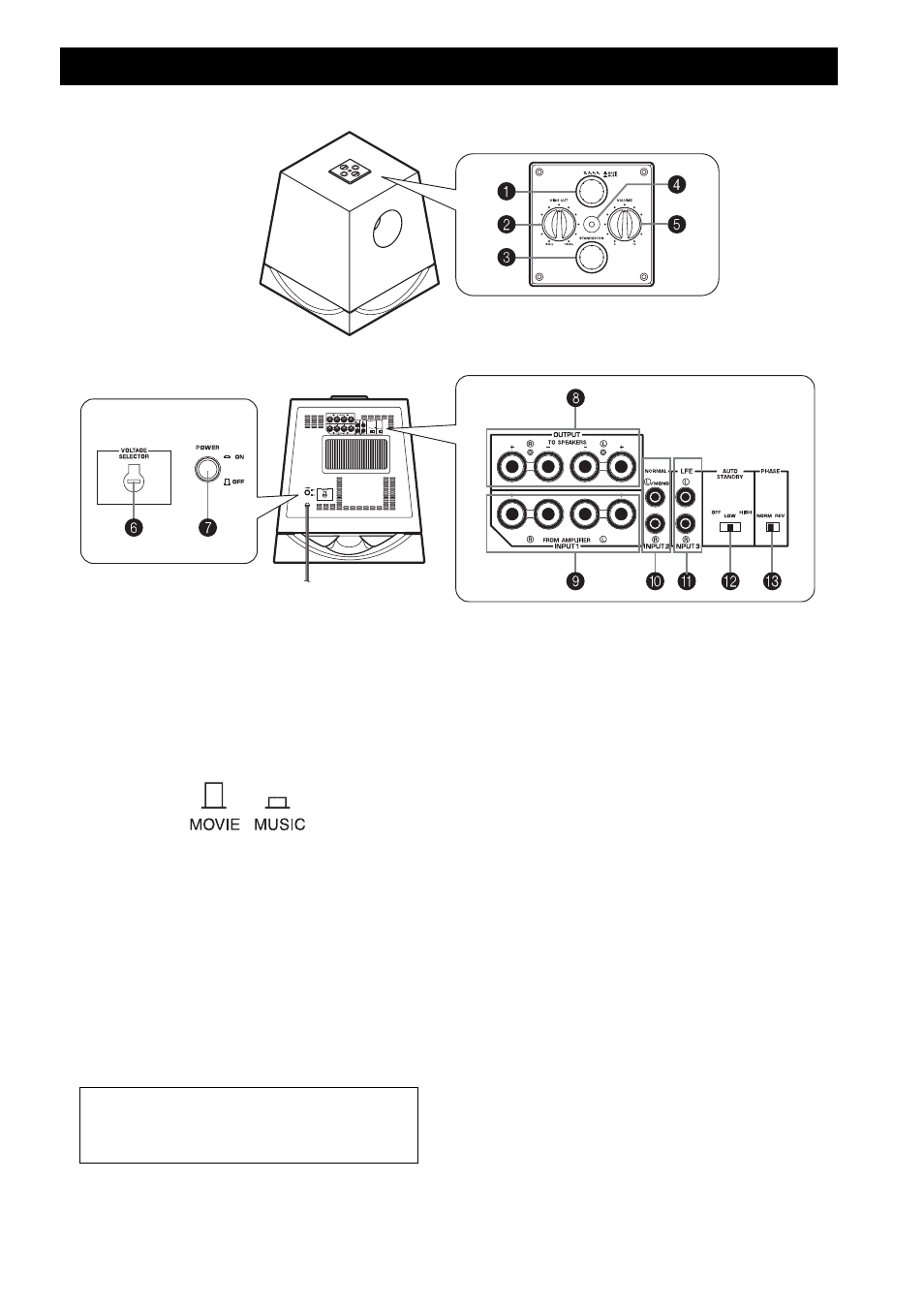

CONTROLS AND THEIR FUNCTIONS
Rear panel
(General model)
Top panel
Front panel
Standby mode
The subwoofer is still using a small amount of
power in this mode.
WARNING
Be sure to unplug the subwoofer before setting the
VOLTAGE SELECTOR switch correctly.
