6
En
Choose one of the following two connecting methods most suitable for your audio system.
■ Choose (pages 6-7) if your amplifier has line output (pin jack) terminal(s)
■ Choose (pages 8-9) if your amplifier has no line output (pin jack) terminal
(s)
Caution: Unplug the subwoofer and other audio/video components before making
connections.
Notes
• All connections must be correct, that is to say L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer
to the owner’s manual of your component to be connected to the subwoofer.
• After all connections are completed, plug in the subwoofer and other audio/video components.
• To connect to an amplifier (or AV receiver), connect the SUBWOOFER (or LOW PASS, etc.) terminal on the rear of
the amplifier (or AV receiver) to the /MONO INPUT2 terminal of the subwoofer.
• When connecting the subwoofer to the SPLIT SUBWOOFER terminals on the rear of the amplifier, be sure to connect
the /MONO INPUT2 terminal to the “L” side and the INPUT2 terminal to the “R” side of the SPLIT
SUBWOOFER terminals.
Notes
• Some amplifiers have line output terminals labeled PRE OUT. When you connect the subwoofer to the PRE OUT
terminals of the amplifier, make sure that the amplifier has at least two sets of PRE OUT terminals. If the
amplifier has only one set of PRE OUT terminals, do not connect the subwoofer to the PRE OUT terminals.
Instead, connect the subwoofer to the speaker output terminals of the amplifier. (Refer to pages 8-9.)
• When connecting to a monaural line output terminal of the amplifier, connect the /MONO INPUT2 terminal.
• When connecting to line output terminals of the amplifier, other speakers should not be connected to the
OUTPUT terminals on the rear panel of the subwoofer. If connected, they will not produce sound.
■ Using one subwoofer
CONNECTIONS
1
2

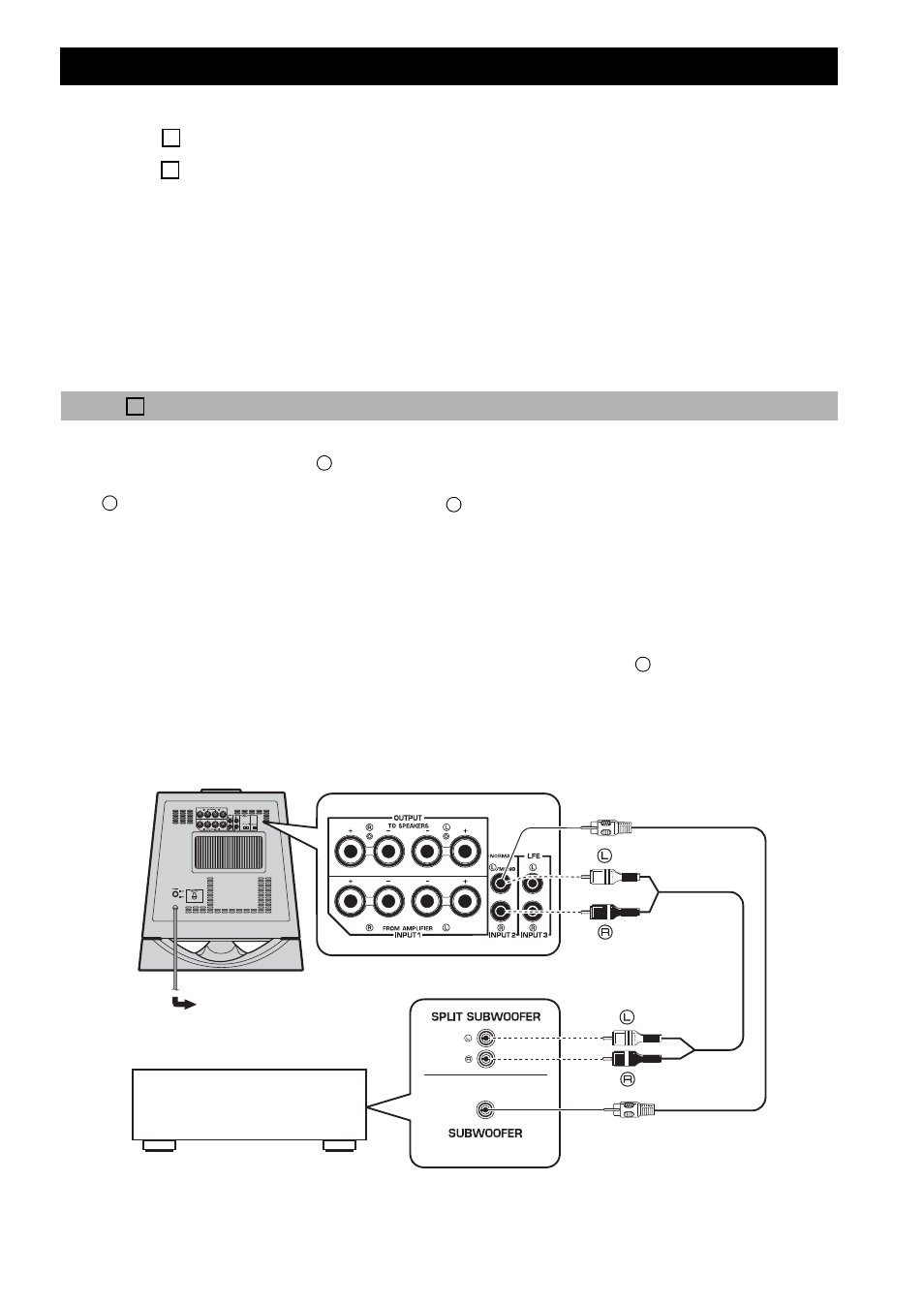

Connecting to line output (pin jack) terminals of the amplifier 1
L
L R
L
Subwoofer
Amplifier
To AC outlet
Mono pin cable
(not included)
Audio pin cable
(not included)
