CONNECTIONS
En
gli
s
h
9
En
If your amplifier has only one set of front speaker output terminals.
Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the
OUTPUT terminals of the subwoofer to the front speakers.

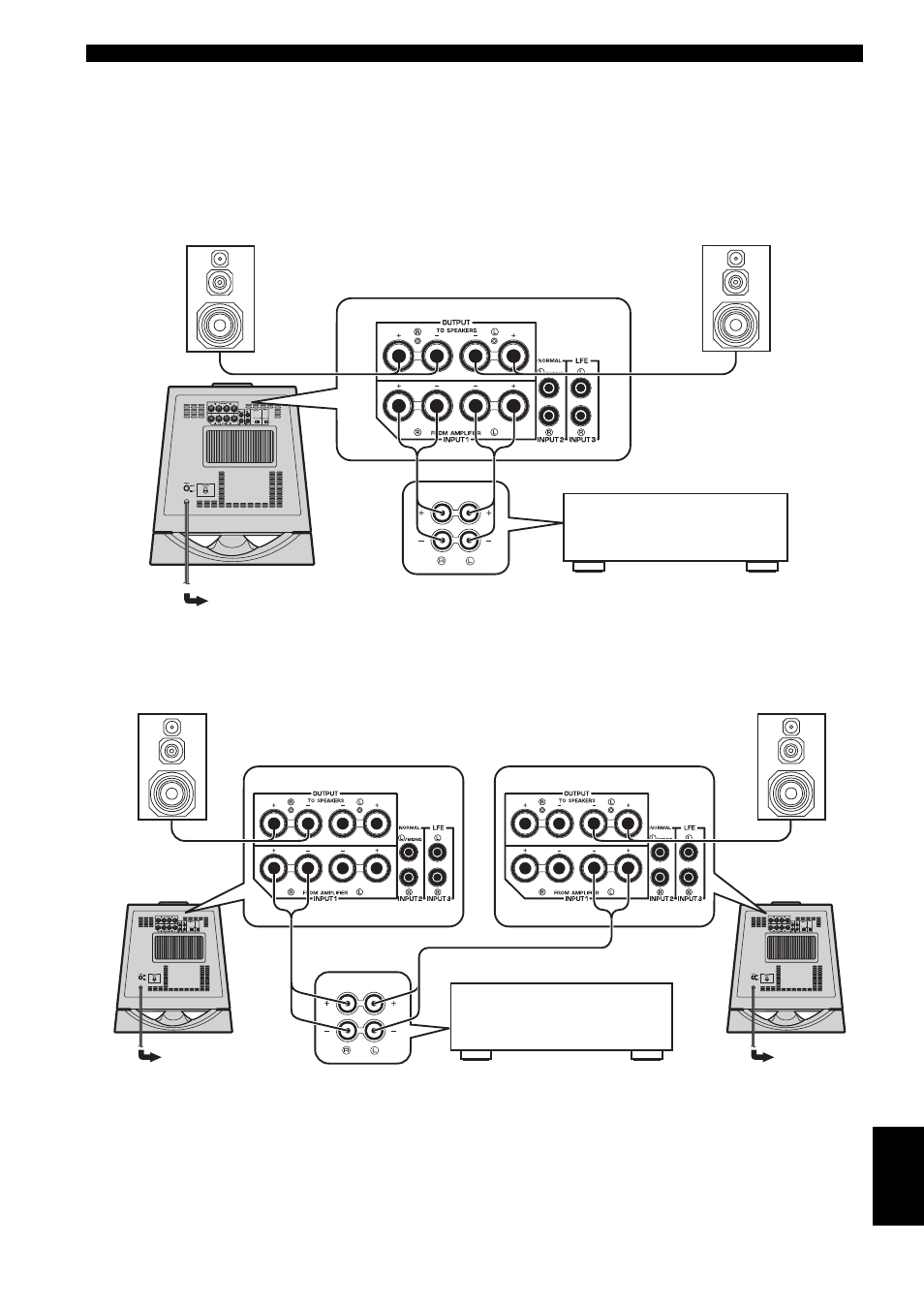

■ Using one subwoofer (with speaker cables)
■ Using two subwoofers (with speaker cables)
Right front speaker Left front speaker
Subwoofer
Amplifier
Speaker output
terminals To AC outlet
Right front speaker Left front speaker
Subwoofer
Speaker output
terminals
To AC outlet To AC outlet
Amplifier
Subwoofer
