11
GB
4-1-2. ON/OFF operations
(1) Select the group of collection state to be operated with the step "Group selection operation"
above.
(2) Press the ON/OFF switch.
will appear at the ON/OFF status display when the controller is running. Nothing will
appear when the controller is stopped.
4-1-3. Stopping the schedule operation collectively for all
groups
(1) Hold down the TIMER ON/OFF switch for three seconds.
will appear at the control status display section when the schedule operation is
stopped, and the schedule operation will stop.
will not appear during schedule operation.
When an emergency stop is input, will flicker.
The TIMER ON/OFF switch operation is invalid while is flickering.
4-1-4. Display
(1) PROHIBIT will appear when "operation prohibit" is set from another system controller. If ON/OFF
operation prohibit is set, the operation cannot be started or stopped from this controller.
(2) If "operation mode changeover limit (cooling limit) is set from another system controller, “ ” will
flicker.
“
” will flicker when "operation mode changeover limit (heating limit)" is set.

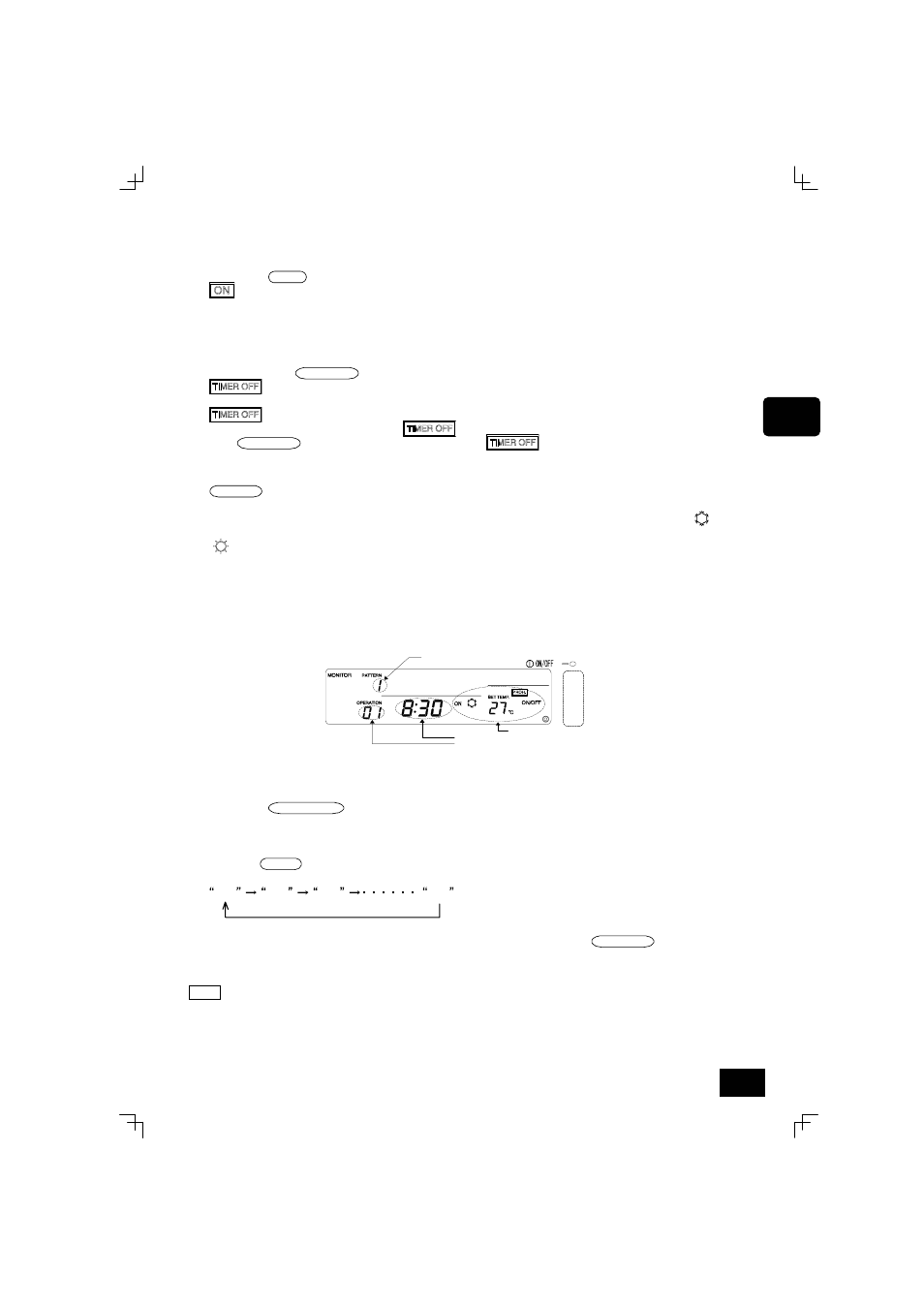

4-2. PROGRAM MONITOR screen
• The set program details are monitored.
Operation time
Operation No.
Operation details
Pattern No.
Monitoring the set program details
(1) Open the PROGRAM MONITOR screen.
Press the MONITOR/SET switch on the Normal screen. ("MONITOR" will appear at the upper
left when the screen is opened.)
(2) Set the pattern No.
The pattern No. displayed at the pattern No. display section will change as shown below each
time the
PATTERN switch is pressed. (Patterns that are not set will not appear.)
1 2 3 9
(3) Set the operation No.
The operation No. will change in the order of set times each time the OPERATION switch is
pressed. ( Operation numbers that are not set will not appear.)
(4) The details of the program having the set pattern and operation numbers will appear.
NOTE On this screen, each operation is sorted and displayed in order of the set time.
