10
4. Operation methods
4-1. Normal screen
(COLLECTIVE/GROUP STATUS DISPLAY SCREEN)
• Display Schedule pattern for each group (Only on the Group Status Display screen).
* Current time/day
* Air conditioner ON/OFF state
* Limits and prohibit states set from other system controllers
* Control state
• Operation The air conditioner can be turned ON or OFF collectively or in group units.
The schedule function can be stopped for all groups collectively.

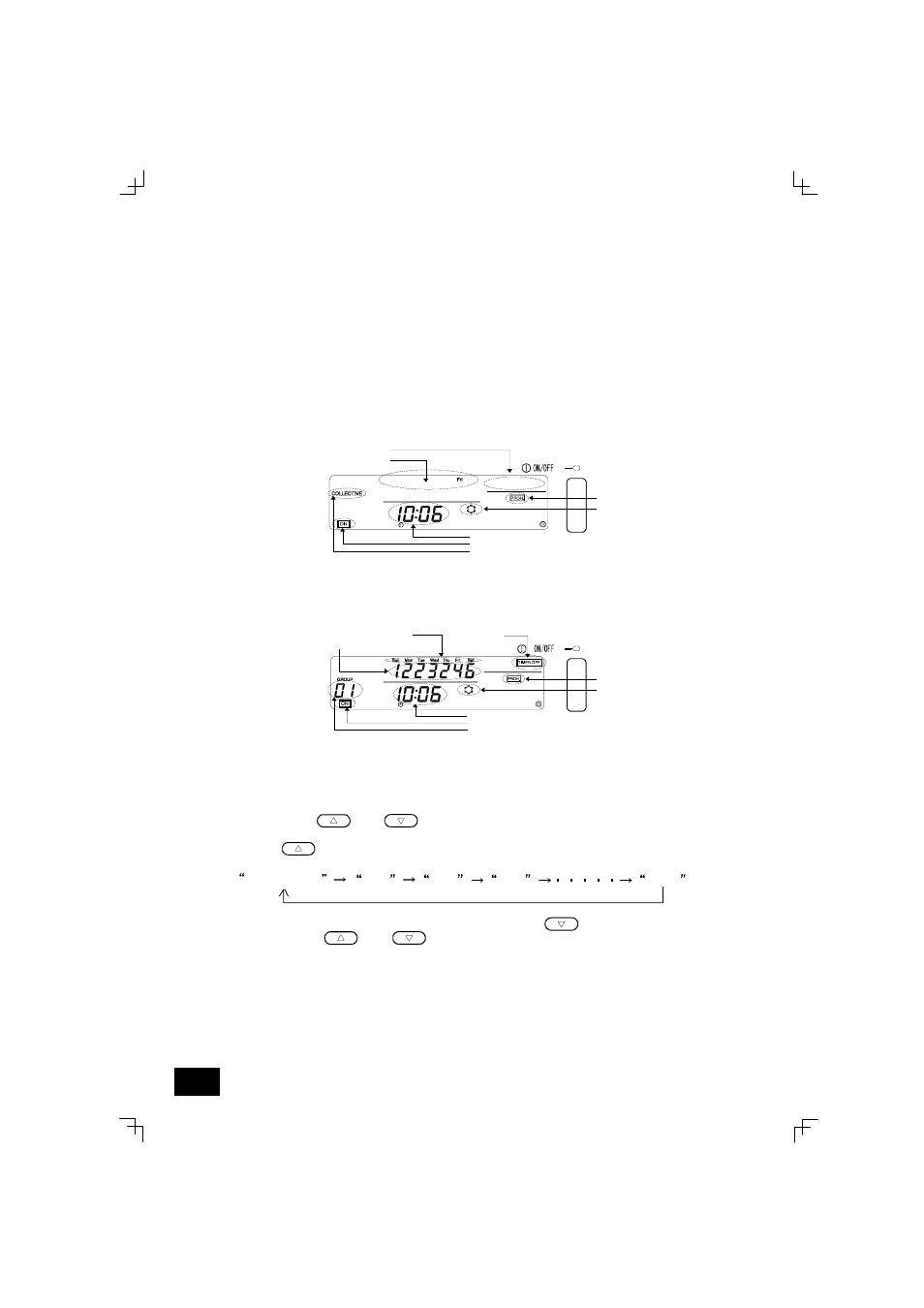

[COLLECTIVE DISPLAY SCREEN]
Current day
(lit)
Control status
Current time
ON/OFF status
Collective status
Operation prohibit state
Operation mode changeover
limit state
[GROUP STATUS DISPLAY SCREEN]
Current time
ON/OFF status
Group number
Control status All days are lit (current day is flickered.)
Schedule pattern No.
Operation prohibit state
Operation mode changeover
limit state
4-1-1. Group selection operation
(1) Press the GROUP and switches to select the group to be operated.
The group No. displayed at the group No. display section will change as shown below each time
the GROUP
switch is pressed.
Collective 1 2 3 50
The group No. will change in reverse each time the GROUP switch is pressed.
When the GROUP and switches are pressed simultaneously, the "Collective
Status Display screen" will open regardless of the selected group No.
When "Collective" is selected, the "Collective Display screen" will open.
When "Group No." is selected, the screen for the selected group will open.
When the Group Status Display screen is opened, the weekly schedule pattern for the selected
group will display. The current day will flicker.
If no operations are made on the Group Status Display screen for ten minutes, the display will
switch to the Collective Status Display screen.
