7
GB

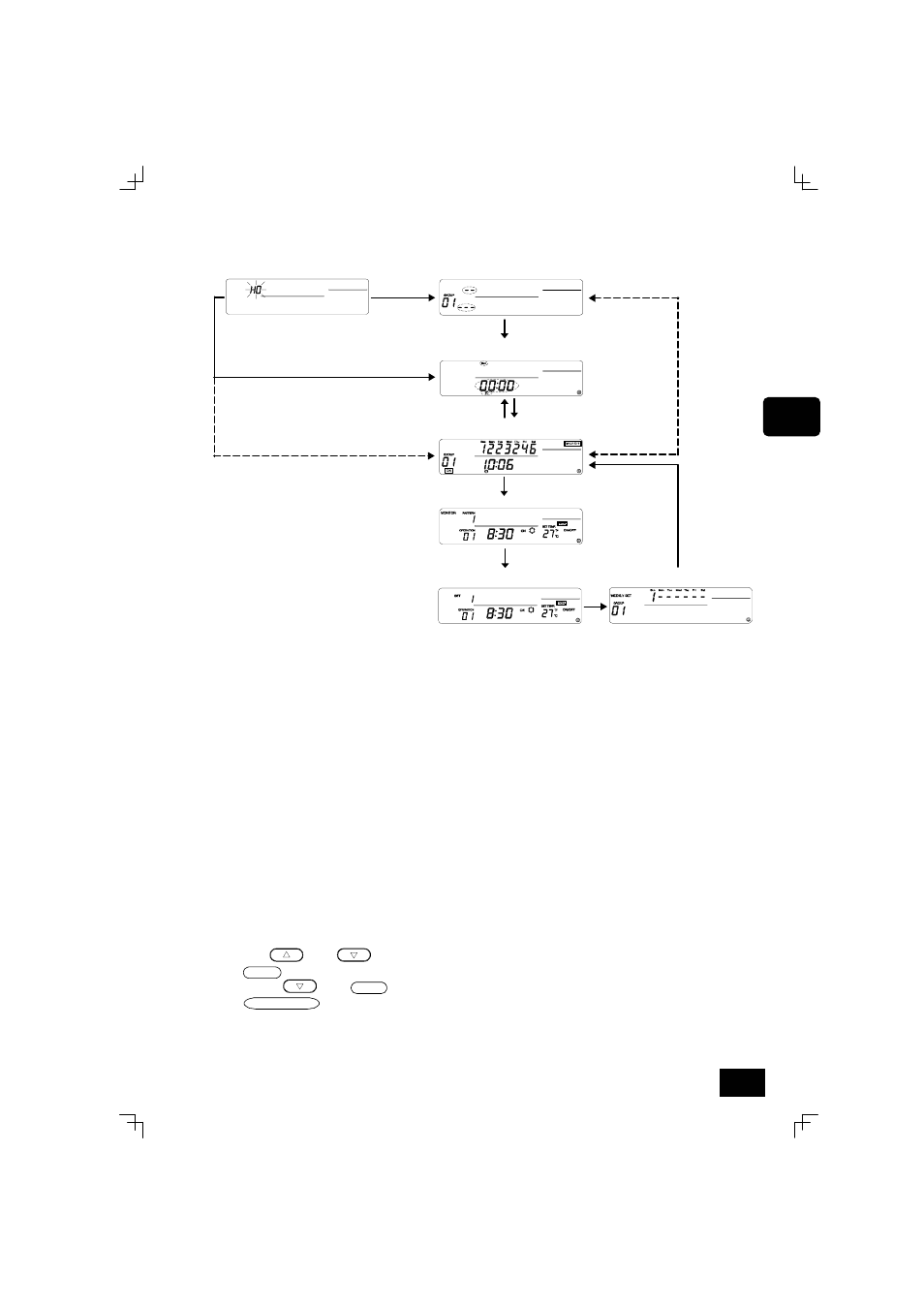

2-4. Screen configuration
(1) POWER ON screen (2) GROUP SETTING SCREEN (page 19)
When this
controller is
master
W
hen t
his
c
ont
ro
ller
is
s
lav
e
(4) NORMAL SCREEN (page 10)
(3) TIME/DAY SETTING SCREEN
(page 12)
(5) PROGRAM MONITOR SCREEN (page 11)
(7) WEEKLY PROGRAM
SETTING SCREEN (page 14)
(6) PROGRAM SETTING SCREEN
(page 12)
(B) (A)
(D)
(D)
(D)
When time is set
(C)
No time setting
When time is set
(D)
No time setting
Explanation of screens
1. POWER ON SCREEN
"H0" flickers if there is no group information. "H1" flickers if there is group information.
2. GROUP SETTING SCREEN
When this controller is the master, the group is set and changed.
3. TIME/DAY SETTING SCREEN
The current time and day are set.
4. NORMAL SCREEN
After setting the schedule, schedule operation is carried out with this screen.
In addition to schedule operation, the units can be started and stopped collectively or in groups.
5. PROGRAM MONITOR SCREEN
The set program contents are monitored.
6. PROGRAM SETTING SCREEN
The details of the schedule operation are set and changed.
7. WEEKLY PROGRAM SETTING SCREEN
The pattern set on the PROGRAM SETTING SCREEN is set and changed in day-units for each group.
Explanation of transition operations
A: Press time and switches
B: Press ON/OFF .
C: Press TEMP. and CLEAR switches
D: Press MONITOR/SET switch
