62
■ Macintosh (Logic Pro7/D.P.5):
Logic Pro7
D.P.5
Output 1 → DAW TO ST-L 5.1(L) CH1 Direct Out → Input 1
Output 2 → DAW TO ST-R 5.1(R) CH2 Direct Out → Input 2
Output 3 → Input Channel 9 5.1(C) CH3 Direct Out → Input 3
Output 4 → Input Channel 10 5.1(LFE) CH4 Direct Out → Input 4
Output 5 → Input Channel 11 5.1(Ls) CH5 Direct Out → Input 5
Output 6 → Input Channel 12 5.1(Rs) CH6 Direct Out → Input 6
Output 7 → Input Channel 1 CH7 Direct Out → Input 7
Output 8 → Input Channel 2 CH8 Direct Out → Input 8
Output 9 → Input Channel 3 CH9 Direct Out → Input 9
Output 10 → Input Channel 4 CH10 Direct Out → Input10
Output 11 → Input Channel 5 CH11 Direct Out → Input11
Output 12 → Input Channel 6 CH12 Direct Out → Input12
Output 13 → Input Channel 7 REC BUS L → Input13
Output 14 → Input Channel 8 REC BUS R → Input14
Output 15 → DAW TO AUX-L STEREO BUS L → Input15
Output 16 → DAW TO AUX-R STEREO BUS R → Input16
Output 1 → DAW TO ST-L CH1 Direct Out → Input 1
Output 2 → DAW TO ST-R CH2 Direct Out → Input 2
Output 3 → Input Channel 5 CH3 Direct Out → Input 3
Output 4 → Input Channel 6 CH4 Direct Out → Input 4
Output 5 → Input Channel 7 CH5 Direct Out → Input 5
Output 6 → Input Channel 8 CH6 Direct Out → Input 6
Output 7 → Input Channel 1 CH7 Direct Out → Input 7
Output 8 → Input Channel 2 CH8 Direct Out → Input 8
Output 9 → Input Channel 3 REC BUS L → Input 9
Output10 → Input Channel 4 REC BUS R → Input10
Output11 → DAW TO AUX-L STEREO BUS L → Input11
Output12 → DAW TO AUX-R STEREO BUS R → Input12
mLAN Network:Audio In1 1 → DAW TO ST-L 5.1(L) CH1 Direct Out → mLAN Network:Audio Out 1 1
mLAN Network:Audio In2 2 → DAW TO ST-R 5.1(R) CH2 Direct Out → mLAN Network:Audio Out 2 2
mLAN Network:Audio In3 3 → Input Channel 9 5.1(C) CH3 Direct Out → mLAN Network:Audio Out 3 3
mLAN Network:Audio In4 4 → Input Channel 10 5.1(LFE) CH4 Direct Out → mLAN Network:Audio Out 4 4
mLAN Network:Audio In5 5 → Input Channel 11 5.1(Ls) CH5 Direct Out → mLAN Network:Audio Out 5 5
mLAN Network:Audio In6 6 → Input Channel 12 5.1(Rs) CH6 Direct Out → mLAN Network:Audio Out 6 6
mLAN Network:Audio In7 7 → Input Channel 1 CH7 Direct Out → mLAN Network:Audio Out 7 7
mLAN Network:Audio In8 8 → Input Channel 2 CH8 Direct Out → mLAN Network:Audio Out 8 8
mLAN Network:Audio In9 9 → Input Channel 3 CH9 Direct Out → mLAN Network:Audio Out 9 9
mLAN Network:Audio In10 10 → Input Channel 4 CH10 Direct Out → mLAN Network:Audio Out10 10
mLAN Network:Audio In11 11 → Input Channel 5 CH11 Direct Out → mLAN Network:Audio Out11 11
mLAN Network:Audio In12 12 → Input Channel 6 CH12 Direct Out → mLAN Network:Audio Out12 12
mLAN Network:Audio In13 13 → Input Channel 7 REC BUS L → mLAN Network:Audio Out13 13
mLAN Network:Audio In14 14 → Input Channel 8 REC BUS R → mLAN Network:Audio Out14 14
mLAN Network:Audio In15 15 → DAW TO AUX-L STEREO BUS L → mLAN Network:Audio Out15 15
mLAN Network:Audio In16 16 → DAW TO AUX-R STEREO BUS R → mLAN Network:Audio Out16 16
mLAN Network:Audio In1 1 → DAW TO ST-L CH1 Direct Out → mLAN Network:Audio Out 1 1
mLAN Network:Audio In2 2 → DAW TO ST-R CH2 Direct Out → mLAN Network:Audio Out 2 2
mLAN Network:Audio In3 3 → Input Channel 5 CH3 Direct Out → mLAN Network:Audio Out 3 3
mLAN Network:Audio In4 4 → Input Channel 6 CH4 Direct Out → mLAN Network:Audio Out 4 4
mLAN Network:Audio In5 5 → Input Channel 7 CH5 Direct Out → mLAN Network:Audio Out 5 5
mLAN Network:Audio In6 6 → Input Channel 8 CH6 Direct Out → mLAN Network:Audio Out 6 6
mLAN Network:Audio In7 7 → Input Channel 1 CH7 Direct Out → mLAN Network:Audio Out 7 7
mLAN Network:Audio In8 8 → Input Channel 2 CH8 Direct Out → mLAN Network:Audio Out 8 8
mLAN Network:Audio In9 9 → Input Channel 3 REC BUS L → mLAN Network:Audio Out 9 9
mLAN Network:Audio In10 10 → Input Channel 4 REC BUS R → mLAN Network:Audio Out10 10
mLAN Network:Audio In11 11 → DAW TO AUX-L STEREO BUS L → mLAN Network:Audio Out11 11
mLAN Network:Audio In12 12 → DAW TO AUX-R STEREO BUS R → mLAN Network:Audio Out12 12
Р
у
сский
Приложение
145.8 515.0
560.8
368 145.31
517.14
[n12]
[n8]

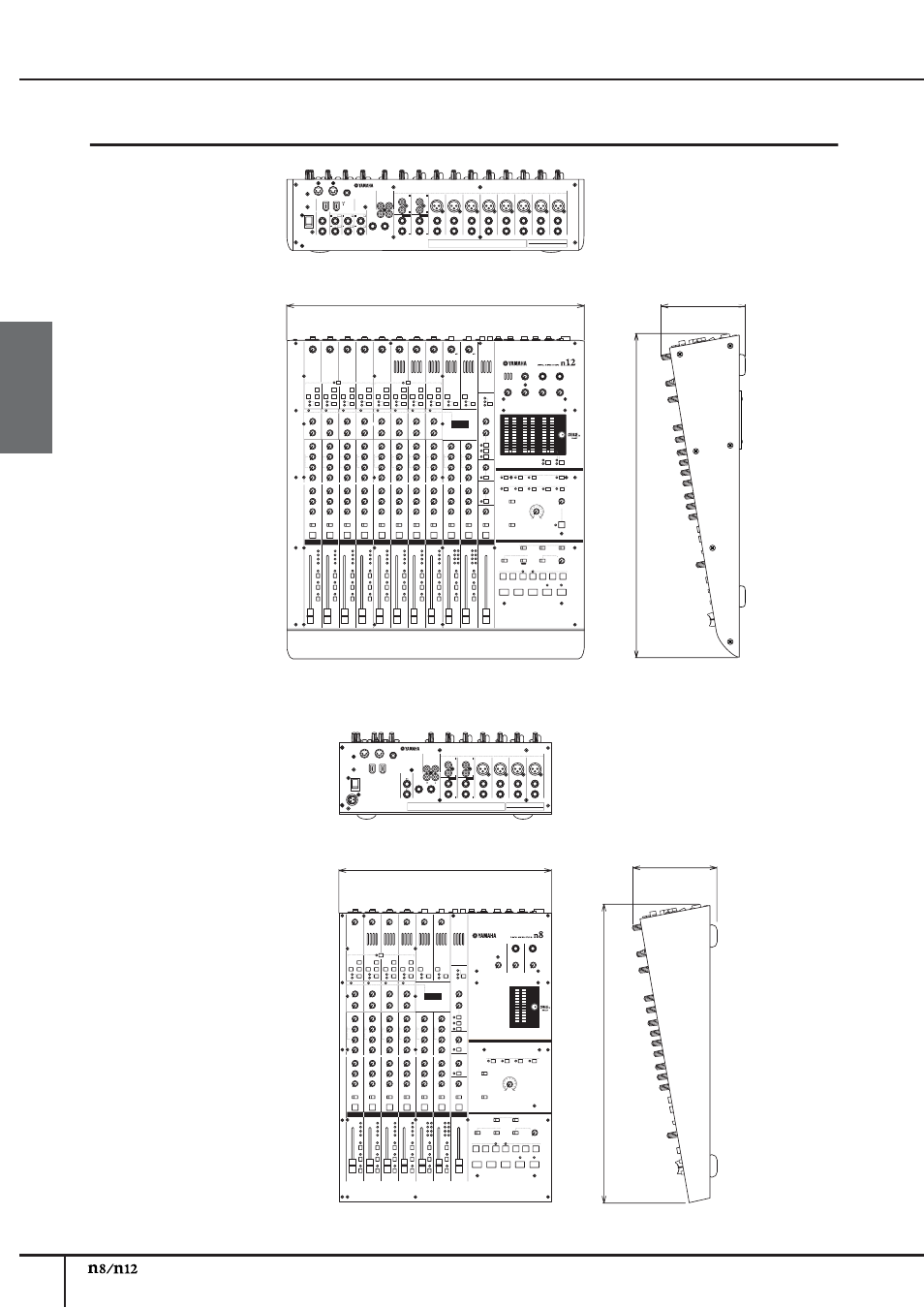

Габаритные размеры
