ENGLISH

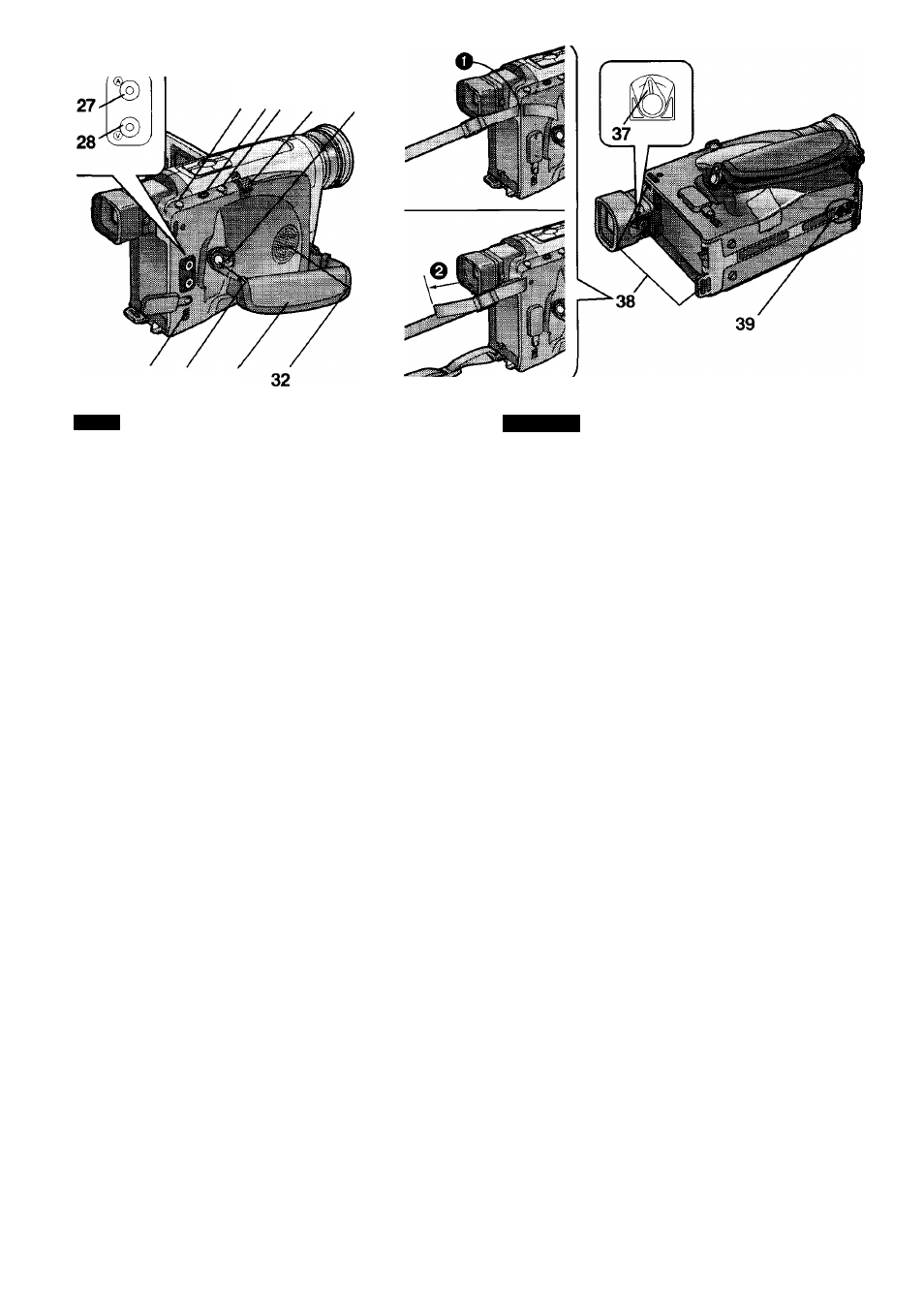

27 Audio Output Socket [®] (-♦ 66,128)
28 Video Output Socket [®] (-» 66,128)
29 DC Input Socket [DC IN] (-► 18)
30 Recording Start/Stop Buttons {~¥ 50)
Use either of these buttons depending on the recording
angle.
31 Grip Belt (-» 44)
32 Speaker (-» 56) (NV-VZ14/VZ15 only)
33 Cassette Eject Button [A EJECT] (-► 40)
34 Date/Time/Title Button [DATE/TITLE]
(-► 48,114,116)
35 Zoom Lever [W/T] (-¥ 54, 74)
Volume Adjustment Lever [—VOL+]
56)
(NV-VZ14/VZ15only)
36 Off/On Mode Selector Switch [CAMERA/OFF/VCR]
(-> 44, 50, 56, 66)
37 Eyepiece Corrector Lever (-► 44)
38 Shoulder Strap Holders
Pull one end of the Shoulder Strap through the Shoulder
Strap Holder O-
Fold the end of the Shoulder Strap back, pull it through the
Shoulder Strap Length Adjuster.
Pull it out more than 2 cm @ from the Shoulder Strap Length
Adjuster so that it cannot slip off.
39 Tripod Receptacle
