ENGLISH
1 »
^nm
“
0i ■
mm'mmmm^mm%m± ■
««litsii -)
ffnii CCD
'=
m&mjnj^^
4
° SiifiD
775*
o
zlb- ^
“ "rf?
5
MSISiiiil»

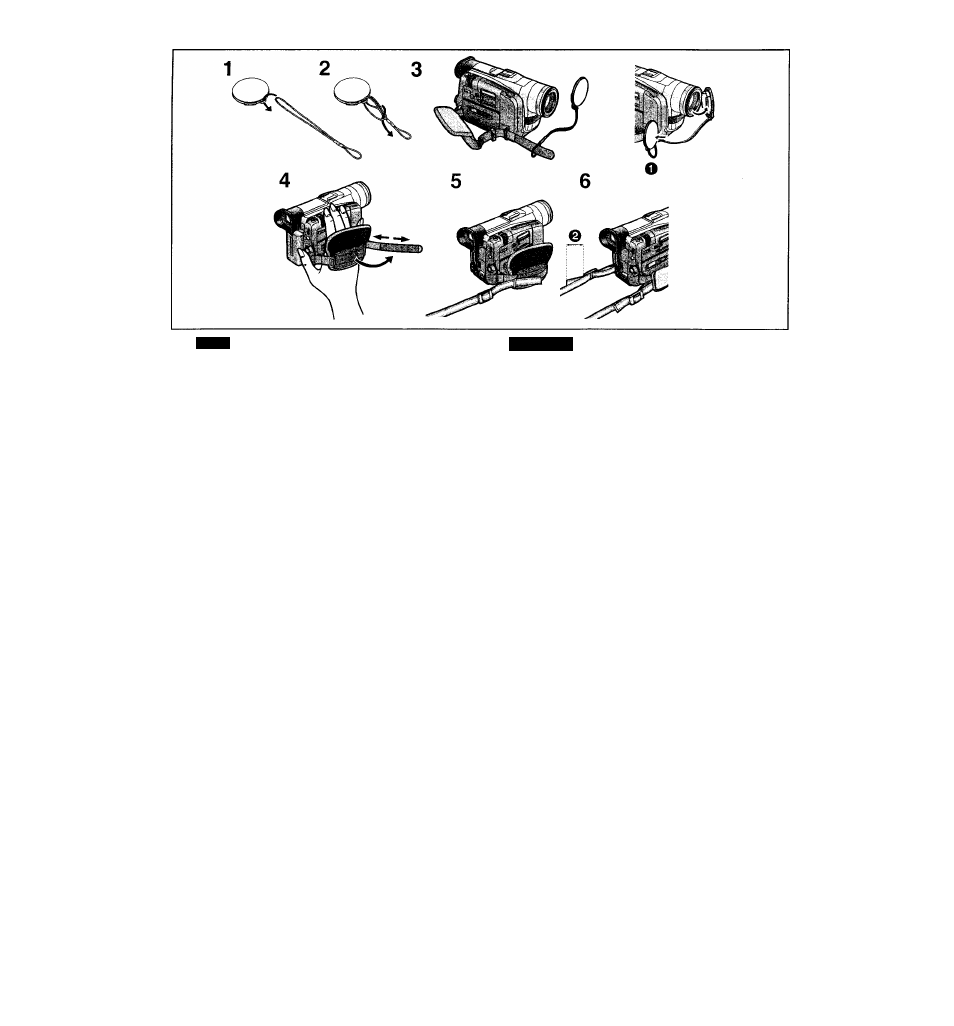

Attaching the Lens Cap
1
Pass the longer loop of the Lens Cap Cord
through the attached eye on the Lens Cap.
2
Then pass the shorter loop of the Lens Cap
Cord through the centre of the longer loop and
pull tight.
3
Attach the shorter loop to the Grip Belt.
•You can hook the removed Lens Cap onto the Grip Belt. O
(When not actually recording, al\A/ays attach the Lens Cap to
the Lens to protect it.)
Note:
Do not leave the Lens exposed to direct sunlight, as it could
bundle the light beams and seriously heat-damage the CCD-
Sensor.
Adjusting the Grip Beit
You can adjust the Grip Belt to the size of your hand.
4
Pass your hand through the Grip Belt and
adjust its length. Fold back the end of the r
Belt to securely fasten the velcro tape closu.
Attaching the Shoulder Strap
Before you go recording outside, we recommend that you
attach the Shoulder Strap to prevent the Movie Camera from
dropping accidentally.
5
Pull the end of the Shoulder Strap through the
Shoulder Strap Holder on the Movie Camera.
D Fold the end of the Shoulder Strap back, pull it
first through the loop and then the Shoulder
Strap Length Adjuster.
Pull it out more than 2 cm
o
from the Shoulder Strap
Length Adjuster so that it cannot slip off.
-28-
